SDO HMI 2014-09-24 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.87 | 69.39 | 9.31 | 37.58 | 8.53 | 287.93 | 22.92 | 272.84 | 0.3980 | -262.7 | -324.7 | |
|
previous
or next observation for the same group /

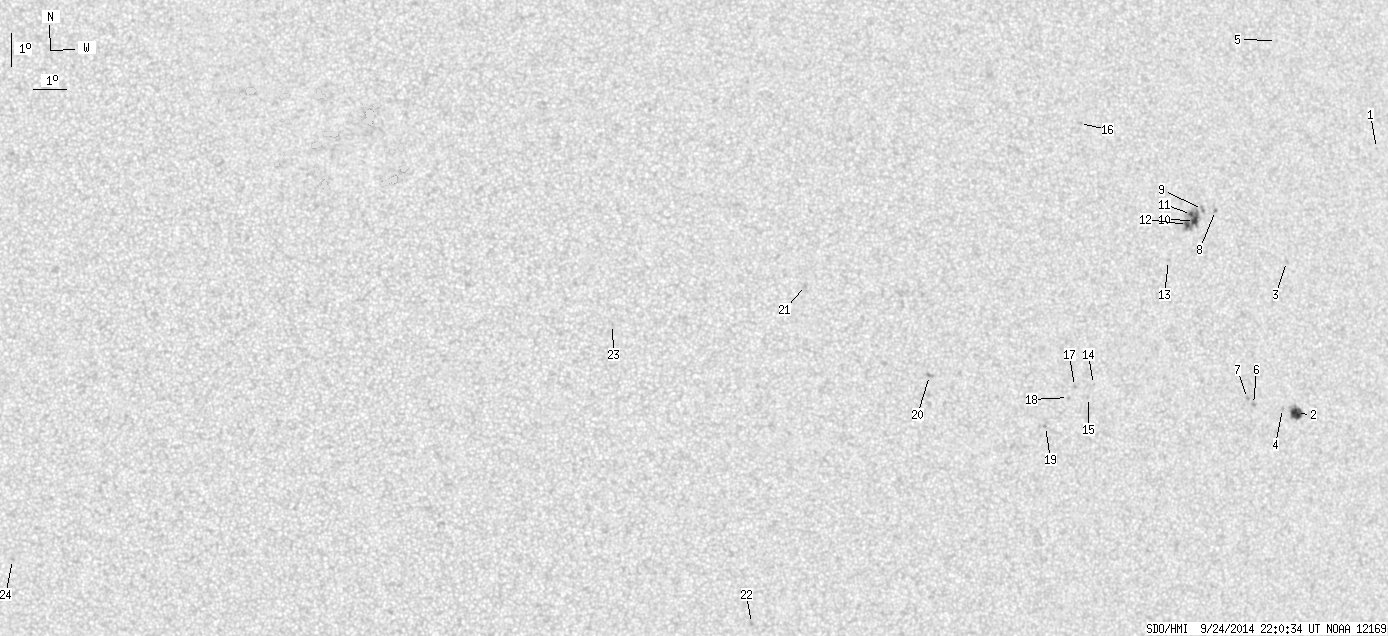

back to the solar disc SDO HMI 2014-09-24 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.41 | 12.91 | 295.95 | 30.94 | 283.47 | 0.5173 | -686.0 | -582.8 | |
| 9.10 | 14.49 | 5.08 | 8.08 | 5.11 | 292.44 | 27.43 | 267.63 | 0.4612 | -932.2 | -674.3 | |
| 0.00 | 2.12 | 0.00 | 1.18 | 9.70 | 292.42 | 27.41 | 277.63 | 0.4597 | -738.0 | -533.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 5.29 | 291.98 | 26.97 | 267.92 | 0.4537 | -831.0 | -661.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 16.38 | 292.89 | 27.88 | 291.50 | 0.4842 | -665.0 | -653.3 | |
| 0.00 | 2.03 | 0.00 | 1.12 | 5.47 | 291.01 | 26.00 | 268.13 | 0.4384 | -1027.0 | -817.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 5.66 | 290.81 | 25.80 | 268.53 | 0.4351 | -697.0 | -656.8 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 11.36 | 290.15 | 25.14 | 281.87 | 0.4274 | -790.0 | -671.6 | |
| 0.00 | 2.65 | 0.00 | 1.45 | 11.41 | 289.71 | 24.70 | 282.14 | 0.4208 | -868.0 | -671.4 | |
| 3.71 | 25.90 | 2.02 | 14.08 | 11.09 | 289.41 | 24.40 | 281.48 | 0.4155 | -1057.7 | -768.3 | |
| 1.41 | -10.00 | 0.77 | -10.00 | 11.28 | 289.33 | 24.32 | 281.95 | 0.4146 | -1053.9 | 999999 | |
| 2.65 | -10.00 | 1.44 | -10.00 | 10.99 | 289.17 | 24.16 | 281.29 | 0.4114 | -1102.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 9.94 | 288.45 | 23.44 | 278.90 | 0.3982 | 487.0 | 396.7 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 6.33 | 285.77 | 20.76 | 269.40 | 0.3539 | 537.0 | 590.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 5.94 | 285.59 | 20.58 | 268.28 | 0.3514 | 741.0 | 562.8 | |
| 0.00 | 2.03 | 0.00 | 1.08 | 14.20 | 285.87 | 20.86 | 291.11 | 0.3716 | -374.0 | -384.6 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 6.29 | 285.15 | 20.15 | 269.21 | 0.3439 | 752.0 | 677.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 5.97 | 284.95 | 19.94 | 268.23 | 0.3408 | 514.0 | 501.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 5.13 | 284.18 | 19.17 | 265.51 | 0.3295 | 883.0 | 681.2 | |
| 0.00 | 2.65 | 0.00 | 1.36 | 6.80 | 280.56 | 15.55 | 270.25 | 0.2674 | 988.0 | 774.1 | |
| 0.00 | 2.83 | 0.00 | 1.43 | 9.62 | 276.79 | 11.78 | 283.54 | 0.2079 | 823.0 | 591.8 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -0.52 | 274.95 | 9.94 | 233.28 | 0.2164 | 782.0 | 723.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.56 | 270.81 | 5.80 | 285.71 | 0.1043 | 822.0 | 594.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 1.38 | 252.59 | -12.41 | 113.80 | 0.2359 | 918.0 | 689.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
