SDO HMI 2014-09-24 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 330.14 | 1699.46 | 191.81 | 987.41 | -10.98 | 239.32 | -25.69 | 125.39 | 0.5213 | 19.6 | -40.8 | |
|
previous
or next observation for the same group /

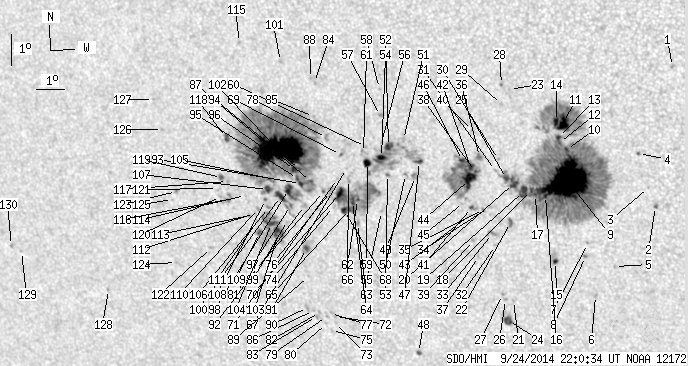

back to the solar disc SDO HMI 2014-09-24 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.80 | -7.18 | 248.16 | -16.85 | 129.79 | 0.3758 | 820.0 | 644.1 | |
| 0.35 | 1.68 | 0.19 | 0.92 | -11.59 | 247.39 | -17.62 | 136.54 | 0.4330 | 854.8 | 701.6 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -11.00 | 247.20 | -17.81 | 135.26 | 0.4284 | 568.0 | 503.2 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -9.94 | 246.94 | -18.07 | 133.03 | 0.4196 | -615.0 | -572.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -13.56 | 245.90 | -19.10 | 137.27 | 0.4709 | 740.0 | 526.1 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -14.53 | 245.19 | -19.82 | 137.62 | 0.4889 | 617.0 | 516.6 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -12.86 | 245.08 | -19.93 | 135.01 | 0.4720 | 542.0 | 448.2 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -13.28 | 244.98 | -20.03 | 135.50 | 0.4776 | -848.0 | -660.1 | |
| 95.19 | 665.70 | 52.96 | 370.17 | -10.88 | 244.58 | -20.43 | 131.13 | 0.4569 | 1448.5 | 464.6 | |
| 1.77 | -9.00 | 0.98 | -9.00 | -9.90 | 244.62 | -20.39 | 129.51 | 0.4468 | 911.2 | 999999 | |
| 13.79 | -9.00 | 7.60 | -9.00 | -9.06 | 244.57 | -20.44 | 127.94 | 0.4391 | 1335.5 | 999999 | |
| 1.15 | -9.00 | 0.64 | -9.00 | -9.69 | 244.40 | -20.61 | 128.84 | 0.4473 | 819.2 | 999999 | |
| 1.86 | -9.00 | 1.03 | -9.00 | -9.54 | 244.38 | -20.63 | 128.54 | 0.4460 | 872.9 | 999999 | |
| 4.07 | -9.00 | 2.24 | -9.00 | -9.04 | 244.35 | -20.66 | 127.60 | 0.4417 | 1081.9 | 999999 | |
| 1.68 | 6.54 | 0.95 | 3.71 | -13.48 | 243.97 | -21.04 | 134.39 | 0.4906 | -698.3 | -490.9 | |
| 1.86 | -9.00 | 1.04 | -9.00 | -11.39 | 243.82 | -21.19 | 130.92 | 0.4709 | 790.2 | 999999 | |
| 0.27 | -9.00 | 0.15 | -9.00 | -11.37 | 243.49 | -21.52 | 130.46 | 0.4745 | 755.7 | 999999 | |
| 1.50 | -9.00 | 0.84 | -9.00 | -11.25 | 243.37 | -21.64 | 130.10 | 0.4748 | 818.2 | 999999 | |
| 6.81 | -9.00 | 3.83 | -9.00 | -11.30 | 243.10 | -21.91 | 129.82 | 0.4783 | 802.8 | 999999 | |
| 5.39 | -9.00 | 3.04 | -9.00 | -11.06 | 242.79 | -22.22 | 129.03 | 0.4797 | 874.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.81 | 242.43 | -22.58 | 134.30 | 0.5208 | 595.0 | 555.2 | |
| 0.00 | 3.80 | 0.00 | 2.16 | -12.30 | 242.58 | -22.43 | 130.76 | 0.4941 | 854.0 | 694.3 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -8.11 | 242.87 | -22.14 | 123.98 | 0.4519 | 797.0 | 684.7 | |
| 4.33 | 9.63 | 2.53 | 5.62 | -15.47 | 242.18 | -22.83 | 134.92 | 0.5301 | 878.3 | 595.6 | |
| 1.94 | -9.00 | 1.10 | -9.00 | -10.91 | 242.57 | -22.44 | 128.51 | 0.4809 | 701.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -14.79 | 242.16 | -22.85 | 133.94 | 0.5234 | 591.0 | 486.1 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -14.63 | 242.08 | -22.93 | 133.61 | 0.5228 | 723.0 | 627.2 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -7.96 | 242.61 | -22.40 | 123.41 | 0.4539 | 785.0 | 614.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -8.59 | 242.57 | -22.43 | 124.50 | 0.4598 | 594.0 | 388.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.32 | 242.35 | -22.66 | 127.26 | 0.4781 | -549.0 | -279.8 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.67 | 242.22 | -22.78 | 127.69 | 0.4829 | 475.0 | 338.1 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -13.06 | 242.01 | -23.00 | 131.22 | 0.5080 | 624.0 | 483.4 | |
| 0.00 | 5.92 | 0.00 | 3.39 | -12.68 | 241.94 | -23.06 | 130.56 | 0.5051 | 799.0 | 587.3 | |
| 0.00 | 2.74 | 0.00 | 1.56 | -11.86 | 241.89 | -23.12 | 129.20 | 0.4979 | 718.0 | 586.5 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -11.93 | 241.72 | -23.29 | 129.11 | 0.5006 | 879.0 | 739.3 | |
| 0.00 | 4.07 | 0.00 | 2.30 | -10.26 | 241.73 | -23.28 | 126.39 | 0.4852 | 981.0 | 827.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -13.45 | 241.40 | -23.61 | 131.04 | 0.5186 | 423.0 | 352.8 | |
| 0.62 | 84.14 | 0.35 | 48.04 | -10.74 | 241.55 | -23.46 | 126.99 | 0.4916 | 1099.0 | 235.1 | |
| 0.00 | 1.77 | 0.00 | 1.02 | -12.94 | 241.28 | -23.73 | 130.14 | 0.5151 | 655.0 | 503.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -9.45 | 241.56 | -23.45 | 124.81 | 0.4802 | 619.0 | 538.1 | |
| 0.71 | 3.54 | 0.41 | 2.03 | -11.89 | 241.32 | -23.69 | 128.56 | 0.5049 | 827.1 | 725.9 | |
| 3.71 | -38.00 | 2.11 | -38.00 | -10.59 | 241.40 | -23.61 | 126.56 | 0.4921 | 1046.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -12.11 | 241.26 | -23.75 | 128.85 | 0.5076 | 424.0 | 416.6 | |
| 11.84 | -38.00 | 6.75 | -38.00 | -11.00 | 241.33 | -23.68 | 127.15 | 0.4966 | 968.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -11.74 | 241.06 | -23.95 | 128.03 | 0.5065 | 206.0 | 270.8 | |
| 1.77 | -38.00 | 1.01 | -38.00 | -10.41 | 241.15 | -23.86 | 125.97 | 0.4936 | 697.0 | 999999 | |
| 2.12 | 76.27 | 1.22 | 44.31 | -10.52 | 239.69 | -25.32 | 124.53 | 0.5124 | 523.0 | -493.3 | |
| 0.97 | 2.39 | 0.59 | 1.44 | -16.68 | 238.92 | -26.09 | 132.77 | 0.5759 | -844.7 | -684.1 | |
| 0.00 | 5.48 | 0.00 | 3.17 | -11.00 | 239.51 | -25.50 | 125.11 | 0.5187 | 676.0 | 571.4 | |
| 0.00 | 1.86 | 0.00 | 1.08 | -10.96 | 239.17 | -25.84 | 124.69 | 0.5224 | 430.0 | 331.8 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -9.85 | 239.21 | -25.80 | 122.93 | 0.5130 | -761.0 | -708.4 | |
| 4.51 | -47.00 | 2.61 | -47.00 | -10.10 | 238.67 | -26.34 | 122.79 | 0.5216 | -1091.4 | 999999 | |
| 0.44 | 1.68 | 0.26 | 0.98 | -10.99 | 238.56 | -26.45 | 124.10 | 0.5302 | 385.8 | 165.1 | |
| 3.27 | -47.00 | 1.90 | -47.00 | -10.46 | 238.40 | -26.61 | 123.10 | 0.5279 | -1046.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -12.18 | 238.22 | -26.78 | 125.61 | 0.5440 | 482.0 | 360.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.99 | 238.44 | -26.56 | 122.38 | 0.5236 | -686.0 | -593.7 | |
| 0.00 | 1.68 | 0.00 | 0.97 | -9.14 | 238.48 | -26.53 | 121.02 | 0.5165 | -961.0 | -797.0 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.30 | 238.52 | -26.49 | 119.62 | 0.5098 | -742.0 | -609.9 | |
| 4.42 | -47.00 | 2.59 | -47.00 | -10.65 | 237.90 | -27.11 | 122.91 | 0.5355 | -935.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.15 | 237.88 | -27.13 | 122.08 | 0.5318 | -686.0 | -545.8 | |
| 0.00 | 3.27 | 0.00 | 1.91 | -10.34 | 237.80 | -27.21 | 122.31 | 0.5344 | -766.0 | -643.7 | |
| 0.80 | 90.24 | 0.47 | 53.47 | -11.84 | 237.43 | -27.58 | 124.31 | 0.5507 | -1073.7 | -485.5 | |
| 0.00 | 2.21 | 0.00 | 1.32 | -12.61 | 237.34 | -27.67 | 125.38 | 0.5579 | -771.0 | -684.4 | |
| 3.01 | -62.00 | 1.78 | -62.00 | -11.92 | 237.25 | -27.76 | 124.25 | 0.5535 | -1091.6 | 999999 | |
| 1.86 | -62.00 | 1.11 | -62.00 | -12.18 | 237.12 | -27.89 | 124.51 | 0.5571 | -1004.4 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.88 | -11.22 | 237.19 | -27.82 | 123.12 | 0.5488 | -727.0 | -706.5 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -10.88 | 237.15 | -27.86 | 122.56 | 0.5465 | -810.0 | -621.4 | |
| 2.83 | -62.00 | 1.69 | -62.00 | -12.22 | 236.94 | -28.07 | 124.41 | 0.5596 | -953.2 | 999999 | |
| 0.35 | 3.36 | 0.21 | 1.98 | -10.45 | 236.99 | -28.02 | 121.72 | 0.5452 | -673.2 | -401.2 | |
| 5.57 | -62.00 | 3.31 | -62.00 | -11.69 | 236.82 | -28.19 | 123.49 | 0.5568 | 611.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -11.22 | 236.81 | -28.20 | 122.75 | 0.5533 | -728.0 | -609.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -15.67 | 236.15 | -28.86 | 128.57 | 0.5967 | 766.0 | 611.2 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -15.87 | 236.11 | -28.89 | 128.81 | 0.5987 | 643.0 | 576.3 | |
| 0.00 | 1.68 | 0.00 | 1.00 | -12.12 | 236.56 | -28.45 | 123.90 | 0.5632 | 156.0 | 80.1 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -16.14 | 235.93 | -29.08 | 129.00 | 0.6030 | 685.0 | 433.1 | |
| 0.00 | 5.48 | 0.00 | 3.27 | -11.64 | 236.51 | -28.50 | 123.13 | 0.5602 | -173.0 | -220.5 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -15.58 | 235.98 | -29.03 | 128.30 | 0.5978 | 634.0 | 656.8 | |
| 0.00 | 3.09 | 0.00 | 1.83 | -9.94 | 236.55 | -28.46 | 120.52 | 0.5469 | -795.0 | -683.0 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -15.69 | 235.82 | -29.19 | 128.29 | 0.6004 | 764.0 | 599.5 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -15.92 | 235.78 | -29.23 | 128.57 | 0.6027 | 543.0 | 397.1 | |
| 0.44 | 1.33 | 0.26 | 0.79 | -11.66 | 236.27 | -28.74 | 122.93 | 0.5633 | -559.0 | -574.4 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -15.58 | 235.59 | -29.42 | 127.92 | 0.6020 | 774.0 | 696.4 | |
| 0.00 | 1.86 | 0.00 | 1.15 | -15.71 | 235.46 | -29.55 | 127.98 | 0.6046 | 663.0 | 565.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -8.24 | 236.29 | -28.72 | 117.52 | 0.5383 | -721.0 | -520.1 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -9.31 | 236.16 | -28.85 | 119.16 | 0.5473 | 398.0 | 142.3 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -15.52 | 235.38 | -29.63 | 127.65 | 0.6039 | 558.0 | 512.7 | |
| 0.97 | 545.32 | 0.58 | 328.89 | -11.37 | 235.84 | -29.17 | 122.10 | 0.5662 | -845.9 | -467.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -8.12 | 236.16 | -28.85 | 117.22 | 0.5392 | -687.0 | -605.1 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -14.43 | 235.37 | -29.64 | 126.13 | 0.5952 | -787.0 | -702.7 | |
| 0.00 | 3.54 | 0.00 | 2.20 | -15.44 | 235.18 | -29.83 | 127.35 | 0.6054 | 534.0 | 407.1 | |
| 2.12 | 11.49 | 1.30 | 7.01 | -13.52 | 235.43 | -29.58 | 124.91 | 0.5875 | -726.9 | -204.1 | |
| 0.00 | 2.47 | 0.00 | 1.50 | -12.15 | 235.54 | -29.47 | 123.00 | 0.5757 | -397.0 | -325.5 | |
| 1.77 | -87.00 | 1.06 | -87.00 | -11.45 | 235.48 | -29.53 | 121.91 | 0.5712 | -919.8 | 999999 | |
| 0.27 | -87.00 | 0.16 | -87.00 | -11.01 | 235.50 | -29.51 | 121.25 | 0.5678 | -871.0 | 999999 | |
| 1.33 | -87.00 | 0.80 | -87.00 | -11.30 | 235.39 | -29.62 | 121.60 | 0.5712 | -808.9 | 999999 | |
| 3.80 | -87.00 | 2.29 | -87.00 | -11.02 | 235.32 | -29.69 | 121.11 | 0.5700 | -869.3 | 999999 | |
| 0.53 | -87.00 | 0.32 | -87.00 | -12.18 | 235.04 | -29.97 | 122.61 | 0.5819 | -771.5 | 999999 | |
| 4.77 | -87.00 | 2.89 | -87.00 | -11.67 | 235.03 | -29.98 | 121.85 | 0.5782 | -1015.2 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -12.66 | 234.87 | -30.14 | 123.17 | 0.5875 | -147.0 | -207.8 | |
| 5.57 | -87.00 | 3.39 | -87.00 | -11.91 | 234.72 | -30.29 | 121.93 | 0.5838 | -844.0 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.20 | -7.65 | 235.15 | -29.86 | 115.63 | 0.5494 | -698.0 | -542.1 | |
| 96.60 | -87.00 | 58.23 | -87.00 | -10.42 | 234.82 | -30.19 | 119.77 | 0.5720 | -1221.1 | 999999 | |
| 6.63 | 60.10 | 4.08 | 37.05 | -13.07 | 234.49 | -30.52 | 123.43 | 0.5949 | -902.3 | -511.7 | |
| 4.86 | -103.00 | 2.99 | -103.00 | -12.80 | 234.28 | -30.73 | 122.85 | 0.5954 | -848.6 | 999999 | |
| 0.97 | -87.00 | 0.59 | -87.00 | -11.36 | 234.39 | -30.62 | 120.84 | 0.5838 | -713.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.08 | -12.29 | 234.24 | -30.77 | 122.09 | 0.5922 | -912.0 | -760.7 | |
| 3.01 | -87.00 | 1.84 | -87.00 | -11.72 | 234.28 | -30.73 | 121.28 | 0.5877 | -801.8 | 999999 | |
| 0.44 | 1.24 | 0.27 | 0.76 | -12.04 | 234.16 | -30.85 | 121.66 | 0.5913 | -695.4 | -544.8 | |
| 1.50 | -103.00 | 0.93 | -103.00 | -13.12 | 233.80 | -31.21 | 122.91 | 0.6033 | -660.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.09 | -12.35 | 233.87 | -31.14 | 121.86 | 0.5970 | -617.0 | -538.6 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -12.73 | 233.78 | -31.23 | 122.34 | 0.6008 | -127.0 | -169.0 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -12.52 | 233.70 | -31.31 | 121.97 | 0.6001 | -415.0 | -321.2 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -12.59 | 233.51 | -31.50 | 121.92 | 0.6029 | -451.0 | -350.1 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -11.96 | 233.45 | -31.56 | 120.96 | 0.5992 | -621.0 | -534.2 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -7.15 | 233.74 | -31.26 | 113.76 | 0.5648 | -810.0 | -606.1 | |
| 0.00 | 5.48 | 0.00 | 3.41 | -12.13 | 232.78 | -32.23 | 120.67 | 0.6084 | -716.0 | -621.4 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -11.56 | 232.86 | -32.15 | 119.89 | 0.6037 | -897.0 | -608.3 | |
| 2.56 | 4.42 | 1.57 | 2.71 | -10.16 | 232.99 | -32.02 | 117.93 | 0.5929 | -728.0 | -543.8 | |
| 1.24 | 2.83 | 0.77 | 1.76 | -11.44 | 232.65 | -32.36 | 119.57 | 0.6054 | -837.2 | -629.5 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -12.05 | 232.53 | -32.48 | 120.36 | 0.6108 | -453.0 | -405.5 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -11.81 | 232.46 | -32.55 | 119.95 | 0.6101 | -277.0 | -315.4 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -13.72 | 231.95 | -33.06 | 122.26 | 0.6289 | -605.0 | -462.4 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -12.01 | 230.92 | -34.09 | 119.09 | 0.6296 | -646.0 | -546.9 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -14.30 | 230.55 | -34.46 | 121.97 | 0.6487 | -676.0 | -518.4 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.27 | 230.73 | -34.28 | 119.33 | 0.6335 | -377.0 | -323.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -10.07 | 230.66 | -34.35 | 116.12 | 0.6210 | -597.0 | -486.3 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -9.15 | 230.44 | -34.57 | 114.61 | 0.6185 | -497.0 | -413.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -15.38 | 227.72 | -37.29 | 121.39 | 0.6866 | -662.0 | -637.9 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -14.41 | 224.44 | -40.57 | 118.11 | 0.7165 | -606.0 | -493.8 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -14.25 | 224.07 | -40.94 | 117.69 | 0.7196 | -612.0 | -538.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
