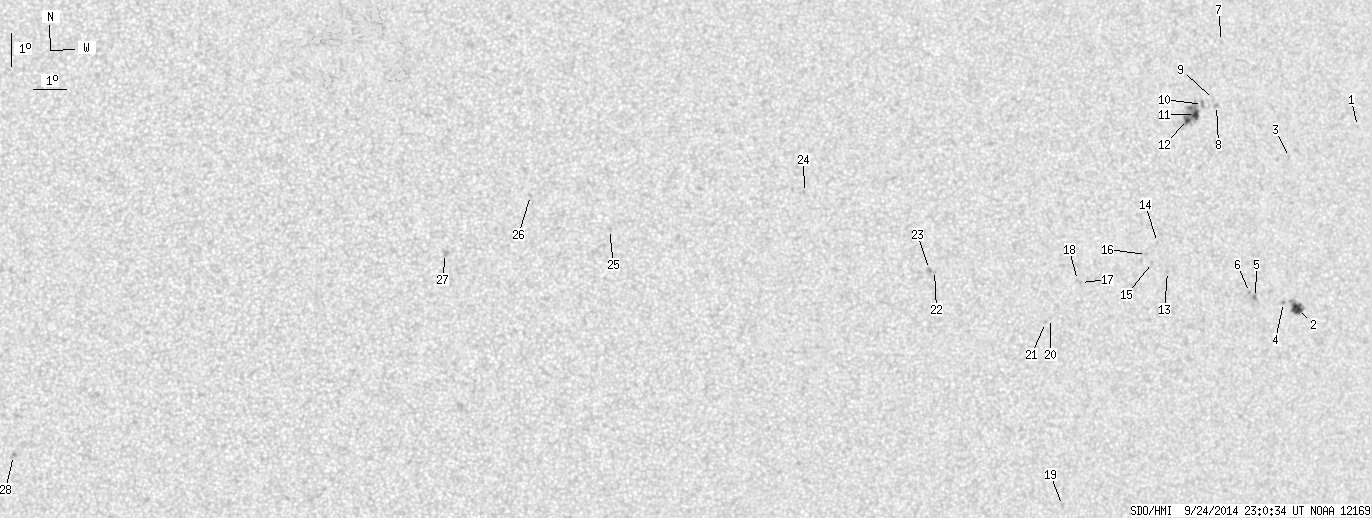

SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.80 | 75.38 | 9.30 | 40.80 | 8.20 | 286.43 | 21.97 | 272.05 | 0.3852 | -99.7 | -202.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.46 | 10.45 | 294.98 | 30.52 | 278.76 | 0.5074 | -699.0 | -576.7 | |
| 8.31 | 14.14 | 4.66 | 7.93 | 5.11 | 292.47 | 28.01 | 267.73 | 0.4701 | -908.2 | -652.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 9.66 | 292.52 | 28.06 | 277.46 | 0.4696 | -684.0 | -489.8 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 5.32 | 292.00 | 27.55 | 268.09 | 0.4626 | -850.0 | -719.3 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 5.52 | 291.06 | 26.60 | 268.36 | 0.4478 | -854.0 | -708.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 5.68 | 290.87 | 26.41 | 268.69 | 0.4446 | -784.0 | -677.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.28 | 290.55 | 26.09 | 285.86 | 0.4469 | -728.0 | -583.2 | |
| 0.00 | 2.30 | 0.00 | 1.26 | 11.36 | 290.17 | 25.72 | 281.69 | 0.4362 | -779.0 | -576.4 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 11.54 | 290.09 | 25.63 | 282.14 | 0.4353 | -640.0 | -532.6 | |
| 0.00 | 2.47 | 0.00 | 1.36 | 11.41 | 289.70 | 25.24 | 281.96 | 0.4291 | -826.0 | -611.8 | |
| 4.95 | 25.72 | 2.71 | 14.04 | 11.12 | 289.44 | 24.98 | 281.37 | 0.4244 | -1004.4 | -790.6 | |
| 3.54 | -11.00 | 1.93 | -11.00 | 10.99 | 289.15 | 24.70 | 281.13 | 0.4198 | -1061.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 6.46 | 288.17 | 23.71 | 270.14 | 0.4013 | 762.0 | 626.6 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 7.34 | 287.88 | 23.43 | 272.35 | 0.3963 | 817.0 | 664.5 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 6.75 | 287.69 | 23.23 | 270.83 | 0.3934 | 702.0 | 602.1 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 7.00 | 287.50 | 23.04 | 271.46 | 0.3903 | 621.0 | 473.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 6.26 | 285.31 | 20.85 | 269.23 | 0.3554 | 761.0 | 605.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 6.32 | 285.22 | 20.76 | 269.40 | 0.3538 | 900.0 | 646.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -0.44 | 284.60 | 20.14 | 250.52 | 0.3668 | 748.0 | 587.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 5.22 | 284.30 | 19.85 | 266.00 | 0.3404 | 618.0 | 479.5 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 5.11 | 284.14 | 19.68 | 265.62 | 0.3379 | 900.0 | 659.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 6.80 | 280.67 | 16.21 | 270.34 | 0.2785 | 427.0 | 558.5 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 6.84 | 280.51 | 16.06 | 270.45 | 0.2759 | 960.0 | 810.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 9.27 | 276.69 | 12.23 | 281.53 | 0.2143 | 835.0 | 673.0 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 8.28 | 270.65 | 6.19 | 282.34 | 0.1098 | 809.0 | 660.8 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 9.33 | 268.25 | 3.80 | 302.26 | 0.0776 | 853.0 | 590.3 | |
| 0.00 | 3.62 | 0.00 | 1.80 | 7.61 | 265.65 | 1.20 | 297.69 | 0.0235 | 920.0 | 732.1 | |
| 0.00 | 2.30 | 0.00 | 1.17 | 1.39 | 252.56 | -11.89 | 114.71 | 0.2278 | 796.0 | 716.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
