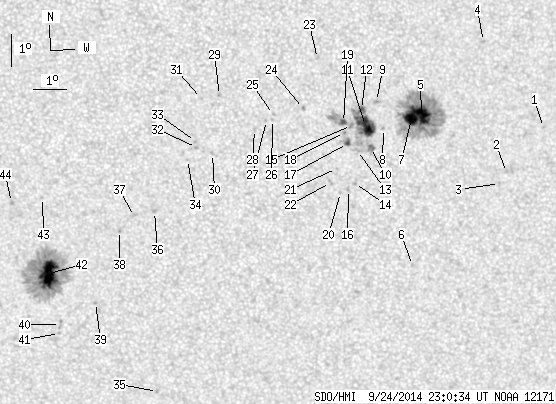

SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.47 | 464.15 | 46.14 | 242.72 | -10.76 | 265.35 | 0.90 | 184.83 | 0.3188 | 326.2 | 98.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.06 | 274.24 | 9.78 | 211.41 | 0.3233 | 696.0 | 523.1 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -10.45 | 273.13 | 8.68 | 206.44 | 0.3346 | 709.0 | 564.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.80 | 272.93 | 8.47 | 205.44 | 0.3382 | 728.0 | 585.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -6.35 | 272.34 | 7.89 | 210.71 | 0.2682 | 732.0 | 566.0 | |
| 20.33 | 165.38 | 10.51 | 85.55 | -8.59 | 270.48 | 6.02 | 201.18 | 0.2885 | 1294.5 | 401.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -13.36 | 270.30 | 5.84 | 195.92 | 0.3625 | 724.0 | 602.0 | |
| 13.70 | -5.00 | 7.09 | -5.00 | -8.71 | 270.18 | 5.72 | 200.06 | 0.2886 | 1279.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.01 | 269.33 | 4.87 | 196.95 | 0.2889 | 909.0 | 830.8 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -8.17 | 269.10 | 4.65 | 197.08 | 0.2742 | 951.0 | 768.3 | |
| 0.00 | 6.98 | 0.00 | 3.62 | -9.60 | 268.94 | 4.48 | 195.12 | 0.2966 | 930.0 | 703.8 | |
| 22.27 | 50.03 | 11.51 | 25.84 | -8.91 | 268.78 | 4.32 | 195.22 | 0.2847 | 1138.7 | 681.5 | |
| 1.94 | -11.00 | 1.00 | -11.00 | -8.41 | 268.65 | 4.19 | 195.25 | 0.2761 | 1165.4 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -9.69 | 268.54 | 4.08 | 193.76 | 0.2964 | 775.0 | 574.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.73 | 268.46 | 4.00 | 192.72 | 0.3130 | 622.0 | 593.9 | |
| 0.00 | 2.92 | 0.00 | 1.51 | -8.91 | 268.35 | 3.89 | 193.77 | 0.2829 | 905.0 | 734.9 | |
| 0.00 | 1.94 | 0.00 | 1.01 | -10.92 | 268.28 | 3.82 | 192.03 | 0.3154 | 849.0 | 654.2 | |
| 1.68 | 6.01 | 0.87 | 3.11 | -9.47 | 268.23 | 3.78 | 192.93 | 0.2916 | 951.5 | 639.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.12 | 268.14 | 3.68 | 192.88 | 0.2856 | 923.0 | 753.5 | |
| 1.68 | 14.05 | 0.87 | 7.24 | -8.81 | 268.10 | 3.65 | 193.01 | 0.2804 | 1123.6 | 620.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -11.01 | 268.03 | 3.58 | 191.22 | 0.3161 | 710.0 | 551.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.25 | 267.90 | 3.45 | 191.30 | 0.3033 | 639.0 | 473.6 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -10.69 | 267.72 | 3.27 | 190.46 | 0.3099 | 760.0 | 648.7 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -6.81 | 267.30 | 2.84 | 191.68 | 0.2445 | 884.0 | 744.5 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -8.36 | 266.88 | 2.43 | 188.99 | 0.2691 | -823.0 | -674.4 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.55 | 265.97 | 1.51 | 185.58 | 0.2702 | -736.0 | -548.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.70 | 265.94 | 1.48 | 185.41 | 0.2728 | -672.0 | -487.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.73 | 265.76 | 1.30 | 184.74 | 0.2730 | -815.0 | -570.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.01 | 265.39 | 0.94 | 183.36 | 0.2773 | -849.0 | -531.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -7.95 | 264.33 | -0.13 | 179.52 | 0.2589 | 832.0 | 722.7 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -9.76 | 264.12 | -0.34 | 178.83 | 0.2895 | -795.0 | -675.7 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.04 | 263.78 | -0.67 | 177.43 | 0.2607 | 756.0 | 597.0 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.57 | 263.63 | -0.83 | 177.13 | 0.2866 | -973.0 | -785.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.38 | 263.60 | -0.86 | 176.99 | 0.2835 | -865.0 | -733.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.95 | 263.35 | -1.11 | 176.27 | 0.2932 | -721.0 | -556.1 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -17.42 | 262.36 | -2.10 | 175.17 | 0.4163 | 870.0 | 683.9 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -11.59 | 262.33 | -2.13 | 173.49 | 0.3220 | -875.0 | -702.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.76 | 261.71 | -2.74 | 171.70 | 0.3260 | -690.0 | -520.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -12.20 | 261.25 | -3.21 | 170.54 | 0.3345 | 819.0 | 697.2 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -14.52 | 260.47 | -3.99 | 169.58 | 0.3740 | -756.0 | -633.5 | |
| 0.00 | 3.18 | 0.00 | 1.71 | -15.24 | 259.36 | -5.10 | 167.21 | 0.3891 | 766.0 | 666.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -15.53 | 259.32 | -5.14 | 167.29 | 0.3938 | 683.0 | 444.7 | |
| 26.87 | 169.62 | 14.29 | 90.21 | -13.60 | 259.03 | -5.43 | 165.31 | 0.3645 | -1294.9 | -400.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.18 | 258.89 | -5.56 | 163.00 | 0.3268 | -742.0 | -587.7 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.35 | 257.93 | -6.52 | 160.46 | 0.3344 | -991.0 | -897.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
