SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.71 | 0.00 | 12.77 | -15.35 | 247.31 | -17.14 | 142.95 | 0.4729 | -387.5 | -490.4 | |
|
previous
or next observation for the same group /

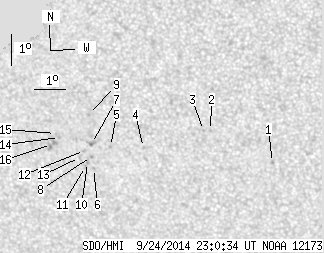

back to the solar disc SDO HMI 2014-09-24 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.82 | -15.68 | 252.87 | -11.58 | 153.21 | 0.4308 | 877.0 | 623.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -14.69 | 250.95 | -13.50 | 148.33 | 0.4320 | 715.0 | 589.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -14.70 | 250.73 | -13.73 | 147.92 | 0.4339 | 787.0 | 627.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.31 | 248.75 | -15.70 | 145.16 | 0.4588 | 713.0 | 567.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -15.32 | 247.68 | -16.78 | 143.38 | 0.4685 | -880.0 | -719.0 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -16.06 | 247.06 | -17.40 | 143.34 | 0.4832 | -760.0 | -586.7 | |
| 0.00 | 3.62 | 0.00 | 2.04 | -15.24 | 247.07 | -17.39 | 142.29 | 0.4733 | -957.0 | -765.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -15.67 | 247.03 | -17.43 | 142.79 | 0.4788 | -851.0 | -744.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.30 | 247.05 | -17.41 | 140.98 | 0.4623 | -766.0 | -649.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -15.87 | 246.88 | -17.58 | 142.82 | 0.4826 | -799.0 | -713.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -16.00 | 246.80 | -17.65 | 142.87 | 0.4849 | -633.0 | -446.1 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -15.48 | 246.82 | -17.64 | 142.21 | 0.4785 | -718.0 | -608.2 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -15.71 | 246.63 | -17.82 | 142.23 | 0.4830 | -697.0 | -587.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -15.09 | 246.03 | -18.42 | 140.47 | 0.4814 | -815.0 | -701.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -14.96 | 245.91 | -18.54 | 140.12 | 0.4811 | -674.0 | -541.8 | |
| 0.00 | 5.39 | 0.00 | 3.05 | -15.32 | 245.75 | -18.71 | 140.36 | 0.4869 | -742.0 | -784.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
