SDO HMI 2014-09-25 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.34 | 464.83 | 44.04 | 243.13 | -10.76 | 265.36 | 1.45 | 186.54 | 0.3200 | 284.4 | 111.7 | |
|
previous
or next observation for the same group /

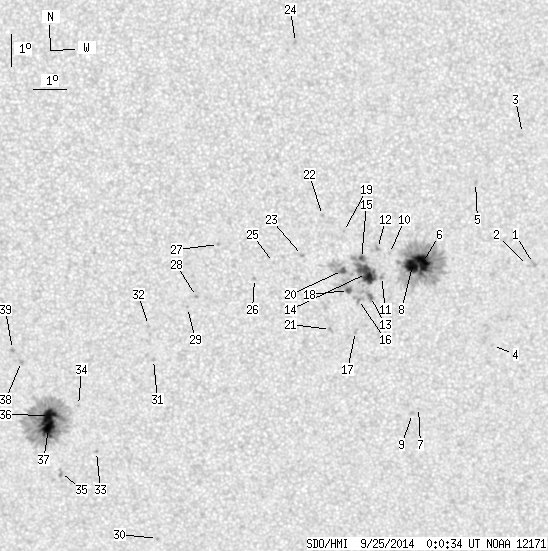

back to the solar disc SDO HMI 2014-09-25 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.27 | 0.00 | 1.71 | -8.69 | 273.93 | 10.02 | 212.65 | 0.3202 | 882.0 | 737.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -8.75 | 273.74 | 9.84 | 212.07 | 0.3194 | 548.0 | 435.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -4.66 | 273.51 | 9.60 | 219.72 | 0.2614 | 376.0 | 463.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.24 | 272.73 | 8.82 | 205.78 | 0.3473 | 665.0 | 569.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -6.14 | 272.09 | 8.19 | 212.09 | 0.2677 | 830.0 | 666.8 | |
| 14.94 | 164.78 | 7.74 | 85.34 | -8.60 | 270.51 | 6.61 | 203.01 | 0.2922 | 1344.8 | 414.1 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -13.18 | 270.49 | 6.58 | 197.97 | 0.3631 | 337.0 | 434.3 | |
| 13.35 | -6.00 | 6.91 | -6.00 | -8.68 | 270.21 | 6.30 | 201.94 | 0.2917 | 1302.1 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -13.37 | 270.30 | 6.40 | 197.35 | 0.3651 | 681.0 | 624.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.30 | 269.50 | 5.59 | 200.13 | 0.2814 | 919.0 | 704.2 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -9.01 | 269.26 | 5.36 | 198.53 | 0.2914 | 927.0 | 719.2 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -8.14 | 269.13 | 5.22 | 199.09 | 0.2768 | 946.0 | 804.3 | |
| 1.59 | 8.04 | 0.83 | 4.17 | -9.64 | 268.94 | 5.03 | 196.84 | 0.2997 | 851.9 | 680.1 | |
| 20.16 | 41.37 | 10.42 | 21.37 | -8.92 | 268.80 | 4.90 | 197.14 | 0.2875 | 1141.7 | 842.7 | |
| 1.68 | -14.00 | 0.87 | -14.00 | -8.45 | 268.65 | 4.74 | 197.10 | 0.2792 | 1204.2 | 999999 | |
| 0.00 | 6.28 | 0.00 | 3.26 | -9.73 | 268.57 | 4.66 | 195.59 | 0.2994 | 723.0 | 550.7 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -10.73 | 268.49 | 4.59 | 194.49 | 0.3153 | 592.0 | 528.8 | |
| 1.94 | 11.93 | 1.01 | 6.18 | -9.44 | 268.26 | 4.35 | 194.85 | 0.2935 | 985.0 | 572.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -7.60 | 268.09 | 4.18 | 196.04 | 0.2628 | 518.0 | 447.4 | |
| 2.39 | 16.09 | 1.23 | 8.30 | -8.81 | 268.07 | 4.16 | 194.78 | 0.2825 | 1100.2 | 602.2 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -10.66 | 267.72 | 3.82 | 192.19 | 0.3112 | 898.0 | 649.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -7.10 | 267.45 | 3.54 | 194.16 | 0.2518 | 868.0 | 668.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.33 | 266.85 | 2.94 | 190.89 | 0.2701 | -847.0 | -771.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -1.78 | 266.62 | 2.71 | 197.24 | 0.1601 | 899.0 | 758.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.55 | 265.97 | 2.06 | 187.57 | 0.2712 | -788.0 | -478.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -9.04 | 265.39 | 1.48 | 185.30 | 0.2785 | -832.0 | -628.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.98 | 264.29 | 0.39 | 181.49 | 0.2594 | 908.0 | 719.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.60 | 263.62 | -0.28 | 179.03 | 0.2868 | -946.0 | -738.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.95 | 263.35 | -0.56 | 178.12 | 0.2927 | -747.0 | -522.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.38 | 262.38 | -1.53 | 176.47 | 0.4150 | 778.0 | 689.6 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.59 | 262.30 | -1.61 | 175.07 | 0.3211 | -942.0 | -761.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.52 | 262.15 | -1.75 | 174.29 | 0.3035 | -718.0 | -585.0 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.55 | 260.50 | -3.40 | 171.10 | 0.3728 | -826.0 | -676.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.07 | 259.97 | -3.93 | 168.96 | 0.3506 | -691.0 | -509.4 | |
| 0.00 | 2.92 | 0.00 | 1.57 | -15.24 | 259.37 | -4.54 | 168.58 | 0.3871 | 822.0 | 715.7 | |
| 12.91 | 174.33 | 6.85 | 92.60 | -13.40 | 259.07 | -4.84 | 166.73 | 0.3589 | -1393.5 | -401.7 | |
| 15.38 | -36.00 | 8.18 | -36.00 | -13.82 | 259.03 | -4.88 | 166.89 | 0.3657 | -1180.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -11.68 | 258.24 | -5.67 | 163.16 | 0.3353 | -935.0 | -778.6 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.31 | 257.97 | -5.94 | 162.05 | 0.3306 | -994.0 | -875.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
