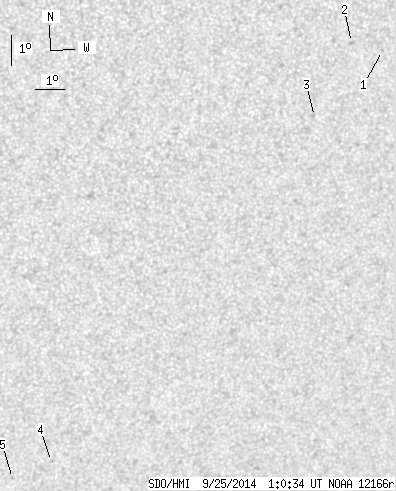

SDO HMI 2014-09-25 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.66 | 0.00 | 3.42 | -16.09 | 288.74 | 25.39 | 227.75 | 0.5756 | 593.4 | 529.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.43 | -10.87 | 293.41 | 30.05 | 239.43 | 0.5734 | 420.0 | 356.5 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -10.55 | 292.28 | 28.93 | 238.95 | 0.5572 | 689.0 | 609.3 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -12.83 | 291.24 | 27.89 | 234.52 | 0.5622 | 718.0 | 582.4 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -23.88 | 283.69 | 20.34 | 212.13 | 0.5998 | 571.0 | 488.5 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -24.42 | 282.41 | 19.06 | 210.00 | 0.5969 | 569.0 | 493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
