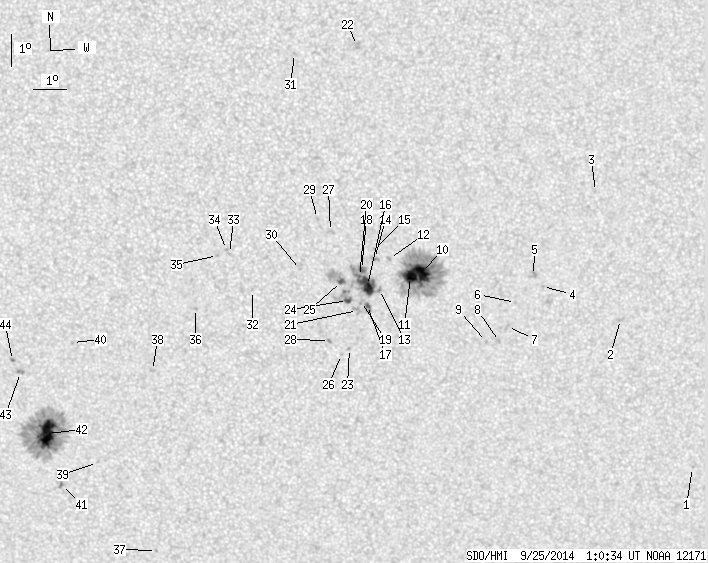

SDO HMI 2014-09-25 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.45 | 489.72 | 44.07 | 256.04 | -10.53 | 265.71 | 2.35 | 189.35 | 0.3185 | 436.3 | 123.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | -15.01 | 279.30 | 15.95 | 215.65 | 0.4571 | 582.0 | 541.0 | |
| 0.00 | 2.56 | 0.00 | 1.37 | -10.20 | 276.73 | 13.37 | 217.92 | 0.3719 | 487.0 | 380.0 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -6.18 | 275.82 | 12.46 | 223.65 | 0.3122 | 774.0 | 519.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.09 | 274.25 | 10.90 | 214.20 | 0.3336 | 743.0 | 592.2 | |
| 0.00 | 4.07 | 0.00 | 2.13 | -8.74 | 273.97 | 10.61 | 214.08 | 0.3262 | 720.0 | 701.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.58 | 273.43 | 10.08 | 211.36 | 0.3330 | 695.0 | 507.4 | |
| 0.00 | 2.48 | 0.00 | 1.30 | -10.32 | 273.21 | 9.85 | 209.65 | 0.3417 | 773.0 | 654.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.79 | 272.97 | 9.62 | 208.39 | 0.3466 | 649.0 | 516.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.78 | 272.57 | 9.21 | 207.39 | 0.3434 | 716.0 | 603.2 | |
| 18.92 | 174.00 | 9.81 | 90.22 | -8.58 | 270.51 | 7.16 | 204.75 | 0.2956 | 1285.2 | 377.1 | |
| 14.15 | -10.00 | 7.33 | -10.00 | -8.70 | 270.18 | 6.82 | 203.55 | 0.2952 | 1289.9 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -8.13 | 269.53 | 6.17 | 202.27 | 0.2821 | 740.0 | 596.0 | |
| 0.00 | 2.39 | 0.00 | 1.24 | -9.09 | 269.24 | 5.88 | 200.12 | 0.2954 | 889.0 | 727.0 | |
| 0.00 | 3.27 | 0.00 | 1.69 | -8.12 | 269.07 | 5.71 | 200.76 | 0.2792 | 728.0 | 646.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.81 | 269.06 | 5.71 | 201.16 | 0.2743 | -400.0 | -224.5 | |
| 17.33 | 43.23 | 8.97 | 22.36 | -8.96 | 268.87 | 5.51 | 199.09 | 0.2913 | 1130.3 | 835.4 | |
| 1.33 | 5.57 | 0.69 | 2.89 | -9.59 | 268.88 | 5.52 | 198.43 | 0.3013 | 914.9 | 674.5 | |
| 1.95 | -16.00 | 1.00 | -16.00 | -8.46 | 268.68 | 5.32 | 199.05 | 0.2823 | 1169.3 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -9.46 | 268.69 | 5.33 | 197.99 | 0.2983 | 858.0 | 680.3 | |
| 0.71 | -16.00 | 0.37 | -16.00 | -8.67 | 268.62 | 5.26 | 198.60 | 0.2855 | 1220.2 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.53 | -9.74 | 268.57 | 5.22 | 197.33 | 0.3022 | 592.0 | 581.3 | |
| 0.00 | 5.57 | 0.00 | 2.80 | -1.57 | 268.51 | 5.15 | 211.21 | 0.1740 | 762.0 | 592.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.93 | 268.34 | 4.99 | 195.54 | 0.3202 | 781.0 | 659.9 | |
| 2.12 | 14.68 | 1.10 | 7.60 | -9.42 | 268.26 | 4.91 | 196.66 | 0.2956 | 932.9 | 568.0 | |
| 2.30 | 16.27 | 1.19 | 8.40 | -8.82 | 268.07 | 4.71 | 196.63 | 0.2851 | 1085.4 | 555.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.12 | 268.10 | 4.75 | 194.66 | 0.3221 | 742.0 | 526.3 | |
| 0.00 | 3.45 | 0.00 | 1.77 | -7.26 | 267.72 | 4.36 | 197.08 | 0.2582 | 813.0 | 667.3 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -10.67 | 267.73 | 4.37 | 193.89 | 0.3134 | 870.0 | 735.0 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -6.86 | 267.32 | 3.97 | 196.04 | 0.2497 | 871.0 | 670.3 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -8.44 | 266.82 | 3.46 | 192.67 | 0.2735 | -738.0 | -577.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -1.79 | 266.61 | 3.25 | 200.42 | 0.1633 | 809.0 | 680.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -9.08 | 265.36 | 2.00 | 187.11 | 0.2800 | -678.0 | -596.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -7.92 | 264.66 | 1.30 | 184.99 | 0.2593 | 687.0 | 580.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -7.80 | 264.56 | 1.21 | 184.68 | 0.2571 | 914.0 | 703.7 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -7.98 | 264.29 | 0.94 | 183.58 | 0.2599 | 952.0 | 704.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.64 | 263.62 | 0.27 | 180.92 | 0.2874 | -928.0 | -751.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.42 | 262.39 | -0.96 | 177.78 | 0.4151 | 760.0 | 667.4 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -11.60 | 262.30 | -1.05 | 176.77 | 0.3205 | -831.0 | -651.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -14.55 | 260.58 | -2.78 | 172.71 | 0.3714 | -846.0 | -615.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.72 | 259.86 | -3.50 | 168.84 | 0.3110 | 522.0 | 387.7 | |
| 0.35 | 2.12 | 0.19 | 1.14 | -15.27 | 259.44 | -3.91 | 170.13 | 0.3857 | 949.2 | 666.5 | |
| 25.29 | 172.32 | 13.42 | 91.48 | -13.62 | 259.04 | -4.32 | 168.25 | 0.3607 | -1311.6 | -422.6 | |
| 0.00 | 3.27 | 0.00 | 1.72 | -11.68 | 258.24 | -5.11 | 164.73 | 0.3327 | -704.0 | -760.1 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -11.30 | 258.00 | -5.35 | 163.72 | 0.3277 | -887.0 | -761.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
