SDO HMI 2014-09-25 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 324.96 | 1717.53 | 185.56 | 979.24 | -10.94 | 239.38 | -23.43 | 127.98 | 0.4939 | -26.7 | -39.9 | |
|
previous
or next observation for the same group /

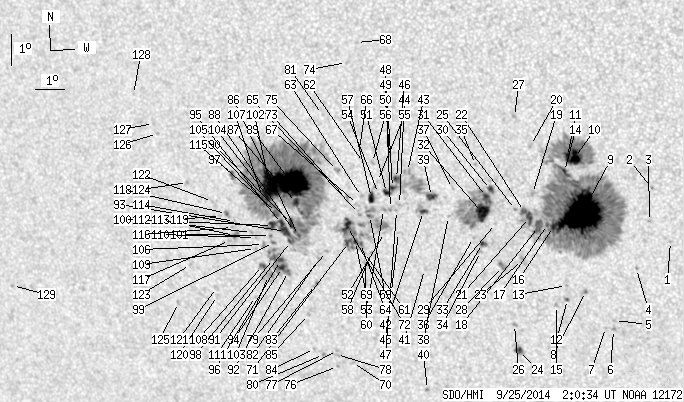

back to the solar disc SDO HMI 2014-09-25 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -11.65 | 247.48 | -15.33 | 140.60 | 0.4096 | 815.0 | 667.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -9.96 | 246.97 | -15.84 | 136.85 | 0.3948 | -644.0 | -408.9 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -11.04 | 246.84 | -15.96 | 138.46 | 0.4087 | 818.0 | 632.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -12.54 | 246.33 | -16.47 | 139.96 | 0.4320 | 732.0 | 630.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -14.24 | 245.50 | -17.31 | 141.04 | 0.4605 | 564.0 | 499.6 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -14.53 | 245.44 | -17.36 | 141.36 | 0.4646 | 617.0 | 490.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -14.48 | 245.18 | -17.62 | 140.87 | 0.4664 | 478.0 | 364.3 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -13.34 | 244.63 | -18.18 | 138.36 | 0.4587 | -831.0 | -732.1 | |
| 92.76 | 694.83 | 50.85 | 380.81 | -10.86 | 244.68 | -18.13 | 134.51 | 0.4303 | 1496.7 | 457.0 | |
| 11.67 | -9.00 | 6.34 | -9.00 | -9.11 | 244.56 | -18.25 | 131.23 | 0.4129 | 1360.8 | 999999 | |
| 4.16 | -9.00 | 2.26 | -9.00 | -9.08 | 244.33 | -18.47 | 130.84 | 0.4154 | 1060.7 | 999999 | |
| 0.62 | 1.68 | 0.35 | 0.94 | -13.62 | 244.02 | -18.79 | 137.83 | 0.4682 | -817.0 | -667.4 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.17 | 244.02 | -18.79 | 137.17 | 0.4631 | 549.0 | 345.8 | |
| 1.50 | -9.00 | 0.82 | -9.00 | -9.56 | 244.21 | -18.60 | 131.51 | 0.4218 | 857.9 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -13.83 | 243.64 | -19.17 | 137.57 | 0.4744 | 775.0 | 593.6 | |
| 2.12 | -9.00 | 1.17 | -9.00 | -11.31 | 243.74 | -19.07 | 133.81 | 0.4457 | 824.5 | 999999 | |
| 0.88 | -9.00 | 0.49 | -9.00 | -11.25 | 243.55 | -19.26 | 133.43 | 0.4473 | 833.0 | 999999 | |
| 5.92 | -9.00 | 3.29 | -9.00 | -11.33 | 243.25 | -19.56 | 133.11 | 0.4514 | 797.7 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.46 | -10.29 | 243.13 | -19.68 | 131.19 | 0.4421 | -277.0 | -123.5 | |
| 0.00 | 1.86 | 0.00 | 1.02 | -8.79 | 243.16 | -19.65 | 128.54 | 0.4266 | -497.0 | -372.1 | |
| 4.60 | -9.00 | 2.55 | -9.00 | -11.05 | 242.98 | -19.83 | 132.26 | 0.4517 | 886.2 | 999999 | |
| 2.03 | -9.00 | 1.13 | -9.00 | -10.87 | 242.83 | -19.98 | 131.74 | 0.4515 | 797.7 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.73 | -12.43 | 242.64 | -20.16 | 134.00 | 0.4699 | 735.0 | 609.1 | |
| 3.01 | 6.37 | 1.72 | 3.65 | -15.34 | 242.24 | -20.57 | 137.70 | 0.5055 | 907.0 | 642.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -10.82 | 242.54 | -20.27 | 131.24 | 0.4544 | 651.0 | 557.9 | |
| 0.00 | 1.95 | 0.00 | 1.11 | -14.50 | 242.19 | -20.62 | 136.46 | 0.4968 | 760.0 | 587.9 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -7.90 | 242.69 | -20.12 | 126.21 | 0.4241 | 914.0 | 651.1 | |
| 0.00 | 4.86 | 0.00 | 2.74 | -12.65 | 241.96 | -20.84 | 133.40 | 0.4797 | 743.0 | 683.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -11.29 | 241.85 | -20.96 | 131.07 | 0.4672 | 605.0 | 452.9 | |
| 2.30 | 89.40 | 1.28 | 50.11 | -10.22 | 241.76 | -21.04 | 129.16 | 0.4576 | 963.2 | 256.4 | |
| 2.65 | -30.00 | 1.48 | -30.00 | -10.45 | 241.62 | -21.19 | 129.35 | 0.4616 | 992.4 | 999999 | |
| 16.27 | -30.00 | 9.11 | -30.00 | -10.96 | 241.44 | -21.36 | 129.98 | 0.4686 | 966.7 | 999999 | |
| 1.24 | 3.36 | 0.70 | 1.89 | -11.95 | 241.36 | -21.44 | 131.48 | 0.4793 | 826.3 | 758.1 | |
| 0.00 | 2.03 | 0.00 | 1.15 | -12.21 | 241.28 | -21.53 | 131.77 | 0.4829 | 614.0 | 424.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -9.46 | 241.32 | -21.48 | 127.25 | 0.4557 | 559.0 | 454.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.77 | 241.08 | -21.72 | 130.82 | 0.4808 | 497.0 | 452.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.25 | 240.51 | -22.30 | 127.58 | 0.4730 | 560.0 | 414.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -11.14 | 240.31 | -22.50 | 128.81 | 0.4838 | 576.0 | 414.6 | |
| 4.33 | 49.43 | 2.45 | 28.07 | -10.54 | 239.79 | -23.01 | 127.17 | 0.4843 | 656.9 | -515.5 | |
| 0.00 | 1.68 | 0.00 | 1.00 | -16.77 | 238.99 | -23.82 | 135.45 | 0.5533 | -912.0 | -680.5 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -12.87 | 239.34 | -23.46 | 130.35 | 0.5113 | 565.0 | 441.1 | |
| 2.12 | 8.05 | 1.21 | 4.58 | -11.02 | 239.48 | -23.32 | 127.61 | 0.4925 | 615.6 | 25.0 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -9.79 | 239.05 | -23.75 | 125.04 | 0.4868 | -808.0 | -803.3 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -10.84 | 238.70 | -24.11 | 126.39 | 0.5004 | -337.0 | -207.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -11.73 | 238.58 | -24.22 | 127.69 | 0.5097 | 512.0 | 362.9 | |
| 2.92 | -39.00 | 1.66 | -39.00 | -10.03 | 238.66 | -24.14 | 125.00 | 0.4936 | -1074.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -11.04 | 238.58 | -24.23 | 126.57 | 0.5035 | 312.0 | 242.6 | |
| 2.03 | -39.00 | 1.16 | -39.00 | -10.32 | 238.51 | -24.30 | 125.31 | 0.4981 | -1047.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -10.98 | 238.38 | -24.42 | 126.26 | 0.5054 | -511.0 | -160.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -9.28 | 238.49 | -24.32 | 123.54 | 0.4895 | -731.0 | -633.0 | |
| 2.92 | -39.00 | 1.67 | -39.00 | -10.48 | 238.29 | -24.52 | 125.34 | 0.5022 | -981.8 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -11.76 | 238.11 | -24.70 | 127.18 | 0.5155 | -231.0 | -179.5 | |
| 0.00 | 1.95 | 0.00 | 1.12 | -11.03 | 238.14 | -24.66 | 126.06 | 0.5087 | -182.0 | -5.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.53 | 238.02 | -24.79 | 125.11 | 0.5059 | -454.0 | -402.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -10.15 | 238.02 | -24.79 | 124.49 | 0.5028 | -680.0 | -544.6 | |
| 0.00 | 1.86 | 0.00 | 1.06 | -9.56 | 237.90 | -24.91 | 123.37 | 0.4993 | -638.0 | -552.6 | |
| 4.51 | 6.72 | 2.59 | 3.87 | -10.67 | 237.77 | -25.04 | 125.07 | 0.5102 | -949.6 | -636.1 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -12.42 | 237.60 | -25.21 | 127.64 | 0.5274 | -694.0 | -581.9 | |
| 0.62 | 82.68 | 0.36 | 48.07 | -11.24 | 237.65 | -25.16 | 125.86 | 0.5165 | -952.7 | -485.7 | |
| 0.00 | 1.59 | 0.00 | 0.93 | -12.78 | 237.35 | -25.45 | 127.93 | 0.5334 | -816.0 | -700.4 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -12.43 | 237.36 | -25.45 | 127.40 | 0.5303 | -484.0 | -476.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.58 | 237.59 | -25.21 | 123.07 | 0.5033 | 537.0 | 388.6 | |
| 0.00 | 1.59 | 0.00 | 0.92 | -10.66 | 237.43 | -25.37 | 124.68 | 0.5142 | -776.0 | -665.4 | |
| 0.71 | -59.00 | 0.41 | -59.00 | -12.15 | 237.25 | -25.56 | 126.85 | 0.5291 | -1140.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.92 | -11.20 | 237.31 | -25.49 | 125.43 | 0.5202 | -593.0 | -732.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.18 | 237.49 | -25.32 | 122.29 | 0.5014 | -824.0 | -672.4 | |
| 0.00 | 1.86 | 0.00 | 1.07 | -10.92 | 237.27 | -25.53 | 124.93 | 0.5183 | -756.0 | -713.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -5.85 | 237.60 | -25.20 | 116.43 | 0.4750 | -766.0 | -591.9 | |
| 1.77 | -59.00 | 1.03 | -59.00 | -12.10 | 237.09 | -25.72 | 126.59 | 0.5306 | -1127.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -16.02 | 236.49 | -26.31 | 131.63 | 0.5722 | 709.0 | 531.4 | |
| 2.74 | -59.00 | 1.60 | -59.00 | -12.14 | 236.84 | -25.96 | 126.40 | 0.5339 | -959.6 | 999999 | |
| 8.05 | -59.00 | 4.69 | -59.00 | -11.63 | 236.86 | -25.95 | 125.63 | 0.5293 | 600.4 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -10.75 | 236.91 | -25.89 | 124.28 | 0.5213 | -784.0 | -608.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -6.49 | 237.23 | -25.57 | 117.27 | 0.4845 | -770.0 | -616.4 | |
| 0.00 | 3.27 | 0.00 | 1.89 | -9.88 | 236.69 | -26.12 | 122.64 | 0.5171 | -970.0 | -784.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -16.18 | 235.94 | -26.86 | 131.26 | 0.5795 | 532.0 | 409.7 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -15.66 | 236.02 | -26.78 | 130.63 | 0.5739 | 820.0 | 591.4 | |
| 0.00 | 3.27 | 0.00 | 1.98 | -15.79 | 235.97 | -26.84 | 130.76 | 0.5757 | 736.0 | 656.3 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -12.47 | 236.05 | -26.76 | 126.08 | 0.5460 | 705.0 | 392.1 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -15.82 | 235.51 | -27.30 | 130.31 | 0.5809 | 729.0 | 659.1 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -8.15 | 236.31 | -26.49 | 119.36 | 0.5086 | -758.0 | -583.9 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -12.74 | 235.74 | -27.07 | 126.17 | 0.5519 | 329.0 | 43.4 | |
| 0.00 | 2.48 | 0.00 | 1.48 | -13.56 | 235.54 | -27.27 | 127.16 | 0.5611 | -931.0 | -655.3 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -15.64 | 235.22 | -27.59 | 129.77 | 0.5825 | 427.0 | 377.5 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -14.54 | 235.16 | -27.64 | 128.20 | 0.5737 | -767.0 | -668.5 | |
| 1.06 | 592.70 | 0.63 | 349.75 | -12.02 | 235.13 | -27.68 | 124.47 | 0.5532 | -909.3 | -474.7 | |
| 4.07 | -86.00 | 2.40 | -86.00 | -10.97 | 235.17 | -27.63 | 122.90 | 0.5444 | -832.2 | 999999 | |
| 0.71 | -86.00 | 0.42 | -86.00 | -11.90 | 235.00 | -27.80 | 124.17 | 0.5537 | -970.9 | 999999 | |
| 63.40 | -86.00 | 37.28 | -86.00 | -10.35 | 235.06 | -27.74 | 121.81 | 0.5410 | -1368.8 | 999999 | |
| 4.07 | -86.00 | 2.41 | -86.00 | -11.65 | 234.93 | -27.88 | 123.71 | 0.5527 | -1041.0 | 999999 | |
| 1.24 | -86.00 | 0.74 | -86.00 | -12.22 | 234.83 | -27.98 | 124.49 | 0.5585 | -596.1 | 999999 | |
| 0.71 | 36.52 | 0.43 | 21.98 | -13.19 | 234.64 | -28.17 | 125.75 | 0.5684 | -875.9 | -622.6 | |
| 6.72 | -86.00 | 4.00 | -86.00 | -11.91 | 234.69 | -28.12 | 123.89 | 0.5577 | -776.2 | 999999 | |
| 2.83 | -92.00 | 1.70 | -92.00 | -13.08 | 234.44 | -28.36 | 125.39 | 0.5698 | -958.6 | 999999 | |
| 3.54 | -86.00 | 2.11 | -86.00 | -11.67 | 234.58 | -28.23 | 123.41 | 0.5571 | -948.2 | 999999 | |
| 2.12 | -92.00 | 1.28 | -92.00 | -12.85 | 234.40 | -28.41 | 125.02 | 0.5685 | -1042.9 | 999999 | |
| 3.71 | -86.00 | 2.21 | -86.00 | -11.33 | 234.44 | -28.37 | 122.77 | 0.5561 | -858.8 | 999999 | |
| 2.56 | -92.00 | 1.54 | -92.00 | -12.80 | 234.16 | -28.64 | 124.72 | 0.5709 | -723.1 | 999999 | |
| 0.44 | 1.68 | 0.27 | 1.01 | -12.29 | 234.22 | -28.58 | 124.02 | 0.5662 | -756.2 | -656.3 | |
| 3.89 | -86.00 | 2.32 | -86.00 | -11.75 | 234.25 | -28.55 | 123.24 | 0.5616 | -773.8 | 999999 | |
| 0.35 | 1.41 | 0.21 | 0.85 | -12.07 | 234.14 | -28.66 | 123.62 | 0.5654 | -678.8 | -560.5 | |
| 26.26 | -86.00 | 15.57 | -86.00 | -10.45 | 234.29 | -28.52 | 121.27 | 0.5514 | -1002.8 | 999999 | |
| 0.00 | 8.84 | 0.00 | 5.36 | -13.36 | 233.91 | -28.89 | 125.30 | 0.5782 | -162.0 | -176.5 | |
| 6.28 | -86.00 | 3.73 | -86.00 | -10.81 | 234.18 | -28.62 | 121.72 | 0.5553 | -868.4 | 999999 | |
| 1.95 | -86.00 | 1.16 | -86.00 | -11.03 | 234.09 | -28.72 | 121.99 | 0.5582 | -678.5 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.49 | -12.38 | 233.86 | -28.94 | 123.81 | 0.5711 | -669.0 | -450.3 | |
| 0.27 | -86.00 | 0.16 | -86.00 | -10.88 | 234.00 | -28.81 | 121.67 | 0.5581 | -675.7 | 999999 | |
| 1.68 | 3.98 | 1.02 | 2.41 | -13.05 | 233.74 | -29.07 | 124.70 | 0.5778 | -700.8 | -452.3 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -12.52 | 233.56 | -29.24 | 123.75 | 0.5758 | -557.0 | -396.4 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -12.17 | 233.61 | -29.20 | 123.27 | 0.5726 | -790.0 | -625.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -14.07 | 233.35 | -29.45 | 125.79 | 0.5902 | -392.0 | -360.9 | |
| 0.00 | 1.77 | 0.00 | 1.07 | -12.02 | 233.48 | -29.32 | 122.94 | 0.5729 | -733.0 | -522.0 | |
| 0.88 | 4.60 | 0.54 | 2.79 | -12.15 | 232.86 | -29.94 | 122.59 | 0.5813 | -742.5 | -613.8 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -11.70 | 232.92 | -29.89 | 121.97 | 0.5773 | -793.0 | -582.4 | |
| 1.77 | 3.98 | 1.06 | 2.39 | -10.22 | 233.02 | -29.79 | 119.78 | 0.5655 | -723.6 | -613.0 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -11.90 | 232.82 | -29.98 | 122.18 | 0.5799 | -622.0 | -545.2 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -12.32 | 232.66 | -30.14 | 122.66 | 0.5849 | -569.0 | -485.7 | |
| 0.00 | 2.48 | 0.00 | 1.50 | -11.47 | 232.66 | -30.14 | 121.39 | 0.5787 | -867.0 | -747.3 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -11.54 | 232.44 | -30.36 | 121.32 | 0.5820 | -425.0 | -369.0 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -14.12 | 231.98 | -30.83 | 124.65 | 0.6063 | -653.0 | -372.4 | |
| 0.00 | 2.56 | 0.00 | 1.59 | -13.87 | 231.98 | -30.82 | 124.29 | 0.6043 | -711.0 | -553.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.12 | 232.21 | -30.60 | 120.48 | 0.5818 | -573.0 | -458.8 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -13.19 | 231.14 | -31.66 | 122.62 | 0.6091 | -599.0 | -414.1 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -10.57 | 231.38 | -31.43 | 118.99 | 0.5882 | -621.0 | -534.9 | |
| 0.00 | 1.86 | 0.00 | 1.18 | -14.45 | 230.51 | -32.30 | 123.85 | 0.6253 | -581.0 | -464.7 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.10 | 230.46 | -32.35 | 116.05 | 0.5903 | -795.0 | -663.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -8.79 | 230.35 | -32.46 | 115.50 | 0.5899 | -653.0 | -537.3 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -7.93 | 229.70 | -33.10 | 113.73 | 0.5931 | -628.0 | -490.8 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -14.36 | 224.17 | -38.63 | 119.21 | 0.6952 | -689.0 | -576.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
