SDO HMI 2014-09-25 05:00:34 UT

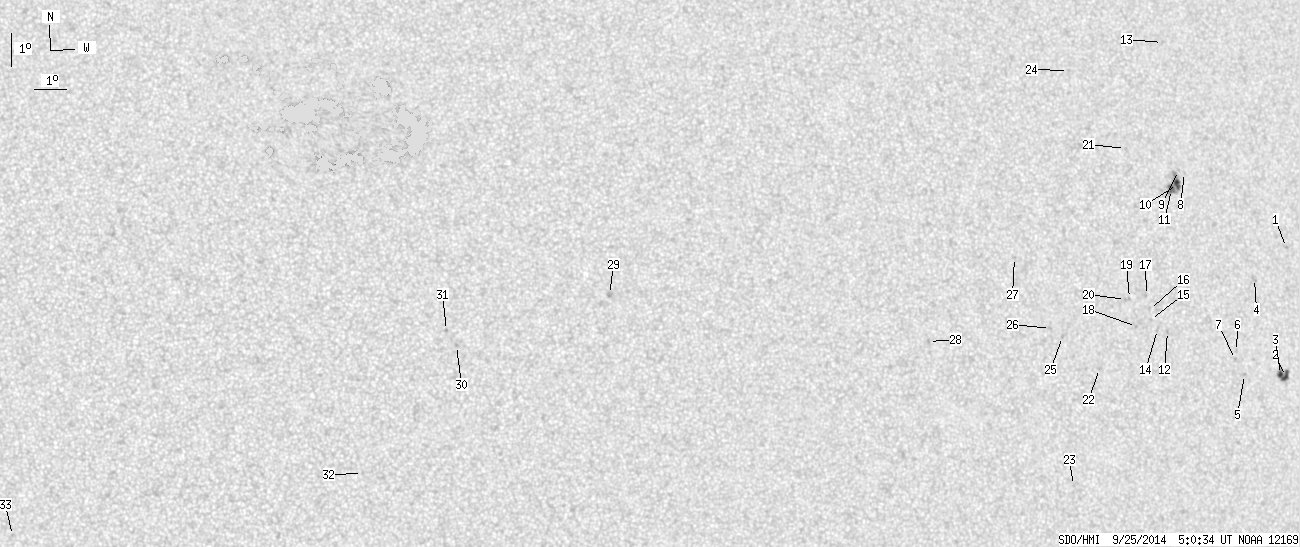

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.69 | 65.53 | 8.36 | 36.33 | 8.31 | 286.72 | 25.56 | 272.22 | 0.4343 | 15.3 | -54.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.67 | 8.97 | 292.96 | 31.80 | 275.80 | 0.5253 | -788.0 | -664.5 | |
| 4.16 | 10.08 | 2.41 | 5.84 | 5.10 | 292.63 | 31.47 | 268.37 | 0.5222 | -787.0 | -693.1 | |
| 2.74 | -2.00 | 1.59 | -2.00 | 5.17 | 292.45 | 31.29 | 268.47 | 0.5196 | -1038.2 | 999999 | |
| 0.00 | 3.10 | 0.00 | 1.78 | 8.11 | 291.74 | 30.58 | 274.16 | 0.5071 | -608.0 | -577.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 5.25 | 291.19 | 30.03 | 268.42 | 0.5006 | -770.0 | -623.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 5.96 | 290.95 | 29.79 | 269.81 | 0.4962 | -414.0 | -354.7 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 5.72 | 290.91 | 29.75 | 269.32 | 0.4957 | -744.0 | -528.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 11.44 | 289.61 | 28.45 | 281.18 | 0.4780 | -668.0 | -518.2 | |
| 0.00 | 1.77 | 0.00 | 0.99 | 11.51 | 289.41 | 28.25 | 281.38 | 0.4751 | -643.0 | -529.4 | |
| 4.16 | 17.69 | 2.33 | 9.93 | 11.09 | 289.33 | 28.17 | 280.52 | 0.4732 | -968.4 | -772.2 | |
| 3.63 | -10.00 | 2.03 | -10.00 | 10.95 | 289.11 | 27.95 | 280.27 | 0.4696 | -1013.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 6.70 | 288.62 | 27.46 | 271.11 | 0.4599 | 730.0 | 618.5 | |
| 0.00 | 1.42 | 0.00 | 0.80 | 15.40 | 289.36 | 28.20 | 289.42 | 0.4850 | -520.0 | -400.1 | |
| 0.00 | 1.86 | 0.00 | 1.03 | 6.78 | 288.28 | 27.12 | 271.26 | 0.4547 | 684.0 | 467.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 7.09 | 288.06 | 26.90 | 271.94 | 0.4512 | 624.0 | 503.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 7.39 | 288.05 | 26.89 | 272.61 | 0.4508 | 680.0 | 483.9 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 7.82 | 287.98 | 26.82 | 273.56 | 0.4497 | 700.0 | 514.5 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 6.91 | 287.58 | 26.42 | 271.49 | 0.4437 | 808.0 | 669.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 7.76 | 287.40 | 26.24 | 273.42 | 0.4406 | 731.0 | 600.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 7.74 | 287.26 | 26.10 | 273.37 | 0.4385 | 801.0 | 608.2 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 12.27 | 287.66 | 26.50 | 283.53 | 0.4503 | -735.0 | -539.7 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 5.71 | 286.27 | 25.11 | 268.57 | 0.4241 | 816.0 | 575.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 2.23 | 285.29 | 24.13 | 260.02 | 0.4165 | 667.0 | 494.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 14.73 | 285.99 | 24.83 | 289.76 | 0.4334 | -645.0 | -552.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 6.74 | 285.09 | 23.93 | 270.90 | 0.4045 | 800.0 | 624.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 6.99 | 284.70 | 23.54 | 271.52 | 0.3983 | 798.0 | 663.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 9.18 | 283.65 | 22.49 | 277.21 | 0.3823 | 668.0 | 609.6 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 6.78 | 280.72 | 19.56 | 270.65 | 0.3339 | 898.0 | 727.9 | |
| 0.00 | 3.54 | 0.00 | 1.78 | 8.51 | 270.76 | 9.60 | 279.85 | 0.1682 | 965.0 | 795.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 7.05 | 266.05 | 4.89 | 271.33 | 0.0851 | 980.0 | 815.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.51 | 265.76 | 4.60 | 277.07 | 0.0804 | 1038.0 | 843.3 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 3.23 | 263.18 | 2.02 | 208.43 | 0.0744 | 842.0 | 580.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 1.30 | 252.62 | -8.54 | 123.29 | 0.1784 | 737.0 | 569.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
