SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.68 | 0.00 | 6.61 | -16.31 | 287.44 | 26.82 | 228.38 | 0.5929 | 605.9 | 493.8 | |
|
previous
or next observation for the same group /

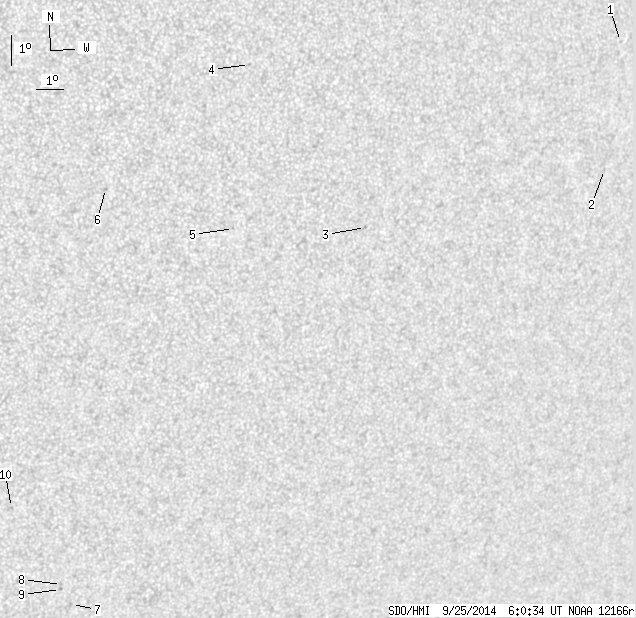

back to the solar disc SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.71 | -7.74 | 300.27 | 39.66 | 250.32 | 0.6740 | 491.0 | 425.5 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -11.74 | 300.20 | 39.59 | 244.81 | 0.6919 | 226.0 | 238.1 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -12.93 | 291.35 | 30.74 | 236.99 | 0.5963 | 708.0 | 528.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -7.53 | 286.78 | 26.17 | 241.45 | 0.4998 | 657.0 | 524.8 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -12.68 | 286.68 | 26.07 | 232.92 | 0.5396 | 749.0 | 639.8 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -11.17 | 282.24 | 21.62 | 230.04 | 0.4736 | 589.0 | 514.1 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -25.02 | 282.90 | 22.28 | 213.38 | 0.6268 | 548.0 | 486.9 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -24.29 | 282.40 | 21.79 | 213.51 | 0.6151 | 806.0 | 604.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -24.47 | 282.40 | 21.79 | 213.33 | 0.6170 | 645.0 | 508.7 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -21.53 | 280.21 | 19.60 | 213.56 | 0.5667 | 640.0 | 530.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
