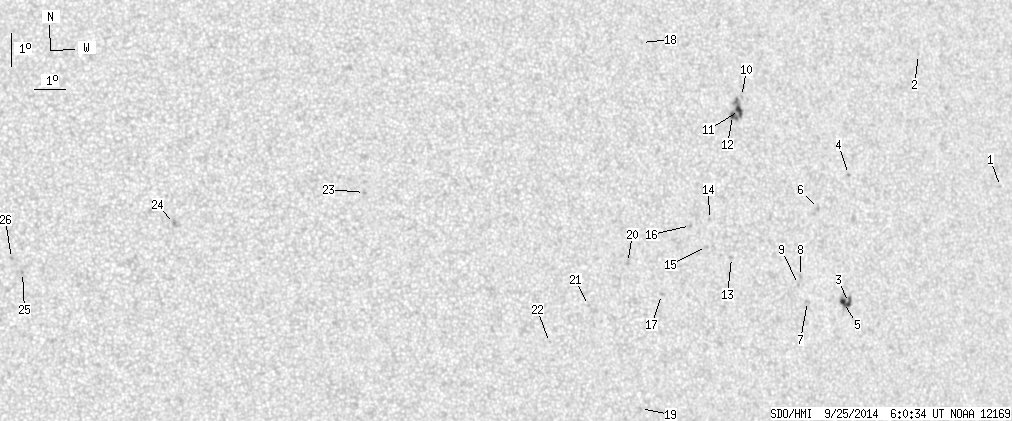

SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.12 | 59.16 | 6.97 | 33.24 | 7.97 | 288.11 | 27.50 | 274.24 | 0.4596 | -85.2 | -173.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.72 | 8.20 | 298.54 | 37.93 | 274.41 | 0.6125 | -661.0 | -540.0 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 12.38 | 295.98 | 35.37 | 281.63 | 0.5794 | -618.0 | -469.1 | |
| 3.01 | 12.56 | 1.76 | 7.32 | 5.11 | 292.65 | 32.04 | 268.50 | 0.5307 | -807.7 | -639.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 8.96 | 292.96 | 32.34 | 275.77 | 0.5333 | -778.0 | -623.0 | |
| 3.36 | -3.00 | 1.96 | -3.00 | 5.13 | 292.47 | 31.86 | 268.49 | 0.5280 | -1020.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.82 | 8.00 | 291.79 | 31.18 | 273.96 | 0.5160 | -753.0 | -565.7 | |
| 0.00 | 2.12 | 0.00 | 1.22 | 5.24 | 291.21 | 30.59 | 268.50 | 0.5090 | -745.0 | -551.8 | |
| 0.00 | 1.68 | 0.00 | 0.96 | 6.00 | 291.01 | 30.39 | 269.98 | 0.5052 | -626.0 | -413.6 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 5.77 | 290.92 | 30.31 | 269.50 | 0.5041 | -635.0 | -533.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 11.53 | 289.43 | 28.82 | 281.30 | 0.4836 | -597.0 | -515.0 | |
| 3.89 | 16.89 | 2.20 | 9.53 | 11.11 | 289.31 | 28.70 | 280.46 | 0.4811 | -1007.5 | -832.5 | |
| 1.86 | -11.00 | 1.05 | -11.00 | 10.98 | 289.05 | 28.44 | 280.23 | 0.4770 | -1093.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 6.72 | 288.66 | 28.04 | 271.21 | 0.4689 | 768.0 | 538.8 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 7.90 | 287.98 | 27.37 | 273.75 | 0.4582 | 633.0 | 477.4 | |
| 0.00 | 1.95 | 0.00 | 1.08 | 7.10 | 287.82 | 27.21 | 271.97 | 0.4559 | 677.0 | 582.5 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 7.76 | 287.32 | 26.71 | 273.43 | 0.4480 | 808.0 | 666.2 | |
| 0.00 | 1.77 | 0.00 | 0.97 | 5.74 | 286.22 | 25.61 | 268.73 | 0.4320 | 615.0 | 468.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 13.35 | 286.17 | 25.56 | 286.30 | 0.4392 | -638.0 | -491.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 2.34 | 285.41 | 24.79 | 260.60 | 0.4265 | 699.0 | 612.9 | |
| 0.00 | 2.12 | 0.00 | 1.15 | 6.76 | 285.14 | 24.53 | 271.01 | 0.4141 | 769.0 | 699.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 5.53 | 283.79 | 23.18 | 267.77 | 0.3937 | 724.0 | 600.3 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 4.48 | 282.47 | 21.86 | 264.67 | 0.3745 | 589.0 | 535.3 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 9.23 | 276.74 | 16.13 | 279.16 | 0.2790 | 908.0 | 676.4 | |
| 0.00 | 3.36 | 0.00 | 1.69 | 8.46 | 270.77 | 10.16 | 279.13 | 0.1775 | 1185.0 | 737.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 7.07 | 266.09 | 5.47 | 271.47 | 0.0951 | 1071.0 | 907.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.50 | 265.76 | 5.14 | 276.28 | 0.0898 | 922.0 | 757.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
