SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 26.44 | 1.88 | 14.56 | -15.63 | 248.07 | -12.54 | 151.33 | 0.4372 | -219.7 | -285.1 | |
|
previous
or next observation for the same group /

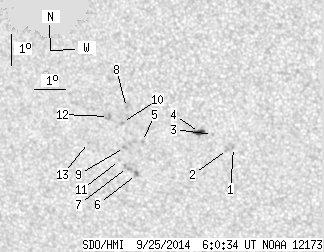

back to the solar disc SDO HMI 2014-09-25 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.71 | 250.42 | -10.19 | 156.06 | 0.4215 | 758.0 | 659.7 | |
| 0.00 | 2.65 | 0.00 | 1.45 | -15.78 | 250.23 | -10.39 | 155.72 | 0.4237 | 872.0 | 638.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.30 | 249.78 | -10.84 | 154.30 | 0.4199 | 693.0 | 476.2 | |
| 3.45 | 6.19 | 1.88 | 3.38 | -15.24 | 249.37 | -11.25 | 153.39 | 0.4219 | 878.7 | 491.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.58 | 247.53 | -13.09 | 150.17 | 0.4403 | -856.0 | -623.3 | |
| 0.00 | 2.48 | 0.00 | 1.38 | -16.67 | 247.26 | -13.36 | 150.91 | 0.4570 | -840.0 | -719.9 | |
| 0.00 | 3.63 | 0.00 | 2.02 | -16.45 | 246.98 | -13.63 | 150.16 | 0.4561 | -602.0 | -678.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.49 | 247.08 | -13.53 | 148.01 | 0.4292 | -940.0 | -800.8 | |
| 0.00 | 1.86 | 0.00 | 1.03 | -15.80 | 246.93 | -13.68 | 149.32 | 0.4478 | -931.0 | -739.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -14.98 | 246.92 | -13.69 | 148.32 | 0.4371 | -768.0 | -625.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.23 | 246.74 | -13.87 | 149.47 | 0.4551 | -575.0 | -468.4 | |
| 0.00 | 2.74 | 0.00 | 1.51 | -14.80 | 246.49 | -14.12 | 147.28 | 0.4383 | -775.0 | -798.2 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -15.67 | 245.78 | -14.83 | 147.09 | 0.4556 | -738.0 | -662.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
