SDO HMI 2014-09-25 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.51 | 49.45 | 2.45 | 27.10 | -15.52 | 248.05 | -11.47 | 153.32 | 0.4278 | -239.1 | -288.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

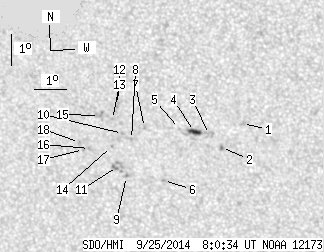

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.56 | 0.00 | 1.39 | -14.97 | 251.03 | -8.48 | 159.04 | 0.4001 | 778.0 | 564.0 | |
| 0.00 | 2.03 | 0.00 | 1.11 | -15.76 | 250.34 | -9.18 | 158.24 | 0.4159 | 871.0 | 773.0 | |
| 0.00 | 4.86 | 0.00 | 2.64 | -15.35 | 249.98 | -9.54 | 157.07 | 0.4120 | 130.0 | 378.3 | |
| 4.51 | 8.58 | 2.45 | 4.67 | -15.26 | 249.51 | -10.01 | 155.97 | 0.4137 | 842.7 | 373.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.17 | 249.04 | -10.48 | 154.89 | 0.4155 | 426.0 | 320.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -16.88 | 248.43 | -11.09 | 155.40 | 0.4439 | 547.0 | 426.1 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -15.16 | 247.92 | -11.59 | 152.59 | 0.4232 | -732.0 | -583.3 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -15.56 | 247.49 | -12.03 | 152.17 | 0.4320 | -888.0 | -668.2 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -16.78 | 247.25 | -12.27 | 153.03 | 0.4505 | -681.0 | -627.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.38 | 247.21 | -12.31 | 151.42 | 0.4314 | -660.0 | -495.5 | |
| 0.00 | 8.14 | 0.00 | 4.50 | -16.46 | 246.98 | -12.54 | 152.18 | 0.4480 | -573.0 | -725.2 | |
| 0.00 | 3.10 | 0.00 | 1.69 | -14.44 | 247.11 | -12.41 | 150.10 | 0.4193 | -751.0 | -600.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -14.93 | 246.92 | -12.60 | 150.32 | 0.4275 | -841.0 | -654.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -15.81 | 246.83 | -12.69 | 151.18 | 0.4402 | -925.0 | -768.1 | |
| 0.00 | 5.84 | 0.00 | 3.20 | -14.81 | 246.51 | -13.01 | 149.39 | 0.4291 | -907.0 | -775.6 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -15.89 | 246.12 | -13.40 | 149.94 | 0.4468 | -861.0 | -702.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -15.93 | 245.92 | -13.59 | 149.62 | 0.4488 | -726.0 | -586.8 | |
| 0.00 | 1.86 | 0.00 | 1.03 | -15.71 | 245.81 | -13.71 | 149.15 | 0.4467 | -922.0 | -604.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
