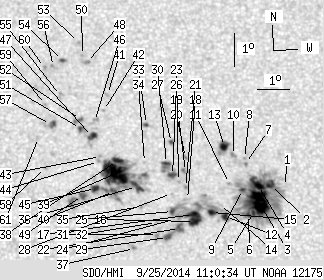

SDO HMI 2014-09-25 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.72 | 564.72 | 78.51 | 283.08 | 13.76 | 262.92 | 5.05 | 325.10 | 0.1514 | -3.8 | -18.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.73 | 266.00 | 8.12 | 311.00 | 0.1827 | -112.0 | -95.5 | |
| 4.24 | 293.16 | 2.14 | 147.14 | 13.77 | 265.56 | 7.69 | 312.69 | 0.1776 | -1013.2 | -337.0 | |
| 33.42 | -2.00 | 16.79 | -2.00 | 13.29 | 265.17 | 7.30 | 312.04 | 0.1672 | -1379.5 | 999999 | |
| 6.19 | -2.00 | 3.11 | -2.00 | 13.77 | 265.19 | 7.31 | 314.11 | 0.1730 | -1075.4 | 999999 | |
| 2.30 | -2.00 | 1.15 | -2.00 | 12.96 | 265.01 | 7.13 | 311.14 | 0.1614 | -1168.4 | 999999 | |
| 2.12 | -2.00 | 1.06 | -2.00 | 12.90 | 264.85 | 6.98 | 311.48 | 0.1587 | -1130.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 14.45 | 264.81 | 6.93 | 318.36 | 0.1767 | -1050.0 | -832.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 14.60 | 264.78 | 6.90 | 319.05 | 0.1783 | -836.0 | -687.2 | |
| 1.50 | -2.00 | 0.75 | -2.00 | 13.66 | 264.69 | 6.81 | 315.62 | 0.1655 | -860.8 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.47 | 14.69 | 264.44 | 6.56 | 320.82 | 0.1758 | -985.0 | -739.7 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 13.85 | 264.29 | 6.41 | 318.12 | 0.1632 | 455.0 | 227.2 | |
| 3.45 | -2.00 | 1.73 | -2.00 | 12.85 | 264.14 | 6.26 | 314.27 | 0.1491 | -1112.6 | 999999 | |
| 5.30 | 11.49 | 2.67 | 5.78 | 14.97 | 264.16 | 6.29 | 322.98 | 0.1766 | -938.0 | -477.7 | |
| 0.00 | 2.03 | 0.00 | 1.02 | 13.22 | 263.96 | 6.08 | 316.82 | 0.1515 | -78.0 | -140.8 | |
| 3.71 | -2.00 | 1.86 | -2.00 | 12.98 | 263.70 | 5.83 | 316.89 | 0.1455 | -958.4 | 999999 | |
| 7.34 | -2.00 | 3.67 | -2.00 | 12.71 | 263.17 | 5.30 | 318.29 | 0.1360 | -1151.6 | 999999 | |
| 7.25 | -2.00 | 3.63 | -2.00 | 12.92 | 263.15 | 5.27 | 319.47 | 0.1384 | -1203.9 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 13.38 | 262.97 | 5.09 | 322.50 | 0.1426 | -70.0 | -7.0 | |
| 0.00 | 3.80 | 0.00 | 1.91 | 14.23 | 262.93 | 5.05 | 326.15 | 0.1539 | 1044.0 | 831.3 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 14.65 | 262.94 | 5.06 | 327.62 | 0.1601 | 888.0 | 680.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 13.74 | 262.92 | 5.04 | 324.32 | 0.1470 | -885.0 | -588.0 | |
| 3.01 | 15.91 | 1.50 | 7.94 | 12.51 | 262.70 | 4.83 | 319.84 | 0.1280 | -1035.4 | -694.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 13.93 | 262.70 | 4.83 | 326.20 | 0.1475 | -77.0 | -60.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.78 | 262.52 | 4.65 | 322.26 | 0.1297 | -89.0 | -99.1 | |
| 2.21 | -2.00 | 1.10 | -2.00 | 13.02 | 262.50 | 4.62 | 323.55 | 0.1327 | 516.6 | 999999 | |
| 3.09 | 17.06 | 1.55 | 8.55 | 14.11 | 262.52 | 4.64 | 327.90 | 0.1485 | 797.9 | 167.6 | |
| 0.88 | 2.12 | 0.44 | 1.07 | 15.11 | 262.51 | 4.64 | 331.29 | 0.1632 | 960.3 | 808.1 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 13.57 | 262.48 | 4.60 | 326.02 | 0.1402 | 582.0 | 575.2 | |
| 2.65 | -22.00 | 1.32 | -22.00 | 12.24 | 262.33 | 4.45 | 320.69 | 0.1203 | -1059.0 | 999999 | |
| 2.21 | -26.00 | 1.11 | -26.00 | 14.48 | 262.34 | 4.47 | 330.17 | 0.1523 | 728.1 | 999999 | |
| 0.00 | 6.37 | 0.00 | 3.18 | 12.33 | 262.02 | 4.15 | 323.15 | 0.1183 | -889.0 | -510.9 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 12.69 | 262.00 | 4.12 | 325.11 | 0.1231 | -739.0 | -443.7 | |
| 0.88 | 1.68 | 0.44 | 0.84 | 15.67 | 261.74 | 3.87 | 336.86 | 0.1660 | -826.5 | -723.4 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 14.51 | 261.66 | 3.78 | 334.19 | 0.1473 | 547.0 | 473.7 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 13.18 | 261.54 | 3.67 | 330.25 | 0.1260 | 834.0 | 629.6 | |
| 5.83 | 121.29 | 2.92 | 60.63 | 13.79 | 261.40 | 3.52 | 333.46 | 0.1341 | 1029.4 | 525.2 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 11.92 | 261.31 | 3.43 | 326.03 | 0.1053 | 972.0 | 855.0 | |
| 4.77 | -36.00 | 2.39 | -36.00 | 14.58 | 260.82 | 2.94 | 339.52 | 0.1427 | 774.1 | 999999 | |
| 38.19 | -36.00 | 19.09 | -36.00 | 14.19 | 260.75 | 2.88 | 338.93 | 0.1359 | 1207.9 | 999999 | |
| 2.74 | -36.00 | 1.37 | -36.00 | 13.64 | 260.68 | 2.81 | 337.84 | 0.1267 | 1081.5 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 16.59 | 260.54 | 2.66 | 345.14 | 0.1743 | -734.0 | -510.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 16.10 | 260.40 | 2.53 | 345.10 | 0.1656 | -676.0 | -552.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 14.71 | 260.29 | 2.42 | 343.22 | 0.1419 | 819.0 | 652.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 14.55 | 260.23 | 2.35 | 343.32 | 0.1390 | -30.0 | -5.0 | |
| 3.80 | -36.00 | 1.90 | -36.00 | 13.74 | 260.12 | 2.25 | 342.15 | 0.1250 | 1071.8 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.35 | 15.77 | 260.12 | 2.24 | 346.22 | 0.1588 | 646.0 | 597.5 | |
| 3.89 | 8.31 | 1.95 | 4.16 | 15.31 | 260.05 | 2.17 | 345.90 | 0.1509 | 1099.0 | 791.2 | |
| 0.00 | 2.92 | 0.00 | 1.47 | 17.57 | 259.89 | 2.01 | 349.71 | 0.1884 | 1022.0 | 793.9 | |
| 2.48 | 14.41 | 1.23 | 7.19 | 13.53 | 259.72 | 1.85 | 344.74 | 0.1195 | 1226.2 | 908.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 17.79 | 259.76 | 1.89 | 350.53 | 0.1917 | 872.0 | 671.5 | |
| 1.41 | 5.66 | 0.71 | 2.84 | 15.56 | 259.68 | 1.80 | 348.57 | 0.1536 | 1117.9 | 868.2 | |
| 0.80 | 4.86 | 0.40 | 2.44 | 15.83 | 259.68 | 1.81 | 348.91 | 0.1583 | 932.0 | 802.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 18.19 | 259.64 | 1.77 | 351.45 | 0.1981 | 836.0 | 712.1 | |
| 1.06 | 2.21 | 0.53 | 1.11 | 17.64 | 259.13 | 1.26 | 353.57 | 0.1876 | 894.5 | 714.5 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 16.57 | 259.06 | 1.19 | 353.24 | 0.1692 | 784.0 | 643.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 17.45 | 258.85 | 0.97 | 354.93 | 0.1840 | 954.0 | 869.4 | |
| 0.00 | 6.28 | 0.00 | 3.15 | 15.69 | 258.74 | 0.87 | 354.53 | 0.1534 | 1262.0 | 952.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 14.38 | 258.58 | 0.70 | 354.74 | 0.1306 | 942.0 | 746.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 16.29 | 258.59 | 0.71 | 355.79 | 0.1637 | 818.0 | 629.2 | |
| 0.00 | 1.94 | 0.00 | 0.98 | 17.42 | 258.56 | 0.69 | 356.40 | 0.1831 | 833.0 | 765.1 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 15.29 | 258.37 | 0.49 | 356.74 | 0.1461 | 860.0 | 490.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
