SDO HMI 2014-09-25 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.52 | 439.50 | 42.54 | 232.27 | -10.93 | 265.04 | 7.71 | 203.52 | 0.3490 | 268.1 | 58.2 | |
|
previous
or next observation for the same group /

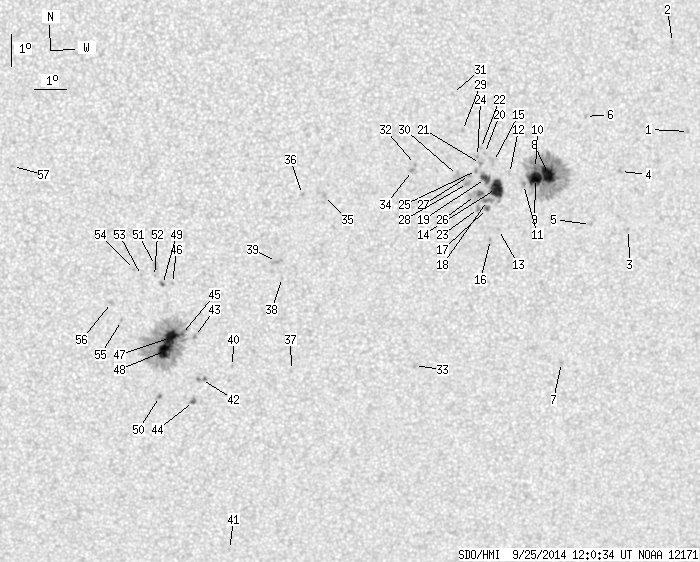

back to the solar disc SDO HMI 2014-09-25 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.66 | -7.39 | 275.04 | 17.71 | 231.28 | 0.3883 | 665.0 | 566.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -4.62 | 274.44 | 17.11 | 236.36 | 0.3538 | 757.0 | 603.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.39 | 273.27 | 15.94 | 222.65 | 0.4004 | 914.0 | 645.1 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -8.56 | 272.93 | 15.60 | 225.34 | 0.3755 | 1043.0 | 803.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -10.19 | 272.05 | 14.72 | 220.72 | 0.3851 | 563.0 | 493.2 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -6.81 | 271.77 | 14.44 | 226.63 | 0.3421 | -691.0 | -558.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -14.56 | 271.37 | 14.04 | 212.90 | 0.4342 | 777.0 | 682.0 | |
| 15.38 | 146.47 | 8.13 | 77.43 | -8.58 | 270.67 | 13.34 | 220.80 | 0.3507 | 1231.9 | 386.7 | |
| 11.84 | -8.00 | 6.25 | -8.00 | -8.69 | 270.26 | 12.94 | 219.72 | 0.3479 | 1280.2 | 999999 | |
| 2.12 | -8.00 | 1.12 | -8.00 | -8.38 | 270.25 | 12.93 | 220.28 | 0.3438 | 1195.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.17 | -8.87 | 269.90 | 12.57 | 218.58 | 0.3463 | 827.0 | 669.1 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -8.51 | 269.45 | 12.12 | 218.21 | 0.3372 | 774.0 | 587.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -10.26 | 269.17 | 11.84 | 214.55 | 0.3575 | 755.0 | 626.9 | |
| 15.91 | 31.20 | 8.37 | 16.41 | -8.97 | 269.06 | 11.73 | 216.48 | 0.3393 | 1072.7 | 744.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -8.12 | 268.94 | 11.61 | 217.74 | 0.3270 | 878.0 | 772.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -10.57 | 268.93 | 11.60 | 213.52 | 0.3595 | 820.0 | 672.0 | |
| 1.06 | 2.92 | 0.56 | 1.54 | -9.59 | 268.80 | 11.47 | 214.80 | 0.3451 | 823.0 | 670.8 | |
| 0.00 | 5.22 | 0.00 | 2.75 | -9.34 | 268.79 | 11.46 | 215.21 | 0.3416 | 895.0 | 740.7 | |
| 4.77 | -14.00 | 2.51 | -14.00 | -8.65 | 268.71 | 11.38 | 216.22 | 0.3316 | 1179.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.87 | 268.65 | 11.33 | 217.53 | 0.3208 | 879.0 | 697.5 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -8.18 | 268.54 | 11.21 | 216.67 | 0.3237 | 1088.0 | 843.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -7.71 | 268.53 | 11.20 | 217.52 | 0.3174 | 828.0 | 646.2 | |
| 0.00 | 2.74 | 0.00 | 1.44 | -9.58 | 268.52 | 11.19 | 214.15 | 0.3424 | 770.0 | 597.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.96 | 268.44 | 11.11 | 216.84 | 0.3198 | 874.0 | 725.4 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -8.39 | 268.42 | 11.09 | 215.98 | 0.3254 | 941.0 | 747.1 | |
| 0.00 | 12.38 | 0.00 | 6.50 | -9.17 | 268.41 | 11.09 | 214.59 | 0.3359 | 729.0 | 693.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -8.54 | 268.21 | 10.88 | 215.18 | 0.3254 | 846.0 | 659.4 | |
| 0.00 | 2.74 | 0.00 | 1.44 | -8.79 | 268.15 | 10.83 | 214.61 | 0.3283 | 1120.0 | 929.6 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -7.14 | 267.96 | 10.63 | 217.20 | 0.3041 | 754.0 | 506.5 | |
| 0.00 | 3.98 | 0.00 | 2.08 | -8.53 | 267.84 | 10.51 | 214.26 | 0.3218 | 352.0 | 296.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -5.98 | 267.63 | 10.30 | 218.72 | 0.2855 | 759.0 | 503.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.16 | 266.53 | 9.21 | 211.44 | 0.3049 | -823.0 | -708.8 | |
| 0.00 | 2.74 | 0.00 | 1.48 | -14.53 | 266.70 | 9.38 | 203.40 | 0.3989 | 731.0 | 556.0 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -8.35 | 266.44 | 9.12 | 210.88 | 0.3068 | -1049.0 | -830.8 | |
| 0.00 | 2.56 | 0.00 | 1.33 | -9.08 | 263.76 | 6.43 | 201.89 | 0.2979 | -934.0 | -753.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -9.04 | 263.08 | 5.76 | 199.83 | 0.2933 | -854.0 | -682.4 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -14.62 | 262.85 | 5.53 | 194.24 | 0.3803 | 591.0 | 425.7 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -11.64 | 262.51 | 5.18 | 195.54 | 0.3317 | -410.0 | -375.5 | |
| 0.00 | 4.42 | 0.00 | 2.31 | -11.13 | 262.32 | 4.99 | 195.41 | 0.3228 | -906.0 | -809.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.47 | 261.01 | 3.68 | 189.68 | 0.3717 | -848.0 | -548.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -20.53 | 261.03 | 3.71 | 187.48 | 0.4669 | -780.0 | -638.1 | |
| 0.00 | 3.62 | 0.00 | 1.94 | -14.89 | 260.05 | 2.73 | 187.05 | 0.3761 | 492.0 | 740.7 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -13.50 | 259.82 | 2.49 | 186.91 | 0.3532 | -775.0 | -681.7 | |
| 1.15 | 2.83 | 0.62 | 1.52 | -15.60 | 259.81 | 2.48 | 186.22 | 0.3872 | 929.3 | 791.6 | |
| 0.27 | 161.58 | 0.14 | 85.59 | -13.43 | 259.42 | 2.09 | 185.82 | 0.3514 | -956.0 | -428.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.80 | 259.13 | 1.80 | 185.47 | 0.3242 | -837.0 | -650.3 | |
| 12.20 | -45.00 | 6.45 | -45.00 | -13.53 | 259.08 | 1.75 | 184.86 | 0.3524 | -1342.1 | 999999 | |
| 14.76 | -45.00 | 7.83 | -45.00 | -13.94 | 258.93 | 1.60 | 184.34 | 0.3590 | -1097.1 | 999999 | |
| 0.62 | 1.86 | 0.32 | 0.97 | -11.83 | 258.82 | 1.50 | 184.54 | 0.3242 | -802.1 | -610.2 | |
| 0.44 | 2.56 | 0.24 | 1.37 | -15.43 | 258.75 | 1.42 | 183.59 | 0.3830 | -979.0 | -790.5 | |
| 0.00 | 3.62 | 0.00 | 1.89 | -11.23 | 258.60 | 1.28 | 184.01 | 0.3140 | -967.0 | -712.5 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -11.58 | 258.58 | 1.25 | 183.85 | 0.3197 | -617.0 | -548.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.54 | 258.18 | 0.85 | 182.62 | 0.3188 | 759.0 | 637.0 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -11.35 | 257.96 | 0.63 | 181.98 | 0.3155 | -899.0 | -724.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.98 | 257.56 | 0.24 | 180.67 | 0.3422 | 733.0 | 562.5 | |
| 0.00 | 2.56 | 0.00 | 1.35 | -12.40 | 257.25 | -0.07 | 179.79 | 0.3327 | 228.0 | 237.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.12 | 254.25 | -3.07 | 168.45 | 0.2663 | 799.0 | 562.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
