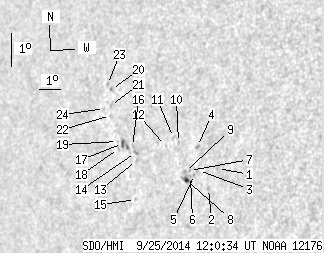

SDO HMI 2014-09-25 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.92 | 31.69 | 2.23 | 24.41 | 6.92 | 206.92 | -50.41 | 86.79 | 0.7681 | 27.8 | 125.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.71 | 6.64 | 210.03 | -47.29 | 87.39 | 0.7330 | -458.0 | -382.2 | |
| 0.00 | 1.24 | 0.00 | 0.90 | 6.00 | 209.71 | -47.62 | 88.22 | 0.7373 | -473.0 | -440.9 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 6.50 | 209.19 | -48.13 | 87.50 | 0.7429 | -228.0 | -388.4 | |
| 0.00 | 1.33 | 0.00 | 0.98 | 7.22 | 209.05 | -48.27 | 86.53 | 0.7441 | -724.0 | -605.2 | |
| 0.00 | 0.80 | 0.00 | 0.59 | 6.37 | 209.03 | -48.30 | 87.67 | 0.7450 | -519.0 | -557.8 | |
| 0.00 | 1.15 | 0.00 | 0.85 | 6.29 | 208.85 | -48.47 | 87.76 | 0.7470 | -550.0 | -496.9 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 6.47 | 208.79 | -48.54 | 87.52 | 0.7477 | -488.0 | -446.1 | |
| 1.68 | 3.89 | 1.25 | 2.90 | 6.16 | 208.69 | -48.64 | 87.92 | 0.7490 | -428.4 | -226.0 | |
| 0.00 | 1.33 | 0.00 | 0.99 | 6.42 | 208.61 | -48.72 | 87.56 | 0.7498 | -181.0 | -131.9 | |
| 0.00 | 0.80 | 0.00 | 0.60 | 7.26 | 208.17 | -49.16 | 86.42 | 0.7542 | -628.0 | -539.9 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 7.39 | 207.92 | -49.41 | 86.23 | 0.7570 | -358.0 | -321.8 | |
| 0.00 | 0.71 | 0.00 | 0.54 | 7.11 | 207.58 | -49.75 | 86.57 | 0.7610 | -416.0 | -272.5 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 6.54 | 206.28 | -51.05 | 87.21 | 0.7758 | 587.0 | 495.1 | |
| 0.00 | 2.12 | 0.00 | 1.66 | 6.77 | 206.20 | -51.13 | 86.91 | 0.7765 | 780.0 | 625.0 | |
| 0.00 | 0.97 | 0.00 | 0.76 | 5.37 | 206.38 | -50.95 | 88.73 | 0.7756 | 393.0 | 363.5 | |
| 0.00 | 1.06 | 0.00 | 0.83 | 6.94 | 206.03 | -51.30 | 86.68 | 0.7783 | 683.0 | 638.9 | |
| 1.24 | 5.57 | 0.98 | 4.41 | 6.98 | 205.53 | -51.80 | 86.59 | 0.7837 | 613.2 | 602.4 | |
| 0.00 | 1.33 | 0.00 | 1.06 | 6.82 | 205.36 | -51.97 | 86.79 | 0.7856 | 310.0 | 270.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 7.02 | 205.28 | -52.05 | 86.52 | 0.7863 | 315.0 | 299.3 | |
| 0.00 | 1.33 | 0.00 | 1.07 | 8.54 | 204.71 | -52.62 | 84.55 | 0.7916 | 559.0 | 486.2 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 8.06 | 204.75 | -52.58 | 85.17 | 0.7914 | 624.0 | 605.9 | |
| 0.00 | 0.80 | 0.00 | 0.64 | 7.76 | 204.80 | -52.52 | 85.55 | 0.7910 | 593.0 | 496.9 | |
| 0.00 | 1.33 | 0.00 | 1.07 | 8.67 | 204.48 | -52.85 | 84.38 | 0.7939 | 375.0 | 306.1 | |
| 0.00 | 0.80 | 0.00 | 0.65 | 7.94 | 204.47 | -52.86 | 85.30 | 0.7944 | 412.0 | 354.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
