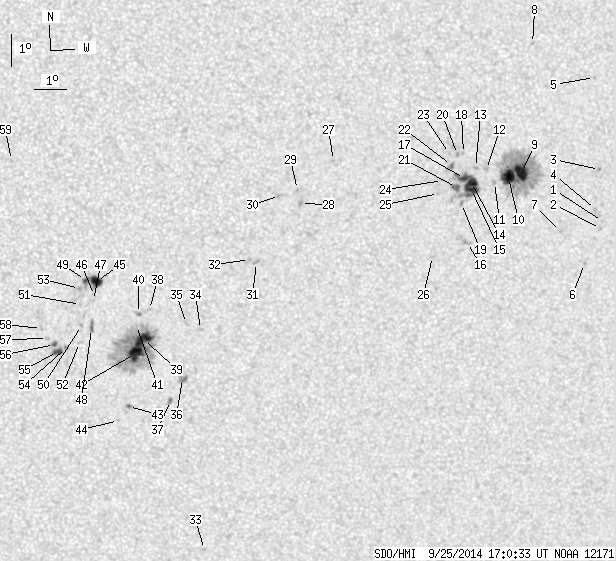

SDO HMI 2014-09-25 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.34 | 454.33 | 53.35 | 241.93 | -11.14 | 264.38 | 9.80 | 208.02 | 0.3673 | 254.2 | 67.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.44 | -10.20 | 273.38 | 18.81 | 227.72 | 0.4306 | 820.0 | 682.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -10.42 | 273.33 | 18.75 | 227.26 | 0.4323 | 745.0 | 624.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -8.57 | 273.19 | 18.62 | 230.40 | 0.4115 | 914.0 | 781.5 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -9.82 | 273.13 | 18.56 | 228.02 | 0.4236 | 889.0 | 689.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -5.71 | 272.91 | 18.34 | 235.79 | 0.3803 | 708.0 | 505.5 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -11.51 | 272.88 | 18.31 | 224.75 | 0.4390 | 774.0 | 574.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -10.46 | 272.04 | 17.47 | 225.15 | 0.4182 | 749.0 | 507.7 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -4.59 | 270.92 | 16.35 | 235.20 | 0.3432 | 764.0 | 569.9 | |
| 13.78 | 140.97 | 7.38 | 75.48 | -8.57 | 270.71 | 16.13 | 226.29 | 0.3818 | 1253.3 | 400.1 | |
| 13.78 | -9.00 | 7.37 | -9.00 | -8.71 | 270.30 | 15.73 | 225.28 | 0.3787 | 1284.1 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -8.85 | 269.87 | 15.29 | 224.21 | 0.3754 | 959.0 | 737.4 | |
| 0.00 | 2.03 | 0.00 | 1.08 | -8.43 | 269.60 | 15.02 | 224.48 | 0.3675 | 878.0 | 755.1 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -8.36 | 269.25 | 14.67 | 223.95 | 0.3627 | 841.0 | 785.0 | |
| 8.30 | 48.14 | 4.42 | 25.61 | -8.82 | 269.14 | 14.57 | 222.85 | 0.3670 | 1197.1 | 688.8 | |
| 7.33 | -14.00 | 3.91 | -14.00 | -9.04 | 269.15 | 14.58 | 222.46 | 0.3697 | 987.4 | 999999 | |
| 0.00 | 3.53 | 0.00 | 1.90 | -10.70 | 269.10 | 14.52 | 219.46 | 0.3894 | 707.0 | 687.9 | |
| 5.92 | -14.00 | 3.14 | -14.00 | -8.69 | 268.92 | 14.34 | 222.65 | 0.3630 | 1219.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -7.91 | 268.86 | 14.28 | 224.04 | 0.3530 | 897.0 | 658.5 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -9.47 | 268.85 | 14.28 | 221.10 | 0.3717 | 767.0 | 635.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -7.94 | 268.67 | 14.09 | 223.61 | 0.3512 | 1006.0 | 909.9 | |
| 3.18 | -14.00 | 1.69 | -14.00 | -8.97 | 268.67 | 14.10 | 221.66 | 0.3636 | 1031.3 | 999999 | |
| 0.71 | 4.50 | 0.37 | 2.38 | -8.27 | 268.49 | 13.92 | 222.59 | 0.3533 | 1066.9 | 834.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -7.90 | 268.42 | 13.84 | 223.17 | 0.3479 | 705.0 | 662.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.73 | 268.23 | 13.65 | 221.17 | 0.3560 | 974.0 | 825.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.14 | 268.12 | 13.54 | 220.20 | 0.3598 | 785.0 | 676.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -11.11 | 268.01 | 13.44 | 216.63 | 0.3838 | 796.0 | 638.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.02 | 264.82 | 10.25 | 214.50 | 0.3123 | 701.0 | 607.8 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -9.34 | 263.84 | 9.26 | 209.67 | 0.3223 | -1000.0 | -833.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -8.90 | 263.73 | 9.16 | 210.08 | 0.3151 | -868.0 | -687.9 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -9.07 | 263.18 | 8.61 | 208.29 | 0.3132 | -927.0 | -645.6 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -11.17 | 262.52 | 7.95 | 203.66 | 0.3396 | -1000.0 | -830.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -11.07 | 262.31 | 7.73 | 203.19 | 0.3367 | -943.0 | -734.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -20.51 | 261.21 | 6.64 | 193.24 | 0.4748 | -748.0 | -589.0 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -13.27 | 260.84 | 6.27 | 197.13 | 0.3624 | -602.0 | -552.8 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -13.07 | 260.40 | 5.83 | 196.15 | 0.3573 | -836.0 | -589.1 | |
| 0.00 | 5.65 | 0.00 | 3.03 | -14.84 | 260.32 | 5.75 | 194.64 | 0.3846 | 879.0 | 796.5 | |
| 0.62 | 3.27 | 0.33 | 1.76 | -15.55 | 259.96 | 5.39 | 193.33 | 0.3943 | 985.7 | 757.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.61 | 259.25 | 4.68 | 193.39 | 0.3451 | -955.0 | -768.5 | |
| 14.22 | 154.31 | 7.55 | 82.03 | -13.57 | 259.08 | 4.51 | 192.31 | 0.3598 | -1354.6 | -420.1 | |
| 0.00 | 2.83 | 0.00 | 1.49 | -12.73 | 258.91 | 4.34 | 192.37 | 0.3459 | -1016.0 | -837.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.12 | 258.86 | 4.28 | 191.98 | 0.3518 | -345.0 | -281.1 | |
| 14.57 | -39.00 | 7.75 | -39.00 | -14.02 | 258.84 | 4.27 | 191.42 | 0.3662 | -1145.1 | 999999 | |
| 0.79 | 2.56 | 0.43 | 1.38 | -15.73 | 258.65 | 4.08 | 190.08 | 0.3929 | -1031.6 | -784.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.18 | 258.35 | 3.77 | 189.15 | 0.3993 | -774.0 | -592.8 | |
| 8.48 | 17.58 | 4.44 | 9.20 | -11.70 | 257.60 | 3.03 | 189.20 | 0.3252 | 1114.7 | 690.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -12.15 | 257.55 | 2.97 | 188.82 | 0.3323 | 227.0 | 122.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.31 | 257.52 | 2.94 | 188.66 | 0.3348 | 376.0 | 281.0 | |
| 1.24 | 4.68 | 0.65 | 2.47 | -13.20 | 257.47 | 2.89 | 188.12 | 0.3492 | 792.4 | 538.1 | |
| 2.12 | -45.00 | 1.11 | -45.00 | -11.67 | 257.27 | 2.69 | 188.20 | 0.3238 | 1024.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.10 | 257.16 | 2.58 | 187.30 | 0.3469 | -829.0 | -645.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.43 | 257.12 | 2.55 | 187.45 | 0.3359 | -207.0 | -195.5 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -13.65 | 257.10 | 2.53 | 186.94 | 0.3557 | 382.0 | 345.2 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -11.92 | 257.08 | 2.51 | 187.55 | 0.3275 | 622.0 | 299.3 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -13.80 | 256.70 | 2.12 | 185.80 | 0.3576 | -986.0 | -794.8 | |
| 3.89 | 5.92 | 2.06 | 3.14 | -13.93 | 256.42 | 1.85 | 185.02 | 0.3592 | -981.9 | -768.0 | |
| 1.41 | 3.00 | 0.75 | 1.59 | -13.71 | 256.33 | 1.75 | 184.82 | 0.3554 | -1150.2 | -834.6 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -13.51 | 256.11 | 1.53 | 184.26 | 0.3519 | -852.0 | -712.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.19 | 255.92 | 1.35 | 183.81 | 0.3465 | -800.0 | -651.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -7.89 | 254.99 | 0.42 | 181.63 | 0.2573 | 729.0 | 573.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
