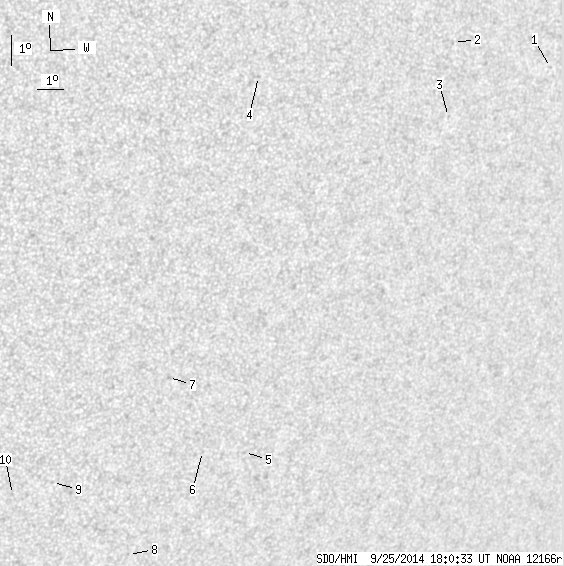

SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.97 | 0.00 | 6.55 | -16.93 | 286.56 | 32.54 | 232.86 | 0.6547 | 574.4 | 463.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.51 | -9.46 | 297.39 | 43.37 | 249.75 | 0.7243 | 483.0 | 443.9 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -8.34 | 293.29 | 39.27 | 249.30 | 0.6718 | 493.0 | 391.7 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -10.66 | 293.41 | 39.39 | 246.17 | 0.6841 | 445.0 | 388.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -8.86 | 286.03 | 32.01 | 244.11 | 0.5844 | 772.0 | 615.5 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -21.13 | 287.63 | 33.61 | 228.82 | 0.6884 | 540.0 | 433.9 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -20.98 | 285.98 | 31.96 | 227.61 | 0.6715 | 446.0 | 546.0 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -18.38 | 284.15 | 30.13 | 229.13 | 0.6322 | 677.0 | 563.9 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -24.38 | 284.02 | 30.00 | 222.03 | 0.6824 | 582.0 | 381.9 | |
| 0.00 | 1.32 | 0.00 | 0.84 | -21.68 | 280.57 | 26.55 | 221.64 | 0.6275 | 715.0 | 494.0 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -22.01 | 279.20 | 25.18 | 219.79 | 0.6185 | 591.0 | 417.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
