SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.86 | 46.88 | 3.07 | 28.21 | 8.28 | 288.42 | 34.39 | 274.67 | 0.5620 | -6.3 | -225.1 | |
|
previous
or next observation for the same group /

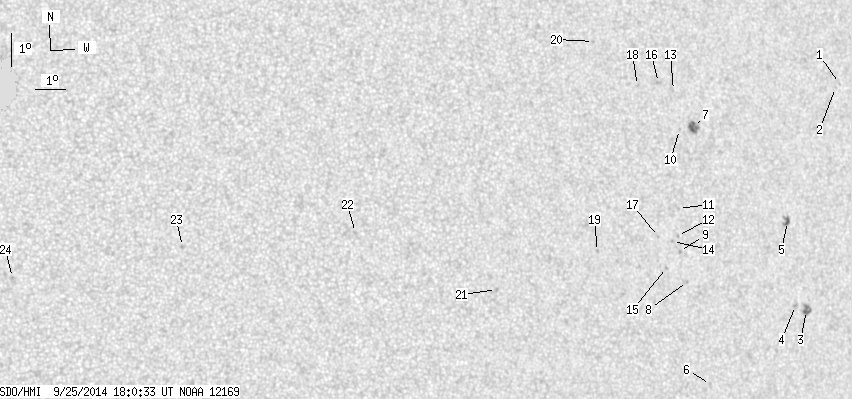

back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.58 | 11.86 | 294.89 | 40.86 | 280.14 | 0.6528 | -550.0 | -450.3 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 11.76 | 294.70 | 40.68 | 280.00 | 0.6503 | -586.0 | -668.3 | |
| 2.83 | 6.98 | 1.79 | 4.42 | 5.17 | 292.73 | 38.70 | 269.58 | 0.6250 | -857.9 | -655.9 | |
| 0.00 | 2.12 | 0.00 | 1.33 | 5.35 | 292.31 | 38.29 | 269.82 | 0.6192 | -722.0 | -624.9 | |
| 2.03 | 5.74 | 1.28 | 3.60 | 7.89 | 292.24 | 38.22 | 273.94 | 0.6165 | -777.7 | -671.8 | |
| 0.00 | 1.85 | 0.00 | 1.12 | 3.21 | 288.99 | 34.97 | 265.67 | 0.5761 | 612.0 | 483.0 | |
| 0.00 | 9.01 | 0.00 | 5.44 | 10.96 | 289.05 | 35.03 | 279.23 | 0.5730 | -982.0 | -822.2 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 6.36 | 288.33 | 34.31 | 271.10 | 0.5625 | 662.0 | 472.5 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 7.28 | 288.11 | 34.09 | 272.73 | 0.5588 | 485.0 | 514.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 10.94 | 288.52 | 34.50 | 279.24 | 0.5656 | -681.0 | -587.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 8.57 | 288.20 | 34.18 | 275.05 | 0.5598 | 351.0 | 349.4 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 7.77 | 288.08 | 34.06 | 273.60 | 0.5582 | 265.0 | 264.5 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 12.12 | 288.46 | 34.44 | 281.35 | 0.5662 | -593.0 | -462.4 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 7.60 | 287.89 | 33.86 | 273.29 | 0.5554 | 537.0 | 460.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 6.83 | 287.60 | 33.58 | 271.89 | 0.5516 | 810.0 | 622.1 | |
| 0.00 | 2.03 | 0.00 | 1.21 | 12.40 | 287.95 | 33.93 | 281.93 | 0.5593 | -632.0 | -524.8 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 7.78 | 287.39 | 33.37 | 273.61 | 0.5482 | 697.0 | 537.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 12.36 | 287.16 | 33.14 | 282.01 | 0.5481 | -619.0 | -479.9 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 7.47 | 285.17 | 31.15 | 272.96 | 0.5157 | 756.0 | 624.0 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.79 | 285.77 | 31.75 | 284.98 | 0.5310 | -756.0 | -566.2 | |
| 0.00 | 1.77 | 0.00 | 0.99 | 6.55 | 281.59 | 27.57 | 270.83 | 0.4618 | 816.0 | 624.5 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 8.50 | 276.98 | 22.96 | 275.43 | 0.3892 | 662.0 | 586.3 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 8.32 | 271.37 | 17.35 | 275.69 | 0.2978 | 855.0 | 695.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 7.56 | 266.01 | 11.99 | 273.69 | 0.2072 | 987.0 | 739.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
