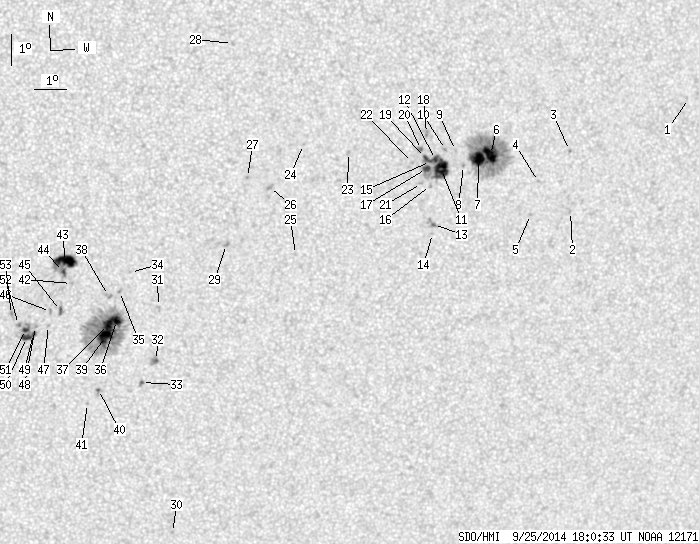

SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.27 | 473.65 | 57.61 | 252.53 | -11.19 | 264.11 | 10.09 | 208.53 | 0.3701 | 225.3 | 59.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.25 | -7.09 | 277.02 | 23.00 | 238.99 | 0.4542 | 486.0 | 521.2 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -10.45 | 273.36 | 19.34 | 228.10 | 0.4394 | 799.0 | 584.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -8.53 | 273.22 | 19.20 | 231.34 | 0.4182 | 765.0 | 711.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -9.46 | 272.27 | 18.25 | 228.18 | 0.4163 | -751.0 | -498.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.49 | 272.07 | 18.05 | 226.05 | 0.4250 | 741.0 | 480.2 | |
| 11.39 | 146.88 | 6.12 | 78.86 | -8.55 | 270.69 | 16.67 | 227.26 | 0.3880 | 1282.6 | 418.7 | |
| 11.84 | -6.00 | 6.35 | -6.00 | -8.70 | 270.32 | 16.30 | 226.33 | 0.3852 | 1334.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -8.87 | 269.85 | 15.83 | 225.17 | 0.3817 | 869.0 | 764.8 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.39 | 269.58 | 15.56 | 225.58 | 0.3732 | 868.0 | 773.3 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -8.35 | 269.26 | 15.24 | 225.06 | 0.3690 | 974.0 | 820.9 | |
| 18.19 | 47.87 | 9.72 | 25.53 | -8.97 | 269.16 | 15.14 | 223.70 | 0.3751 | 1062.1 | 741.1 | |
| 1.85 | -11.00 | 0.99 | -11.00 | -8.65 | 268.96 | 14.94 | 223.91 | 0.3691 | 1269.0 | 999999 | |
| 0.53 | 6.80 | 0.29 | 3.66 | -10.69 | 268.99 | 14.97 | 220.33 | 0.3938 | 966.3 | 774.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -10.97 | 268.97 | 14.95 | 219.83 | 0.3971 | 596.0 | 485.7 | |
| 0.26 | -11.00 | 0.14 | -11.00 | -8.71 | 268.81 | 14.78 | 223.50 | 0.3680 | 1333.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -9.46 | 268.84 | 14.82 | 222.17 | 0.3773 | 767.0 | 670.8 | |
| 3.44 | -11.00 | 1.84 | -11.00 | -8.92 | 268.69 | 14.67 | 222.87 | 0.3693 | 1025.5 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.22 | -7.83 | 268.65 | 14.63 | 224.89 | 0.3560 | 887.0 | 843.7 | |
| 1.59 | -11.00 | 0.85 | -11.00 | -8.58 | 268.64 | 14.62 | 223.43 | 0.3647 | 1123.5 | 999999 | |
| 0.44 | 2.91 | 0.23 | 1.55 | -8.32 | 268.51 | 14.49 | 223.64 | 0.3602 | 1169.0 | 881.0 | |
| 0.00 | 1.77 | 0.00 | 0.94 | -9.38 | 268.55 | 14.53 | 221.74 | 0.3733 | 730.0 | 537.3 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -8.72 | 268.24 | 14.22 | 222.35 | 0.3620 | 838.0 | 659.4 | |
| 0.00 | 2.47 | 0.00 | 1.30 | -8.35 | 266.23 | 12.21 | 218.71 | 0.3360 | -850.0 | -541.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.06 | 264.83 | 10.81 | 215.86 | 0.3183 | 786.0 | 566.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.51 | 264.69 | 10.67 | 209.97 | 0.3646 | 658.0 | 490.4 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -9.38 | 263.81 | 9.79 | 210.99 | 0.3273 | -978.0 | -766.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.05 | 263.12 | 9.10 | 209.69 | 0.3169 | -985.0 | -822.0 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -4.89 | 262.59 | 8.57 | 216.07 | 0.2532 | 824.0 | 595.8 | |
| 0.00 | 2.74 | 0.00 | 1.44 | -11.15 | 262.53 | 8.51 | 205.15 | 0.3431 | -930.0 | -808.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -20.52 | 261.18 | 7.16 | 194.23 | 0.4769 | -767.0 | -532.8 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.08 | 260.48 | 6.45 | 197.77 | 0.3604 | -716.0 | -601.7 | |
| 0.79 | 5.12 | 0.43 | 2.75 | -14.82 | 260.46 | 6.44 | 196.33 | 0.3872 | 991.9 | 799.2 | |
| 0.44 | 2.56 | 0.24 | 1.38 | -15.53 | 260.01 | 5.99 | 194.76 | 0.3963 | 951.0 | 783.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -11.98 | 259.58 | 5.56 | 196.32 | 0.3389 | -888.0 | -645.9 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -12.58 | 259.26 | 5.23 | 194.94 | 0.3470 | -1031.0 | -845.8 | |
| 7.07 | 156.60 | 3.75 | 83.30 | -13.51 | 259.18 | 5.16 | 194.07 | 0.3614 | -1287.1 | -409.8 | |
| 9.01 | -36.00 | 4.79 | -36.00 | -13.64 | 258.94 | 4.91 | 193.34 | 0.3624 | -1389.2 | 999999 | |
| 0.00 | 3.44 | 0.00 | 1.82 | -12.71 | 258.92 | 4.90 | 193.92 | 0.3476 | -839.0 | -806.2 | |
| 15.02 | -36.00 | 7.99 | -36.00 | -14.02 | 258.85 | 4.83 | 192.87 | 0.3682 | -1131.3 | 999999 | |
| 0.44 | 2.56 | 0.24 | 1.38 | -15.74 | 258.67 | 4.65 | 191.44 | 0.3947 | -1080.2 | -840.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -16.19 | 258.33 | 4.31 | 190.42 | 0.4008 | -714.0 | -596.7 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -12.31 | 257.77 | 3.75 | 190.97 | 0.3372 | -36.0 | -87.6 | |
| 17.05 | 32.68 | 8.92 | 17.12 | -11.61 | 257.58 | 3.55 | 190.81 | 0.3252 | 1122.2 | 404.4 | |
| 1.32 | -43.00 | 0.69 | -43.00 | -11.93 | 257.52 | 3.50 | 190.46 | 0.3302 | 705.6 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.77 | -13.17 | 257.44 | 3.42 | 189.59 | 0.3501 | 773.0 | 539.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.20 | 257.13 | 3.11 | 188.73 | 0.3498 | -812.0 | -705.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.65 | 257.08 | 3.05 | 188.38 | 0.3569 | 266.0 | 334.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -13.68 | 256.67 | 2.65 | 187.28 | 0.3565 | -591.0 | -635.0 | |
| 1.24 | 17.22 | 0.66 | 9.14 | -13.90 | 256.61 | 2.59 | 187.04 | 0.3600 | -956.4 | -725.5 | |
| 4.42 | -49.00 | 2.34 | -49.00 | -14.03 | 256.40 | 2.38 | 186.41 | 0.3617 | -948.6 | 999999 | |
| 1.94 | -49.00 | 1.03 | -49.00 | -13.77 | 256.36 | 2.34 | 186.41 | 0.3574 | -1201.1 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -13.61 | 256.15 | 2.13 | 185.86 | 0.3544 | -1009.0 | -907.9 | |
| 0.00 | 2.38 | 0.00 | 1.26 | -13.29 | 255.93 | 1.91 | 185.35 | 0.3488 | -1055.0 | -840.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
