SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.10 | 69.77 | 6.50 | 37.64 | -15.80 | 249.13 | -4.89 | 168.07 | 0.3975 | -124.9 | 35.6 | |
|
previous
or next observation for the same group /

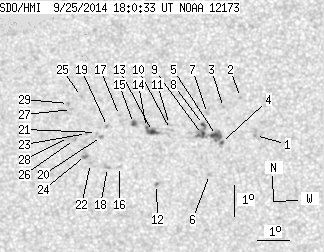

back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.77 | 252.01 | -2.01 | 175.00 | 0.3893 | 789.0 | 708.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.54 | 251.56 | -2.46 | 173.52 | 0.3701 | 812.0 | 667.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.87 | 251.03 | -3.00 | 172.25 | 0.3764 | 915.0 | 703.8 | |
| 0.62 | 25.35 | 0.33 | 13.64 | -16.01 | 250.94 | -3.08 | 172.46 | 0.3949 | 762.3 | 758.7 | |
| 3.89 | -4.00 | 2.09 | -4.00 | -15.78 | 250.79 | -3.23 | 172.01 | 0.3916 | 1056.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -17.06 | 250.55 | -3.47 | 171.89 | 0.4124 | 934.0 | 723.2 | |
| 0.00 | 2.03 | 0.00 | 1.09 | -15.06 | 250.52 | -3.50 | 171.06 | 0.3808 | 822.0 | 582.7 | |
| 0.97 | -4.00 | 0.52 | -4.00 | -15.42 | 250.39 | -3.63 | 170.88 | 0.3868 | 1055.8 | 999999 | |
| 1.77 | -4.00 | 0.95 | -4.00 | -15.75 | 250.35 | -3.67 | 170.93 | 0.3921 | 1082.0 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.09 | -15.59 | 249.36 | -4.66 | 168.44 | 0.3925 | 43.0 | 64.4 | |
| 0.00 | 2.30 | 0.00 | 1.23 | -15.43 | 249.33 | -4.69 | 168.29 | 0.3901 | -56.0 | -52.0 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -17.40 | 248.87 | -5.15 | 168.24 | 0.4224 | 985.0 | 737.9 | |
| 3.27 | 8.21 | 1.76 | 4.43 | -15.66 | 248.79 | -5.23 | 167.12 | 0.3956 | -865.5 | -605.7 | |
| 0.26 | -13.00 | 0.14 | -13.00 | -15.54 | 248.61 | -5.42 | 166.61 | 0.3942 | -1029.7 | 999999 | |
| 1.32 | 2.83 | 0.71 | 1.52 | -15.41 | 248.20 | -5.82 | 165.57 | 0.3938 | -1056.9 | -834.1 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -16.82 | 247.72 | -6.30 | 165.36 | 0.4176 | -140.0 | -212.4 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -15.16 | 247.77 | -6.25 | 164.37 | 0.3916 | -703.0 | -520.4 | |
| 0.00 | 2.12 | 0.00 | 1.16 | -16.86 | 247.34 | -6.69 | 164.54 | 0.4197 | -949.0 | -830.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.52 | 247.38 | -6.64 | 163.72 | 0.3989 | -729.0 | -579.4 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -15.85 | 247.18 | -6.84 | 163.50 | 0.4049 | -812.0 | -688.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.72 | 247.03 | -6.99 | 163.05 | 0.4036 | -324.0 | -380.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.74 | 246.80 | -7.22 | 163.29 | 0.4202 | -784.0 | -531.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.76 | 246.71 | -7.31 | 162.36 | 0.4057 | -798.0 | -654.8 | |
| 0.00 | 3.27 | 0.00 | 1.78 | -16.48 | 246.66 | -7.37 | 162.77 | 0.4169 | -781.0 | -744.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.56 | 246.60 | -7.42 | 161.12 | 0.3880 | -926.0 | -755.6 | |
| 0.00 | 2.03 | 0.00 | 1.10 | -15.96 | 246.33 | -7.69 | 161.65 | 0.4106 | -745.0 | -658.3 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.98 | 246.27 | -7.75 | 160.72 | 0.3962 | -878.0 | -665.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.89 | 246.14 | -7.88 | 161.19 | 0.4106 | -914.0 | -785.7 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -14.79 | 246.19 | -7.84 | 160.35 | 0.3937 | -922.0 | -795.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
