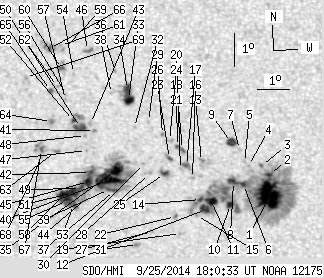

SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.69 | 633.45 | 93.16 | 320.17 | 13.95 | 262.70 | 8.67 | 311.31 | 0.1958 | 80.9 | -57.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.98 | 317.44 | 20.83 | 161.14 | 13.32 | 265.52 | 11.50 | 300.32 | 0.2257 | -1439.8 | -413.4 | |
| 2.12 | -1.00 | 1.08 | -1.00 | 13.96 | 265.55 | 11.53 | 302.69 | 0.2315 | -953.5 | 999999 | |
| 0.44 | 2.30 | 0.22 | 1.17 | 14.24 | 265.31 | 11.29 | 304.24 | 0.2306 | -829.0 | -609.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.25 | 264.90 | 10.88 | 305.23 | 0.2250 | -868.0 | -626.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.34 | 264.78 | 10.76 | 305.87 | 0.2242 | -553.0 | -453.3 | |
| 3.09 | -1.00 | 1.57 | -1.00 | 13.67 | 264.71 | 10.69 | 303.47 | 0.2171 | -997.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.74 | 264.64 | 10.62 | 307.67 | 0.2262 | -725.0 | -542.8 | |
| 4.68 | -1.00 | 2.37 | -1.00 | 13.77 | 264.40 | 10.38 | 304.61 | 0.2137 | -969.6 | 999999 | |
| 5.12 | 6.62 | 2.60 | 3.37 | 14.95 | 264.40 | 10.38 | 309.06 | 0.2252 | -1044.8 | -732.9 | |
| 3.62 | -1.00 | 1.83 | -1.00 | 13.08 | 264.28 | 10.26 | 302.08 | 0.2057 | -1154.0 | 999999 | |
| 7.33 | -1.00 | 3.70 | -1.00 | 13.18 | 263.69 | 9.67 | 304.01 | 0.1981 | -1241.5 | 999999 | |
| 6.01 | -1.00 | 3.03 | -1.00 | 12.94 | 263.49 | 9.47 | 303.50 | 0.1932 | -1121.3 | 999999 | |
| 0.00 | 3.62 | 0.00 | 1.83 | 14.40 | 263.43 | 9.41 | 309.68 | 0.2066 | 371.0 | 350.0 | |
| 1.77 | -1.00 | 0.89 | -1.00 | 13.25 | 263.35 | 9.33 | 305.23 | 0.1940 | -1145.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.77 | 263.20 | 9.18 | 303.49 | 0.1875 | -875.0 | -705.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 13.89 | 263.12 | 9.10 | 308.56 | 0.1973 | -713.0 | -558.7 | |
| 1.32 | 5.74 | 0.67 | 2.90 | 14.29 | 262.95 | 8.93 | 310.66 | 0.1992 | 999.0 | 713.8 | |
| 0.79 | 4.50 | 0.40 | 2.28 | 14.77 | 262.85 | 8.82 | 312.85 | 0.2033 | 854.8 | 688.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.24 | 262.69 | 8.66 | 302.44 | 0.1752 | -828.0 | -619.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.17 | 262.76 | 8.74 | 310.80 | 0.1954 | 504.0 | 354.0 | |
| 0.62 | -18.00 | 0.31 | -18.00 | 14.87 | 262.69 | 8.67 | 313.69 | 0.2024 | 792.9 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 12.75 | 262.55 | 8.53 | 305.32 | 0.1781 | 780.0 | 597.0 | |
| 0.79 | 3.80 | 0.40 | 1.92 | 14.51 | 262.43 | 8.40 | 313.20 | 0.1950 | 868.0 | 698.2 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 15.06 | 262.45 | 8.43 | 315.16 | 0.2016 | 754.0 | 685.7 | |
| 2.30 | 4.50 | 1.16 | 2.27 | 14.06 | 262.25 | 8.23 | 312.00 | 0.1877 | 880.7 | 506.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 15.24 | 262.24 | 8.21 | 316.54 | 0.2013 | 792.0 | 616.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.31 | 261.82 | 7.80 | 305.52 | 0.1636 | -845.0 | -602.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.07 | 261.78 | 7.76 | 313.66 | 0.1819 | 652.0 | 548.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 15.64 | 261.81 | 7.79 | 319.41 | 0.2015 | -799.0 | -531.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.37 | 261.61 | 7.58 | 315.54 | 0.1834 | -610.0 | -393.3 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 11.93 | 261.34 | 7.32 | 305.16 | 0.1532 | 1048.0 | 855.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.47 | 261.36 | 7.34 | 320.45 | 0.1943 | 578.0 | 422.0 | |
| 7.95 | 21.46 | 4.02 | 10.86 | 16.32 | 261.21 | 7.19 | 323.77 | 0.2041 | -1179.6 | -730.9 | |
| 4.86 | -33.00 | 2.46 | -33.00 | 16.63 | 261.19 | 7.17 | 324.75 | 0.2080 | -1112.6 | 999999 | |
| 15.02 | 169.58 | 7.55 | 85.11 | 14.17 | 260.72 | 6.70 | 318.21 | 0.1706 | 1206.0 | 317.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 17.18 | 260.83 | 6.81 | 327.61 | 0.2124 | 825.0 | 695.6 | |
| 1.41 | -35.00 | 0.71 | -35.00 | 13.57 | 260.68 | 6.65 | 315.88 | 0.1625 | 871.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 16.51 | 260.68 | 6.66 | 326.36 | 0.2015 | -690.0 | -441.8 | |
| 1.15 | -35.00 | 0.58 | -35.00 | 13.60 | 260.49 | 6.47 | 316.82 | 0.1607 | 946.8 | 999999 | |
| 25.17 | -35.00 | 12.64 | -35.00 | 13.88 | 260.47 | 6.45 | 318.09 | 0.1639 | 1165.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 15.40 | 260.11 | 6.08 | 325.31 | 0.1804 | 1015.0 | 830.9 | |
| 2.74 | -35.00 | 1.37 | -35.00 | 14.12 | 259.94 | 5.92 | 321.45 | 0.1613 | -711.1 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 15.61 | 259.99 | 5.97 | 326.51 | 0.1822 | 802.0 | 648.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 13.43 | 259.89 | 5.87 | 318.76 | 0.1517 | 160.0 | 187.0 | |
| 7.95 | -35.00 | 3.99 | -35.00 | 13.85 | 259.87 | 5.85 | 320.68 | 0.1570 | 1014.0 | 999999 | |
| 0.00 | 3.89 | 0.00 | 1.97 | 17.84 | 259.97 | 5.94 | 332.53 | 0.2147 | 1049.0 | 813.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 14.79 | 259.84 | 5.82 | 324.45 | 0.1693 | -622.0 | -422.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 15.25 | 259.82 | 5.80 | 326.09 | 0.1755 | 1006.0 | 789.4 | |
| 3.00 | -35.00 | 1.50 | -35.00 | 13.64 | 259.62 | 5.60 | 321.03 | 0.1515 | 1183.1 | 999999 | |
| 4.68 | 19.08 | 2.36 | 9.60 | 15.49 | 259.67 | 5.65 | 327.55 | 0.1776 | 1197.8 | 768.4 | |
| 7.07 | -35.00 | 3.54 | -35.00 | 13.53 | 259.40 | 5.38 | 321.63 | 0.1475 | 1268.2 | 999999 | |
| 1.24 | -50.00 | 0.62 | -50.00 | 15.71 | 259.46 | 5.44 | 329.18 | 0.1788 | 1089.4 | 999999 | |
| 3.36 | -35.00 | 1.68 | -35.00 | 13.16 | 259.39 | 5.37 | 320.06 | 0.1426 | 973.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 17.14 | 259.50 | 5.48 | 332.80 | 0.2005 | 790.0 | 618.9 | |
| 6.54 | -35.00 | 3.27 | -35.00 | 13.29 | 259.21 | 5.19 | 321.58 | 0.1422 | 1223.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 16.50 | 259.26 | 5.24 | 332.27 | 0.1890 | 774.0 | 581.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 16.35 | 259.22 | 5.20 | 332.04 | 0.1864 | 990.0 | 702.2 | |
| 7.33 | -35.00 | 3.67 | -35.00 | 13.47 | 259.09 | 5.07 | 323.02 | 0.1435 | 1219.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 17.88 | 259.21 | 5.18 | 335.66 | 0.2096 | 923.0 | 806.8 | |
| 1.06 | 4.06 | 0.54 | 2.05 | 17.30 | 259.12 | 5.10 | 334.76 | 0.2001 | 1135.8 | 821.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 18.00 | 259.11 | 5.09 | 336.29 | 0.2109 | 748.0 | 614.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 16.75 | 258.98 | 4.96 | 334.12 | 0.1906 | 891.0 | 700.1 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 14.80 | 258.90 | 4.88 | 329.05 | 0.1607 | 945.0 | 820.0 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 15.69 | 258.77 | 4.75 | 332.40 | 0.1727 | 1172.0 | 1075.3 | |
| 1.06 | 2.56 | 0.53 | 1.29 | 16.63 | 258.76 | 4.74 | 334.86 | 0.1871 | 1166.0 | 918.7 | |
| 1.15 | 9.54 | 0.58 | 4.83 | 17.91 | 258.76 | 4.74 | 337.58 | 0.2072 | 1183.5 | 854.6 | |
| 0.97 | 9.36 | 0.49 | 4.70 | 14.84 | 258.43 | 4.41 | 331.62 | 0.1572 | 1201.0 | 841.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.63 | 258.43 | 4.41 | 330.97 | 0.1540 | 932.0 | 728.4 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 17.03 | 257.98 | 3.96 | 339.37 | 0.1883 | 812.0 | 681.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
