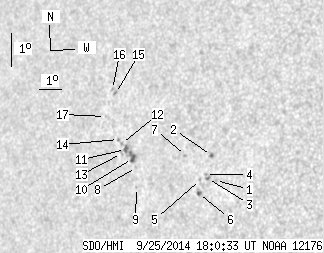

SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.05 | 28.34 | 2.97 | 20.58 | 6.92 | 206.68 | -47.34 | 87.01 | 0.7330 | 73.6 | 129.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.43 | 6.43 | 209.53 | -44.49 | 87.91 | 0.6992 | -602.0 | -479.3 | |
| 0.00 | 1.77 | 0.00 | 1.22 | 7.16 | 209.28 | -44.75 | 86.84 | 0.7019 | -768.0 | -634.8 | |
| 0.00 | 1.68 | 0.00 | 1.17 | 6.46 | 209.19 | -44.83 | 87.84 | 0.7034 | -832.0 | -695.4 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 6.57 | 209.09 | -44.93 | 87.67 | 0.7045 | -535.0 | -455.5 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 6.40 | 208.89 | -45.13 | 87.89 | 0.7071 | -207.0 | -242.8 | |
| 0.79 | 2.65 | 0.56 | 1.85 | 5.98 | 208.85 | -45.17 | 88.49 | 0.7079 | -629.3 | -471.2 | |
| 0.00 | 1.15 | 0.00 | 0.81 | 7.07 | 208.16 | -45.86 | 86.90 | 0.7155 | -720.0 | -543.5 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 6.52 | 206.05 | -47.97 | 87.49 | 0.7410 | 325.0 | 369.2 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 5.92 | 206.12 | -47.90 | 88.31 | 0.7406 | 369.0 | 318.7 | |
| 1.94 | 10.33 | 1.43 | 7.64 | 6.77 | 205.84 | -48.18 | 87.14 | 0.7433 | 763.2 | 656.2 | |
| 1.32 | -10.00 | 0.98 | -10.00 | 7.01 | 205.48 | -48.54 | 86.79 | 0.7473 | 788.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 7.18 | 205.28 | -48.74 | 86.55 | 0.7495 | 571.0 | 513.7 | |
| 0.00 | 1.59 | 0.00 | 1.18 | 6.88 | 205.32 | -48.70 | 86.96 | 0.7493 | 356.0 | 289.6 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 7.28 | 205.12 | -48.90 | 86.40 | 0.7512 | 492.0 | 397.2 | |
| 0.00 | 1.77 | 0.00 | 1.33 | 8.64 | 204.77 | -49.26 | 84.57 | 0.7547 | 472.0 | 450.9 | |
| 0.00 | 0.88 | 0.00 | 0.67 | 8.75 | 204.61 | -49.42 | 84.42 | 0.7565 | 364.0 | 345.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 7.92 | 204.42 | -49.60 | 85.52 | 0.7589 | 452.0 | 420.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
