SDO HMI 2014-09-25 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.74 | 38.77 | 5.46 | 23.68 | 7.96 | 288.50 | 35.59 | 273.98 | 0.5789 | 22.6 | -57.1 | |
|
previous
or next observation for the same group /

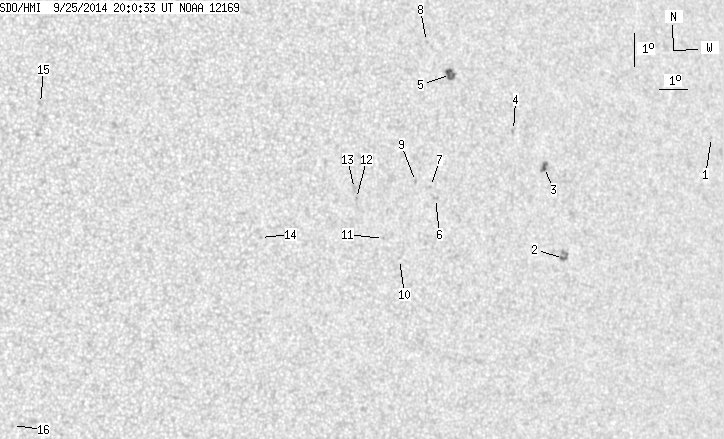

back to the solar disc SDO HMI 2014-09-25 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.69 | 8.23 | 299.26 | 46.34 | 274.74 | 0.7208 | -505.0 | -365.1 | |
| 1.50 | 7.24 | 0.97 | 4.66 | 5.11 | 292.75 | 39.83 | 269.64 | 0.6403 | -715.2 | -642.1 | |
| 2.38 | 4.86 | 1.52 | 3.10 | 7.90 | 292.27 | 39.35 | 273.98 | 0.6319 | -823.8 | -655.8 | |
| 0.00 | 1.85 | 0.00 | 1.17 | 9.10 | 291.20 | 38.29 | 275.89 | 0.6173 | 598.0 | 470.2 | |
| 4.86 | 8.13 | 2.97 | 4.97 | 10.95 | 289.03 | 36.12 | 279.09 | 0.5883 | -858.3 | -675.3 | |
| 0.00 | 1.77 | 0.00 | 1.07 | 7.27 | 288.04 | 35.13 | 272.76 | 0.5736 | 593.0 | 528.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 7.65 | 287.89 | 34.97 | 273.41 | 0.5713 | 553.0 | 507.9 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 12.00 | 288.28 | 35.36 | 280.99 | 0.5789 | -458.0 | -429.8 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 7.83 | 287.35 | 34.44 | 273.72 | 0.5636 | 608.0 | 520.2 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 5.53 | 286.58 | 33.67 | 269.53 | 0.5539 | 508.0 | 522.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 6.20 | 286.05 | 33.13 | 270.69 | 0.5455 | 730.0 | 567.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 7.47 | 285.17 | 32.26 | 272.98 | 0.5320 | 777.0 | 670.6 | |
| 0.00 | 3.71 | 0.00 | 2.17 | 7.77 | 285.13 | 32.21 | 273.55 | 0.5313 | 758.0 | 560.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 6.51 | 281.72 | 28.81 | 270.86 | 0.4808 | 776.0 | 653.2 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 10.91 | 274.63 | 21.72 | 282.05 | 0.3731 | 754.0 | 516.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 1.27 | 273.31 | 20.40 | 255.32 | 0.3618 | -779.0 | -541.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
