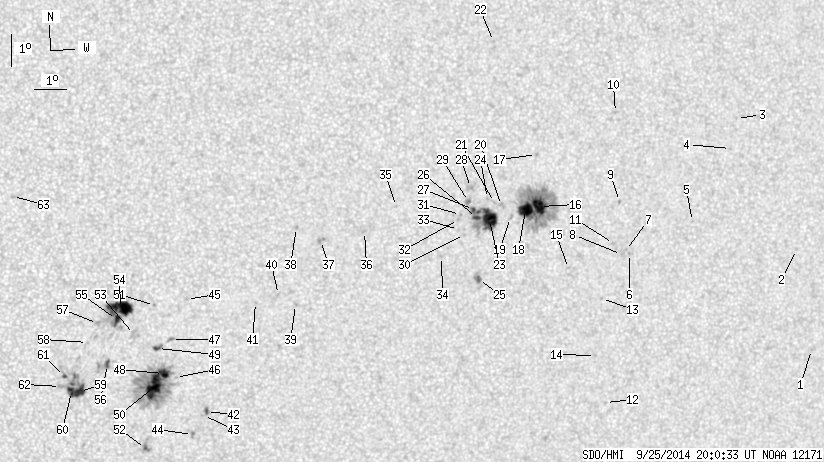

SDO HMI 2014-09-25 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.11 | 485.12 | 69.34 | 259.53 | -11.18 | 263.86 | 10.94 | 210.20 | 0.3771 | 286.5 | 44.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.37 | -13.54 | 280.18 | 27.27 | 232.88 | 0.5607 | 645.0 | 582.3 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.32 | 279.32 | 26.41 | 236.96 | 0.5240 | 605.0 | 398.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -6.12 | 277.02 | 24.10 | 242.02 | 0.4617 | 608.0 | 467.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -7.04 | 276.87 | 23.95 | 240.12 | 0.4666 | 645.0 | 577.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -9.26 | 275.74 | 22.83 | 234.84 | 0.4703 | 644.0 | 575.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.16 | 273.73 | 20.82 | 230.69 | 0.4540 | 696.0 | 579.1 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -10.06 | 273.60 | 20.68 | 230.67 | 0.4514 | 699.0 | 518.2 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.18 | 273.47 | 20.56 | 230.30 | 0.4511 | 754.0 | 654.0 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.52 | 273.31 | 20.39 | 233.06 | 0.4330 | 792.0 | 675.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -5.75 | 273.05 | 20.14 | 238.19 | 0.4048 | 732.0 | 562.5 | |
| 0.00 | 1.32 | 0.00 | 0.73 | -9.82 | 273.19 | 20.27 | 230.53 | 0.4442 | 862.0 | 641.3 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -14.89 | 273.34 | 20.42 | 222.76 | 0.4987 | 598.0 | 488.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.54 | 272.92 | 20.00 | 227.23 | 0.4584 | 714.0 | 563.8 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -13.36 | 272.87 | 19.95 | 224.32 | 0.4771 | 625.0 | 438.5 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -10.55 | 271.78 | 18.86 | 227.20 | 0.4349 | 692.0 | 565.2 | |
| 12.10 | 127.01 | 6.54 | 68.64 | -8.56 | 270.74 | 17.82 | 229.15 | 0.4018 | 1236.2 | 409.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -6.94 | 270.57 | 17.66 | 232.09 | 0.3832 | -531.0 | -516.4 | |
| 13.43 | -16.00 | 7.24 | -16.00 | -8.64 | 270.29 | 17.38 | 228.28 | 0.3973 | 1302.5 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -8.87 | 269.83 | 16.91 | 227.06 | 0.3943 | 730.0 | 663.1 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -8.49 | 269.52 | 16.61 | 227.27 | 0.3865 | 835.0 | 687.1 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -8.38 | 269.30 | 16.38 | 227.07 | 0.3827 | 805.0 | 577.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -3.42 | 269.12 | 16.20 | 237.85 | 0.3305 | 828.0 | 710.2 | |
| 21.20 | 47.61 | 11.38 | 25.53 | -8.91 | 269.16 | 16.25 | 225.83 | 0.3870 | 1094.2 | 704.6 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -8.25 | 269.07 | 16.15 | 226.92 | 0.3786 | 685.0 | 481.4 | |
| 1.50 | 6.18 | 0.81 | 3.35 | -10.78 | 268.90 | 15.99 | 222.05 | 0.4057 | 1002.2 | 823.1 | |
| 2.47 | -23.00 | 1.32 | -23.00 | -8.83 | 268.75 | 15.83 | 225.23 | 0.3813 | 1100.8 | 999999 | |
| 0.97 | -23.00 | 0.52 | -23.00 | -8.58 | 268.64 | 15.72 | 225.51 | 0.3773 | 1135.2 | 999999 | |
| 0.00 | 5.74 | 0.00 | 3.06 | -7.89 | 268.52 | 15.60 | 226.63 | 0.3681 | 916.0 | 750.0 | |
| 0.00 | 3.00 | 0.00 | 1.60 | -8.32 | 268.47 | 15.56 | 225.69 | 0.3724 | 1127.0 | 900.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.35 | 268.39 | 15.47 | 223.61 | 0.3833 | 644.0 | 540.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -8.72 | 268.24 | 15.32 | 224.49 | 0.3743 | 867.0 | 708.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -8.88 | 268.18 | 15.26 | 224.09 | 0.3754 | 953.0 | 713.4 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.19 | 268.19 | 15.28 | 223.54 | 0.3792 | 737.0 | 600.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.02 | 267.69 | 14.78 | 221.11 | 0.3837 | 816.0 | 608.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -8.41 | 266.22 | 13.30 | 221.02 | 0.3483 | -783.0 | -569.4 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -9.16 | 265.24 | 12.33 | 217.50 | 0.3478 | -792.0 | -714.8 | |
| 0.00 | 3.36 | 0.00 | 1.77 | -9.40 | 263.88 | 10.97 | 213.90 | 0.3381 | -1024.0 | -755.7 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -8.98 | 263.13 | 10.21 | 212.72 | 0.3254 | -884.0 | -723.7 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -11.40 | 263.17 | 10.26 | 209.15 | 0.3599 | -715.0 | -615.0 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -11.07 | 262.63 | 9.72 | 208.30 | 0.3510 | -951.0 | -673.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.31 | 261.93 | 9.01 | 206.22 | 0.3491 | -791.0 | -665.0 | |
| 1.24 | 2.91 | 0.67 | 1.57 | -14.77 | 260.51 | 7.60 | 199.11 | 0.3922 | 963.4 | 741.2 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -14.90 | 260.42 | 7.51 | 198.79 | 0.3937 | 519.0 | 491.9 | |
| 0.00 | 2.38 | 0.00 | 1.29 | -15.51 | 260.10 | 7.18 | 197.54 | 0.4014 | 965.0 | 728.4 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.18 | 259.79 | 6.87 | 200.73 | 0.3332 | -730.0 | -439.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.66 | 259.51 | 6.59 | 197.63 | 0.3700 | -547.0 | -549.1 | |
| 0.00 | 2.91 | 0.00 | 1.54 | -12.44 | 259.35 | 6.44 | 198.29 | 0.3504 | -1050.0 | -752.1 | |
| 6.45 | 124.45 | 3.43 | 66.35 | -13.52 | 259.13 | 6.22 | 196.79 | 0.3662 | -1296.5 | -465.9 | |
| 1.59 | 4.15 | 0.84 | 2.20 | -12.72 | 258.93 | 6.01 | 196.91 | 0.3526 | -1063.4 | -844.6 | |
| 23.41 | -48.00 | 12.48 | -48.00 | -13.94 | 258.86 | 5.95 | 195.78 | 0.3714 | -1218.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.35 | 258.81 | 5.89 | 197.80 | 0.3306 | 758.0 | 559.9 | |
| 0.79 | 6.36 | 0.43 | 3.44 | -15.94 | 258.63 | 5.72 | 193.86 | 0.4017 | -1075.2 | -791.0 | |
| 0.00 | 6.09 | 0.00 | 3.21 | -12.26 | 258.21 | 5.29 | 195.33 | 0.3422 | -175.0 | 67.7 | |
| 24.73 | 49.20 | 12.96 | 25.79 | -11.43 | 257.76 | 4.84 | 194.73 | 0.3270 | 1119.3 | 328.0 | |
| 4.77 | -54.00 | 2.50 | -54.00 | -11.78 | 257.64 | 4.73 | 194.12 | 0.3321 | 754.8 | 999999 | |
| 1.77 | 9.10 | 0.94 | 4.82 | -13.21 | 257.39 | 4.47 | 192.44 | 0.3541 | 653.2 | -234.6 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -11.90 | 257.06 | 4.14 | 192.36 | 0.3319 | 259.0 | 31.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.50 | 256.76 | 3.84 | 191.13 | 0.3406 | -363.0 | -348.3 | |
| 8.13 | 34.45 | 4.32 | 18.29 | -14.07 | 256.53 | 3.62 | 189.69 | 0.3652 | -960.5 | -840.5 | |
| 4.68 | -59.00 | 2.49 | -59.00 | -14.07 | 256.29 | 3.37 | 189.04 | 0.3645 | -993.1 | 999999 | |
| 0.88 | -59.00 | 0.47 | -59.00 | -13.58 | 256.06 | 3.15 | 188.66 | 0.3561 | -1025.9 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.50 | -13.90 | 255.94 | 3.03 | 188.20 | 0.3610 | -685.0 | -615.5 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -7.89 | 254.43 | 1.52 | 185.84 | 0.2586 | 616.0 | 647.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
