SDO HMI 2014-09-25 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.51 | 95.15 | 11.03 | 51.17 | -15.75 | 248.98 | -2.83 | 172.99 | 0.3917 | -67.6 | -169.4 | |
|
previous
or next observation for the same group /

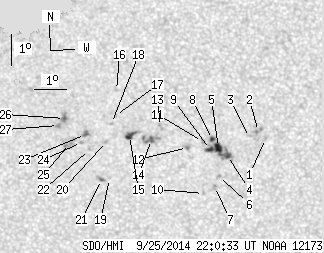

back to the solar disc SDO HMI 2014-09-25 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.81 | -15.60 | 252.36 | 0.55 | 181.37 | 0.3853 | 738.0 | 567.8 | |
| 0.00 | 3.98 | 0.00 | 2.13 | -15.37 | 252.14 | 0.33 | 180.83 | 0.3815 | 830.0 | 795.1 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -15.57 | 251.86 | 0.05 | 180.12 | 0.3846 | 519.0 | 647.6 | |
| 2.83 | 26.77 | 1.52 | 14.40 | -16.16 | 251.17 | -0.64 | 178.43 | 0.3943 | 967.6 | 739.7 | |
| 5.65 | -4.00 | 3.04 | -4.00 | -15.89 | 250.89 | -0.92 | 177.72 | 0.3902 | 1125.1 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.00 | -16.84 | 250.88 | -0.93 | 177.80 | 0.4055 | 813.0 | 725.2 | |
| 0.00 | 2.03 | 0.00 | 1.10 | -17.17 | 250.76 | -1.06 | 177.53 | 0.4108 | 915.0 | 712.1 | |
| 1.59 | -4.00 | 0.85 | -4.00 | -15.63 | 250.70 | -1.11 | 177.22 | 0.3861 | 1029.7 | 999999 | |
| 2.65 | -4.00 | 1.43 | -4.00 | -15.96 | 250.64 | -1.17 | 177.10 | 0.3914 | 891.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -17.41 | 250.41 | -1.40 | 176.75 | 0.4148 | 826.0 | 643.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -15.70 | 250.39 | -1.42 | 176.45 | 0.3875 | 732.0 | 553.3 | |
| 0.00 | 2.47 | 0.00 | 1.33 | -15.90 | 249.92 | -1.89 | 175.32 | 0.3912 | 504.0 | 482.1 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -15.22 | 249.09 | -2.73 | 173.06 | 0.3816 | -788.0 | -611.3 | |
| 1.50 | 10.34 | 0.81 | 5.55 | -15.64 | 248.80 | -3.01 | 172.49 | 0.3890 | -1101.2 | -749.4 | |
| 3.98 | 8.13 | 2.14 | 4.36 | -15.51 | 248.11 | -3.70 | 170.75 | 0.3886 | -965.8 | -713.8 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -14.06 | 247.74 | -4.08 | 169.11 | 0.3664 | -668.0 | -380.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.87 | 247.69 | -4.12 | 169.40 | 0.3794 | -674.0 | -581.5 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -15.13 | 247.56 | -4.25 | 169.21 | 0.3840 | -582.0 | -468.3 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -16.93 | 247.45 | -4.36 | 169.81 | 0.4127 | -734.0 | -604.8 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -15.72 | 247.39 | -4.42 | 169.09 | 0.3938 | -797.0 | -612.6 | |
| 0.71 | 3.36 | 0.38 | 1.82 | -16.96 | 247.20 | -4.61 | 169.25 | 0.4139 | -927.0 | -713.4 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -15.98 | 246.85 | -4.96 | 167.94 | 0.3997 | -825.0 | -634.9 | |
| 0.80 | 4.15 | 0.43 | 2.23 | -15.49 | 246.74 | -5.07 | 167.40 | 0.3924 | -1057.0 | -859.6 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -15.76 | 246.60 | -5.21 | 167.23 | 0.3970 | -916.0 | -735.7 | |
| 0.00 | 7.33 | 0.00 | 3.96 | -15.79 | 246.23 | -5.58 | 166.36 | 0.3989 | -792.0 | -755.7 | |
| 0.80 | 5.39 | 0.43 | 2.89 | -14.98 | 246.09 | -5.72 | 165.53 | 0.3868 | -1023.8 | -821.6 | |
| 0.00 | 3.09 | 0.00 | 1.66 | -15.21 | 245.90 | -5.91 | 165.21 | 0.3912 | -1092.0 | -916.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
