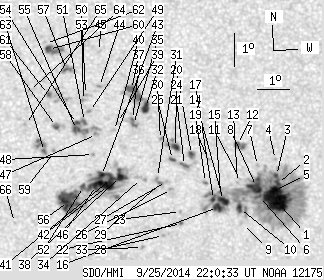

SDO HMI 2014-09-25 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.29 | 680.73 | 98.23 | 346.57 | 14.15 | 262.72 | 10.91 | 305.84 | 0.2278 | 2.4 | -24.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-25 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.31 | 338.76 | 18.62 | 173.52 | 13.24 | 265.64 | 13.83 | 295.89 | 0.2598 | -1372.2 | -393.8 | |
| 3.62 | -1.00 | 1.86 | -1.00 | 13.78 | 265.67 | 13.86 | 297.74 | 0.2641 | -1010.4 | 999999 | |
| 1.68 | -1.00 | 0.86 | -1.00 | 14.02 | 265.66 | 13.84 | 298.59 | 0.2656 | -765.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 14.51 | 265.66 | 13.84 | 300.22 | 0.2693 | -687.0 | -545.5 | |
| 9.54 | -1.00 | 4.89 | -1.00 | 13.57 | 265.56 | 13.75 | 297.18 | 0.2610 | -1280.5 | 999999 | |
| 3.18 | -1.00 | 1.63 | -1.00 | 13.40 | 265.08 | 13.27 | 297.37 | 0.2525 | -1087.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 14.34 | 265.07 | 13.26 | 300.67 | 0.2595 | -750.0 | -517.9 | |
| 12.99 | -1.00 | 6.65 | -1.00 | 13.71 | 265.00 | 13.19 | 298.59 | 0.2536 | -1011.1 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 12.60 | 264.50 | 12.68 | 295.32 | 0.2381 | -562.0 | -635.2 | |
| 3.53 | -1.00 | 1.80 | -1.00 | 13.06 | 264.42 | 12.61 | 297.19 | 0.2402 | -1091.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 13.97 | 264.47 | 12.66 | 300.43 | 0.2479 | -267.0 | -217.7 | |
| 1.86 | 7.42 | 0.95 | 3.80 | 15.00 | 264.47 | 12.66 | 304.00 | 0.2565 | -912.3 | -811.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.85 | 264.40 | 12.59 | 300.14 | 0.2459 | -751.0 | -521.0 | |
| 6.18 | -1.00 | 3.15 | -1.00 | 13.31 | 263.93 | 12.12 | 299.04 | 0.2348 | -1070.4 | 999999 | |
| 0.44 | -1.00 | 0.23 | -1.00 | 13.56 | 263.85 | 12.04 | 300.12 | 0.2355 | 497.8 | 999999 | |
| 6.01 | -1.00 | 3.06 | -1.00 | 13.11 | 263.73 | 11.92 | 298.62 | 0.2302 | -1123.4 | 999999 | |
| 1.59 | -1.00 | 0.81 | -1.00 | 13.35 | 263.62 | 11.81 | 299.79 | 0.2305 | -1193.1 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 14.57 | 263.53 | 11.71 | 304.48 | 0.2395 | 443.0 | 423.3 | |
| 0.35 | 1.77 | 0.18 | 0.90 | 13.87 | 263.39 | 11.58 | 302.24 | 0.2315 | -792.5 | -612.4 | |
| 2.12 | 17.93 | 1.08 | 9.12 | 14.73 | 263.00 | 11.18 | 306.26 | 0.2337 | 774.1 | 522.5 | |
| 1.50 | -20.00 | 0.76 | -20.00 | 14.40 | 262.76 | 10.95 | 305.64 | 0.2273 | 925.9 | 999999 | |
| 0.44 | 1.24 | 0.22 | 0.63 | 12.65 | 262.58 | 10.77 | 299.09 | 0.2096 | 692.0 | 577.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.01 | 262.56 | 10.75 | 300.65 | 0.2123 | 614.0 | 438.5 | |
| 3.53 | 9.81 | 1.80 | 4.99 | 14.96 | 262.50 | 10.69 | 308.25 | 0.2292 | 963.0 | 728.6 | |
| 1.24 | -20.00 | 0.63 | -20.00 | 14.59 | 262.39 | 10.58 | 307.24 | 0.2241 | 841.0 | 999999 | |
| 0.00 | 1.94 | 0.00 | 0.99 | 13.69 | 262.31 | 10.50 | 303.96 | 0.2145 | 808.0 | 630.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 13.93 | 262.17 | 10.35 | 305.29 | 0.2147 | 544.0 | 355.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 12.30 | 262.00 | 10.19 | 298.83 | 0.1982 | -934.0 | -806.8 | |
| 0.00 | 1.77 | 0.00 | 0.90 | 13.88 | 261.97 | 10.16 | 305.55 | 0.2115 | 736.0 | 651.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 15.21 | 262.04 | 10.23 | 310.34 | 0.2258 | 807.0 | 595.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.06 | 261.89 | 10.08 | 306.49 | 0.2121 | 792.0 | 718.7 | |
| 5.65 | 34.01 | 2.88 | 17.31 | 16.19 | 261.61 | 9.80 | 314.79 | 0.2314 | -1170.5 | -779.9 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 11.95 | 261.33 | 9.52 | 298.77 | 0.1855 | 945.0 | 706.7 | |
| 0.00 | 4.68 | 0.00 | 2.37 | 14.04 | 261.38 | 9.57 | 307.78 | 0.2051 | 579.0 | 560.4 | |
| 1.15 | 4.86 | 0.58 | 2.47 | 15.68 | 261.21 | 9.40 | 314.30 | 0.2206 | -1060.9 | -860.2 | |
| 0.71 | -35.00 | 0.36 | -35.00 | 15.83 | 261.18 | 9.37 | 314.88 | 0.2221 | -969.4 | 999999 | |
| 5.65 | -32.00 | 2.88 | -32.00 | 16.75 | 261.20 | 9.39 | 317.72 | 0.2332 | -975.2 | 999999 | |
| 8.66 | 142.48 | 4.37 | 71.78 | 14.11 | 260.73 | 8.92 | 309.99 | 0.1971 | 1084.3 | 459.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 15.75 | 260.71 | 8.89 | 316.06 | 0.2154 | -17.0 | 104.1 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 15.51 | 260.60 | 8.79 | 315.58 | 0.2113 | 419.0 | 307.2 | |
| 3.89 | -38.00 | 1.96 | -38.00 | 14.06 | 260.44 | 8.63 | 310.66 | 0.1928 | 1113.6 | 999999 | |
| 7.77 | -38.00 | 3.92 | -38.00 | 13.85 | 260.34 | 8.53 | 310.13 | 0.1892 | 1317.6 | 999999 | |
| 6.63 | -38.00 | 3.34 | -38.00 | 14.15 | 260.14 | 8.32 | 312.06 | 0.1899 | -253.1 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 16.86 | 260.19 | 8.37 | 321.19 | 0.2234 | -714.0 | -563.1 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 17.93 | 260.24 | 8.43 | 323.97 | 0.2381 | 787.0 | 605.7 | |
| 11.93 | -38.00 | 6.01 | -38.00 | 13.85 | 259.97 | 8.16 | 311.39 | 0.1844 | 1219.9 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.03 | 15.40 | 260.03 | 8.22 | 317.08 | 0.2032 | 867.0 | 829.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.80 | 259.91 | 8.10 | 315.31 | 0.1945 | 983.0 | 767.7 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 16.10 | 259.84 | 8.02 | 320.07 | 0.2099 | 754.0 | 601.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 16.62 | 259.73 | 7.92 | 322.02 | 0.2155 | 577.0 | 499.3 | |
| 1.24 | 23.59 | 0.63 | 11.93 | 15.80 | 259.67 | 7.85 | 319.69 | 0.2042 | 931.9 | 818.5 | |
| 1.94 | -38.00 | 0.98 | -38.00 | 13.83 | 259.56 | 7.75 | 312.72 | 0.1790 | 1028.6 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.90 | 16.44 | 259.66 | 7.85 | 321.72 | 0.2124 | 888.0 | 594.3 | |
| 2.30 | -51.00 | 1.16 | -51.00 | 15.75 | 259.41 | 7.60 | 320.41 | 0.2007 | 1092.5 | 999999 | |
| 3.62 | -51.00 | 1.83 | -51.00 | 15.56 | 259.40 | 7.59 | 319.83 | 0.1982 | 1233.4 | 999999 | |
| 27.91 | -38.00 | 14.03 | -38.00 | 13.39 | 259.08 | 7.27 | 312.57 | 0.1678 | 1164.0 | 999999 | |
| 1.68 | 8.30 | 0.85 | 4.22 | 17.40 | 259.16 | 7.35 | 326.18 | 0.2204 | 1055.4 | 738.4 | |
| 1.50 | 5.92 | 0.76 | 2.99 | 15.66 | 258.78 | 6.97 | 322.53 | 0.1929 | 1147.3 | 855.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.91 | 258.69 | 6.88 | 320.27 | 0.1819 | 862.0 | 646.1 | |
| 3.18 | 13.87 | 1.62 | 7.05 | 18.02 | 258.62 | 6.80 | 329.70 | 0.2243 | 1119.3 | 913.4 | |
| 0.80 | 16.78 | 0.40 | 8.49 | 16.64 | 258.56 | 6.75 | 326.34 | 0.2041 | 1114.4 | 782.4 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 18.20 | 258.53 | 6.72 | 330.44 | 0.2262 | 548.0 | 590.9 | |
| 0.97 | 10.51 | 0.49 | 5.29 | 14.91 | 258.38 | 6.57 | 321.57 | 0.1786 | 1236.6 | 907.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 16.77 | 257.97 | 6.16 | 329.06 | 0.2006 | 863.0 | 651.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 15.74 | 257.81 | 6.00 | 326.76 | 0.1843 | 802.0 | 558.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.78 | 257.38 | 5.57 | 317.14 | 0.1399 | 618.0 | 475.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
