SDO HMI 2014-09-25 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.83 | 77.75 | 87.26 | 219.82 | 12.38 | 170.14 | -81.12 | 78.60 | 0.9847 | -78.3 | 80.1 | |
|
previous
or next observation for the same group /

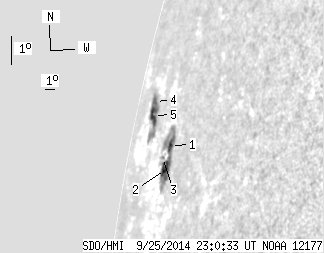

back to the solar disc SDO HMI 2014-09-25 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.68 | 47.00 | 11.07 | 112.70 | 12.42 | 172.15 | -79.10 | 78.73 | 0.9788 | -349.1 | -91.1 | |
| 14.31 | -1.00 | 33.99 | -1.00 | 11.68 | 172.16 | -79.10 | 79.49 | 0.9790 | -448.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 3.14 | 11.95 | 171.32 | -79.94 | 79.14 | 0.9817 | 311.0 | 196.9 | |
| 2.83 | 29.51 | 10.44 | 103.98 | 13.25 | 167.71 | -83.55 | 77.50 | 0.9913 | 481.6 | 261.5 | |
| 9.01 | -4.00 | 31.76 | -4.00 | 12.85 | 167.98 | -83.28 | 77.93 | 0.9908 | 215.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
