SDO HMI 2014-09-26 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.42 | 488.26 | 80.16 | 263.48 | -11.05 | 264.11 | 13.40 | 215.55 | 0.3962 | 170.7 | 77.3 | |
|
previous
or next observation for the same group /

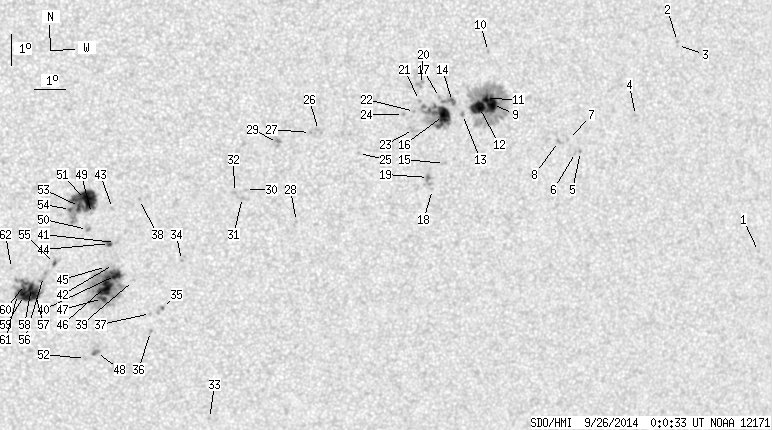

back to the solar disc SDO HMI 2014-09-26 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.49 | -13.72 | 280.29 | 29.58 | 234.85 | 0.5887 | 627.0 | 516.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -6.91 | 276.83 | 26.12 | 242.52 | 0.4946 | 746.0 | 648.9 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -7.03 | 276.83 | 26.13 | 242.31 | 0.4956 | 621.0 | 488.0 | |
| 0.00 | 1.68 | 0.00 | 0.96 | -9.14 | 275.56 | 24.85 | 237.33 | 0.4949 | 668.0 | 479.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.18 | 273.80 | 23.09 | 233.57 | 0.4818 | 705.0 | 626.1 | |
| 0.00 | 1.68 | 0.00 | 0.95 | -10.20 | 273.64 | 22.93 | 233.34 | 0.4799 | 783.0 | 629.6 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -9.78 | 273.37 | 22.67 | 233.73 | 0.4729 | 849.0 | 707.3 | |
| 0.00 | 2.21 | 0.00 | 1.24 | -9.82 | 273.05 | 22.34 | 233.25 | 0.4693 | 930.0 | 701.4 | |
| 12.99 | 131.56 | 7.12 | 72.05 | -8.56 | 270.81 | 20.10 | 232.57 | 0.4298 | 1024.2 | 315.4 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -6.91 | 270.60 | 19.89 | 235.48 | 0.4117 | -661.0 | -455.9 | |
| 5.04 | -9.00 | 2.75 | -9.00 | -8.37 | 270.57 | 19.86 | 232.60 | 0.4250 | 1283.8 | 999999 | |
| 15.73 | -9.00 | 8.60 | -9.00 | -8.64 | 270.39 | 19.69 | 231.84 | 0.4254 | 1177.0 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.16 | -8.83 | 269.86 | 19.15 | 230.69 | 0.4207 | 770.0 | 582.5 | |
| 2.03 | 7.51 | 1.10 | 4.08 | -8.41 | 269.51 | 18.80 | 230.96 | 0.4123 | 917.4 | 785.7 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -10.35 | 269.36 | 18.65 | 227.23 | 0.4304 | 818.0 | 674.0 | |
| 15.82 | 51.33 | 8.60 | 27.87 | -8.84 | 269.25 | 18.54 | 229.75 | 0.4133 | 1078.4 | 721.8 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -8.27 | 269.09 | 18.38 | 230.59 | 0.4056 | 715.0 | 523.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -11.15 | 269.03 | 18.32 | 225.34 | 0.4353 | 558.0 | 422.2 | |
| 0.71 | 5.65 | 0.39 | 3.10 | -10.77 | 268.87 | 18.16 | 225.74 | 0.4294 | 1029.5 | 711.2 | |
| 0.00 | 4.42 | 0.00 | 2.38 | -7.84 | 268.46 | 17.75 | 230.43 | 0.3935 | 872.0 | 751.0 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -8.34 | 268.45 | 17.74 | 229.45 | 0.3985 | 916.0 | 790.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -8.68 | 268.31 | 17.60 | 228.57 | 0.4004 | 930.0 | 741.8 | |
| 0.00 | 5.39 | 0.00 | 2.92 | -9.24 | 268.30 | 17.60 | 227.52 | 0.4063 | 874.0 | 702.2 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -8.76 | 267.96 | 17.25 | 227.85 | 0.3971 | 859.0 | 614.3 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -9.93 | 266.59 | 15.88 | 223.32 | 0.3945 | -647.0 | -479.6 | |
| 0.00 | 3.45 | 0.00 | 1.84 | -9.16 | 265.29 | 14.58 | 222.25 | 0.3713 | -943.0 | -690.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -9.22 | 265.04 | 14.33 | 221.65 | 0.3692 | -869.0 | -678.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -12.01 | 264.73 | 14.02 | 216.40 | 0.4010 | 728.0 | 590.8 | |
| 0.00 | 4.33 | 0.00 | 2.30 | -9.50 | 264.02 | 13.31 | 219.04 | 0.3620 | -949.0 | -669.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.95 | 263.07 | 12.36 | 214.61 | 0.3716 | -671.0 | -587.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.20 | 262.99 | 12.28 | 214.05 | 0.3742 | -683.0 | -613.3 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.03 | 262.73 | 12.02 | 213.73 | 0.3697 | -872.0 | -799.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -18.34 | 262.33 | 11.62 | 204.23 | 0.4677 | 767.0 | 537.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -13.16 | 261.16 | 10.45 | 207.32 | 0.3863 | -811.0 | -722.1 | |
| 0.53 | 3.00 | 0.29 | 1.63 | -14.65 | 260.62 | 9.92 | 204.45 | 0.4042 | 830.7 | 681.4 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -15.42 | 260.28 | 9.57 | 202.92 | 0.4133 | 845.0 | 594.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.84 | 260.25 | 9.54 | 203.45 | 0.4045 | 727.0 | 640.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.18 | 259.77 | 9.07 | 206.52 | 0.3477 | -801.0 | -631.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -13.76 | 259.68 | 8.97 | 203.26 | 0.3850 | -544.0 | -402.8 | |
| 7.51 | 104.26 | 4.02 | 55.87 | -13.59 | 259.11 | 8.40 | 202.10 | 0.3789 | -1196.9 | -514.7 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -12.53 | 259.07 | 8.36 | 203.13 | 0.3629 | -685.0 | -544.1 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.24 | 259.03 | 8.32 | 202.28 | 0.3732 | -238.0 | -313.5 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -11.45 | 258.94 | 8.24 | 204.06 | 0.3459 | 674.0 | 484.1 | |
| 1.86 | 4.68 | 0.99 | 2.49 | -12.56 | 258.88 | 8.18 | 202.64 | 0.3621 | -1086.6 | -769.7 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -13.30 | 258.81 | 8.11 | 201.70 | 0.3728 | -647.0 | -610.3 | |
| 17.14 | -40.00 | 9.18 | -40.00 | -13.94 | 258.80 | 8.10 | 201.04 | 0.3824 | -1234.9 | 999999 | |
| 3.18 | -40.00 | 1.71 | -40.00 | -14.32 | 258.72 | 8.02 | 200.49 | 0.3877 | -873.2 | 999999 | |
| 0.00 | 4.33 | 0.00 | 2.35 | -16.07 | 258.60 | 7.89 | 198.69 | 0.4135 | -1025.0 | -824.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.60 | 258.30 | 7.59 | 202.20 | 0.3439 | 166.0 | 71.8 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -12.10 | 258.19 | 7.48 | 201.36 | 0.3510 | -699.0 | -499.5 | |
| 29.86 | 54.16 | 15.70 | 28.48 | -11.15 | 258.10 | 7.39 | 202.18 | 0.3359 | 1059.8 | 541.3 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -16.26 | 258.26 | 7.55 | 197.79 | 0.4146 | -668.0 | -524.2 | |
| 4.51 | -51.00 | 2.37 | -51.00 | -11.37 | 257.92 | 7.21 | 201.45 | 0.3381 | 1009.9 | 999999 | |
| 1.06 | -51.00 | 0.56 | -51.00 | -11.46 | 257.65 | 6.94 | 200.60 | 0.3379 | 502.4 | 999999 | |
| 0.80 | 3.71 | 0.42 | 1.97 | -13.17 | 257.19 | 6.48 | 197.76 | 0.3620 | 583.1 | 369.5 | |
| 0.00 | 5.04 | 0.00 | 2.68 | -13.58 | 256.86 | 6.15 | 196.57 | 0.3668 | -657.0 | -719.0 | |
| 7.95 | 47.71 | 4.25 | 25.44 | -14.13 | 256.63 | 5.92 | 195.56 | 0.3742 | -965.3 | -715.8 | |
| 5.74 | -57.00 | 3.06 | -57.00 | -13.93 | 256.50 | 5.79 | 195.38 | 0.3706 | -1176.0 | 999999 | |
| 10.60 | -57.00 | 5.66 | -57.00 | -14.19 | 256.28 | 5.58 | 194.66 | 0.3737 | -1054.7 | 999999 | |
| 3.71 | -57.00 | 1.98 | -57.00 | -13.83 | 256.28 | 5.57 | 194.89 | 0.3681 | -1147.4 | 999999 | |
| 2.65 | -57.00 | 1.41 | -57.00 | -14.15 | 256.07 | 5.36 | 194.13 | 0.3723 | -822.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.31 | 255.86 | 5.15 | 194.18 | 0.3583 | -763.0 | -542.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
