groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12175 177.86 678.03 90.72 346.47 14.16 262.65 11.94 303.54 0.2422 65.6 -43.1


previous   or   next   observation for the same group / back to the solar disc

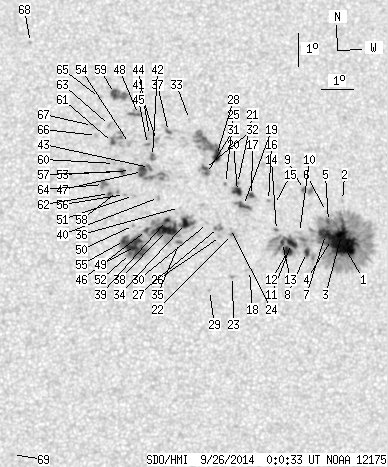

SDO HMI 2014-09-26 00:00:33 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 30.75 330.35 15.85 170.05 13.23 265.69 14.98 294.28 0.2772 -1338.0 -421.1
2 0.00 0.88 0.00 0.46 14.63 265.72 15.01 298.77 0.2871 -559.0 -395.0
3 14.84 -1.00 7.65 -1.00 13.60 265.61 14.91 295.59 0.2785 -1234.8 999999
4 6.18 -1.00 3.18 -1.00 13.46 265.29 14.58 295.57 0.2726 -1356.2 999999
5 1.77 -1.00 0.91 -1.00 14.00 265.23 14.52 297.50 0.2754 -833.3 999999
6 0.00 0.62 0.00 0.32 14.31 265.18 14.47 298.56 0.2770 -713.0 -628.0
7 10.07 -1.00 5.18 -1.00 13.61 265.10 14.40 296.37 0.2709 -1154.3 999999
8 3.09 -1.00 1.59 -1.00 13.09 264.47 13.76 295.47 0.2577 -1144.9 999999
9 0.62 6.89 0.32 3.55 15.00 264.49 13.78 301.93 0.2723 -884.3 -734.1
10 0.00 2.12 0.00 1.09 13.70 264.28 13.57 297.92 0.2592 36.0 48.5
11 5.74 -1.00 2.94 -1.00 13.37 264.01 13.30 297.21 0.2528 -1028.5 999999
12 6.45 -1.00 3.30 -1.00 13.14 263.87 13.16 296.57 0.2490 -1066.1 999999
13 1.86 -1.00 0.95 -1.00 13.41 263.72 13.01 297.82 0.2488 -1274.3 999999
14 0.44 1.86 0.23 0.95 13.78 263.55 12.85 299.45 0.2491 -819.4 -632.0
15 0.00 0.62 0.00 0.32 14.57 263.54 12.83 302.24 0.2552 553.0 404.6
16 0.00 1.06 0.00 0.54 14.70 263.35 12.64 303.02 0.2537 721.0 600.6
17 1.68 3.27 0.86 1.67 14.86 262.82 12.11 304.67 0.2477 815.1 616.3
18 0.00 3.18 0.00 1.62 12.59 262.64 11.93 296.58 0.2266 579.0 543.8
19 3.98 10.69 2.03 5.46 14.56 262.55 11.84 304.21 0.2413 912.6 426.6
20 5.21 6.98 2.66 3.56 14.99 262.38 11.68 306.07 0.2429 980.9 641.8
21 0.00 1.41 0.00 0.72 15.24 262.40 11.69 306.86 0.2454 817.0 645.4
22 0.44 2.30 0.22 1.17 13.70 262.16 11.45 301.86 0.2281 770.0 665.8
23 0.00 1.77 0.00 0.90 12.43 262.10 11.39 296.89 0.2172 -958.0 -824.2
24 0.00 1.06 0.00 0.54 13.88 262.10 11.39 302.67 0.2289 574.0 393.2
25 0.00 1.33 0.00 0.68 15.25 262.02 11.31 307.77 0.2404 716.0 594.3
26 0.00 1.68 0.00 0.85 13.64 261.78 11.07 302.49 0.2222 929.0 748.2
27 0.00 5.12 0.00 2.60 13.92 261.73 11.02 303.65 0.2239 824.0 832.4
28 6.54 36.31 3.34 18.55 16.10 261.78 11.07 311.16 0.2462 -1077.9 -807.7
29 0.00 1.06 0.00 0.54 12.02 261.36 10.65 296.59 0.2030 819.0 633.5
30 0.00 1.33 0.00 0.67 14.05 261.39 10.68 304.95 0.2203 690.0 539.3
31 0.88 8.92 0.45 4.55 15.56 261.43 10.72 310.27 0.2360 -1206.9 -851.9
32 1.59 -31.00 0.81 -31.00 15.72 261.38 10.67 310.92 0.2369 -1076.6 999999
33 0.00 0.80 0.00 0.41 17.22 260.98 10.27 316.60 0.2491 546.0 374.1
34 5.57 132.26 2.82 66.79 14.06 260.69 9.98 306.76 0.2109 1119.6 509.7
35 0.80 2.56 0.40 1.30 13.49 260.48 9.77 305.02 0.2024 755.6 581.5
36 0.00 1.06 0.00 0.54 14.55 260.53 9.82 309.07 0.2136 130.0 183.2
37 0.88 3.36 0.45 1.71 16.87 260.29 9.58 317.50 0.2369 -842.2 -450.2
38 16.35 -34.00 8.26 -34.00 13.86 260.09 9.38 307.63 0.2007 1228.5 999999
39 2.30 -34.00 1.16 -34.00 14.17 260.10 9.39 308.80 0.2039 -630.7 999999
40 0.00 1.77 0.00 0.89 14.87 259.88 9.17 312.12 0.2086 923.0 732.2
41 0.00 2.47 0.00 1.26 16.60 259.90 9.19 317.87 0.2292 795.0 551.6
42 1.41 4.42 0.72 2.24 16.12 259.75 9.04 316.81 0.2215 862.1 653.5
43 1.33 25.53 0.67 12.95 15.78 259.64 8.93 316.07 0.2162 895.1 814.4
44 0.00 4.15 0.00 2.11 16.76 259.68 8.97 318.99 0.2287 -80.0 79.7
45 0.00 2.12 0.00 1.08 16.49 259.61 8.90 318.40 0.2244 863.0 631.0
46 1.59 -34.00 0.80 -34.00 13.88 259.46 8.75 309.54 0.1925 973.4 999999
47 6.01 -43.00 3.04 -43.00 15.67 259.41 8.70 316.39 0.2122 1214.9 999999
48 0.27 6.71 0.14 3.42 17.41 259.36 8.66 321.85 0.2335 903.7 742.8
49 24.56 -34.00 12.37 -34.00 13.40 259.10 8.39 308.67 0.1826 1146.3 999999
50 0.00 1.24 0.00 0.62 14.03 259.06 8.35 311.48 0.1890 911.0 667.1
51 0.00 1.77 0.00 0.89 14.94 259.10 8.39 314.88 0.1998 740.0 591.8
52 1.59 -34.00 0.80 -34.00 13.19 258.94 8.23 308.27 0.1783 933.1 999999
53 0.00 0.62 0.00 0.31 15.70 259.03 8.32 317.75 0.2082 884.0 737.9
54 0.00 2.92 0.00 1.48 16.53 259.04 8.33 320.36 0.2187 943.0 793.2
55 4.24 -34.00 2.14 -34.00 13.59 258.76 8.05 310.60 0.1802 942.3 999999
56 0.00 1.41 0.00 0.71 14.98 258.81 8.11 315.96 0.1969 826.0 563.1
57 1.94 3.62 0.98 1.83 15.68 258.78 8.07 318.52 0.2050 1111.6 788.3
58 0.00 1.33 0.00 0.67 15.07 258.60 7.89 317.06 0.1955 903.0 737.7
59 4.59 14.49 2.34 7.38 18.06 258.63 7.92 325.94 0.2350 1119.1 875.9
60 0.00 1.06 0.00 0.54 15.93 258.54 7.83 320.18 0.2055 794.0 616.7
61 1.33 12.28 0.67 6.23 16.57 258.50 7.79 322.30 0.2135 1137.1 820.7
62 0.97 3.45 0.49 1.74 15.02 258.35 7.64 317.77 0.1918 1092.4 892.0
63 0.00 1.77 0.00 0.90 17.09 258.43 7.72 324.05 0.2197 837.0 666.3
64 0.00 5.04 0.00 2.54 15.29 258.17 7.46 319.41 0.1933 1100.0 896.3
65 0.00 2.30 0.00 1.17 17.95 258.15 7.44 327.29 0.2289 762.0 592.3
66 0.00 1.41 0.00 0.72 16.79 258.00 7.30 324.72 0.2114 907.0 758.5
67 0.00 2.47 0.00 1.25 17.10 257.89 7.18 325.99 0.2146 724.0 548.8
68 0.00 1.33 0.00 0.68 19.67 256.01 5.30 338.48 0.2383 776.0 614.8
69 0.00 1.50 0.00 0.75 7.19 255.18 4.47 273.39 0.0778 797.0 646.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
