SDO HMI 2014-09-26 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 149.16 | 504.84 | 80.20 | 273.22 | -11.02 | 264.20 | 14.04 | 216.83 | 0.4016 | 183.5 | 117.5 | |
|
previous
or next observation for the same group /

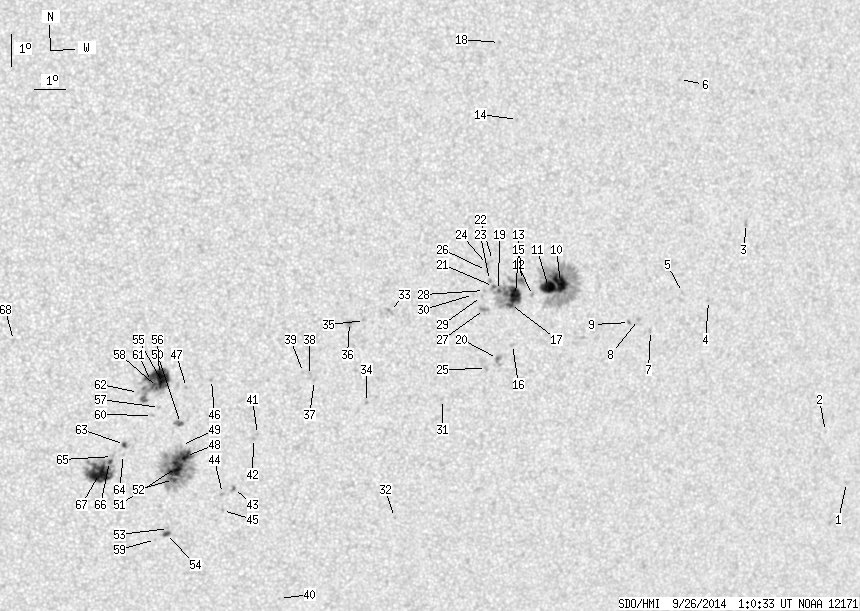

back to the solar disc SDO HMI 2014-09-26 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.45 | -15.43 | 281.26 | 31.10 | 233.84 | 0.6190 | 287.0 | 260.2 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -13.72 | 280.24 | 30.08 | 235.30 | 0.5944 | 598.0 | 477.9 | |
| 0.00 | 2.56 | 0.00 | 1.47 | -6.98 | 276.82 | 26.66 | 242.91 | 0.5023 | 671.0 | 624.0 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -9.31 | 275.70 | 25.54 | 237.77 | 0.5050 | 684.0 | 503.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -9.01 | 274.80 | 24.64 | 237.34 | 0.4911 | 748.0 | 582.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -2.43 | 274.41 | 24.25 | 249.65 | 0.4395 | 743.0 | 604.1 | |
| 0.00 | 1.86 | 0.00 | 1.05 | -10.15 | 273.81 | 23.66 | 234.29 | 0.4884 | 697.0 | 586.8 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -9.78 | 273.39 | 23.23 | 234.41 | 0.4799 | 902.0 | 687.8 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -9.86 | 273.09 | 22.94 | 233.93 | 0.4770 | 763.0 | 584.4 | |
| 15.46 | 130.25 | 8.50 | 71.60 | -8.50 | 270.74 | 20.58 | 233.36 | 0.4352 | 1120.7 | 325.5 | |
| 14.84 | -10.00 | 8.15 | -10.00 | -8.64 | 270.36 | 20.20 | 232.58 | 0.4317 | 1178.0 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -8.86 | 269.86 | 19.70 | 231.44 | 0.4277 | 620.0 | 593.4 | |
| 1.59 | 11.84 | 0.87 | 6.45 | -8.38 | 269.47 | 19.32 | 231.80 | 0.4182 | 946.9 | 728.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -3.40 | 269.17 | 19.01 | 241.98 | 0.3700 | 706.0 | 603.1 | |
| 12.90 | 54.79 | 7.04 | 29.84 | -8.84 | 269.31 | 19.15 | 230.68 | 0.4207 | 1082.7 | 681.2 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -10.37 | 269.30 | 19.14 | 227.93 | 0.4363 | 671.0 | 630.9 | |
| 2.30 | -15.00 | 1.25 | -15.00 | -9.11 | 269.16 | 19.00 | 229.96 | 0.4217 | 793.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -1.03 | 268.57 | 18.41 | 247.22 | 0.3441 | 754.0 | 594.5 | |
| 1.06 | -15.00 | 0.58 | -15.00 | -8.66 | 268.75 | 18.59 | 230.18 | 0.4121 | 1036.7 | 999999 | |
| 0.71 | 5.30 | 0.39 | 2.92 | -10.80 | 268.84 | 18.68 | 226.51 | 0.4355 | 1014.5 | 757.6 | |
| 0.62 | -15.00 | 0.34 | -15.00 | -8.53 | 268.58 | 18.42 | 230.17 | 0.4087 | 1015.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -7.72 | 268.51 | 18.35 | 231.63 | 0.3997 | 681.0 | 563.9 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -8.34 | 268.45 | 18.29 | 230.32 | 0.4051 | 997.0 | 795.3 | |
| 0.00 | 2.21 | 0.00 | 1.19 | -7.83 | 268.36 | 18.20 | 231.16 | 0.3989 | 908.0 | 745.3 | |
| 0.00 | 2.21 | 0.00 | 1.21 | -11.10 | 268.50 | 18.35 | 225.48 | 0.4350 | 781.0 | 628.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -8.02 | 268.33 | 18.18 | 230.76 | 0.4005 | 682.0 | 579.4 | |
| 0.00 | 4.24 | 0.00 | 2.31 | -9.24 | 268.33 | 18.17 | 228.46 | 0.4130 | 890.0 | 755.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.64 | 268.30 | 18.14 | 229.52 | 0.4065 | 893.0 | 668.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -8.83 | 268.21 | 18.05 | 229.03 | 0.4073 | 613.0 | 527.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.75 | 267.95 | 17.80 | 228.75 | 0.4035 | 845.0 | 606.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -12.03 | 267.15 | 16.99 | 221.77 | 0.4308 | 761.0 | 554.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -15.77 | 265.86 | 15.71 | 214.30 | 0.4642 | 682.0 | 530.5 | |
| 0.00 | 3.71 | 0.00 | 1.98 | -9.19 | 265.31 | 15.15 | 223.30 | 0.3777 | -826.0 | -673.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -12.03 | 264.72 | 14.56 | 217.41 | 0.4064 | 750.0 | 624.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -9.44 | 264.53 | 14.37 | 221.33 | 0.3724 | -718.0 | -507.9 | |
| 0.35 | 5.13 | 0.19 | 2.73 | -9.49 | 264.06 | 13.90 | 220.30 | 0.3680 | -1008.5 | -724.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -11.28 | 263.04 | 12.88 | 215.20 | 0.3808 | -695.0 | -521.1 | |
| 0.00 | 2.83 | 0.00 | 1.51 | -11.12 | 262.87 | 12.71 | 215.10 | 0.3772 | -548.0 | -675.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.02 | 262.68 | 12.52 | 214.85 | 0.3741 | -873.0 | -709.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -18.32 | 262.33 | 12.17 | 205.25 | 0.4710 | 587.0 | 442.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -12.95 | 261.32 | 11.16 | 209.15 | 0.3889 | -856.0 | -668.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -13.08 | 261.20 | 11.04 | 208.73 | 0.3897 | -869.0 | -592.4 | |
| 0.53 | 2.47 | 0.29 | 1.34 | -14.67 | 260.64 | 10.48 | 205.65 | 0.4083 | 806.8 | 672.6 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -14.83 | 260.30 | 10.14 | 204.76 | 0.4082 | 573.0 | 479.6 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.38 | 260.33 | 10.17 | 204.24 | 0.4164 | 791.0 | 551.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -11.17 | 259.81 | 9.65 | 208.01 | 0.3518 | -853.0 | -698.6 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.41 | 259.04 | 8.89 | 205.78 | 0.3496 | 662.0 | 580.4 | |
| 8.48 | 105.06 | 4.54 | 56.40 | -13.61 | 259.09 | 8.93 | 203.34 | 0.3825 | -1138.1 | -487.3 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -13.25 | 258.95 | 8.79 | 203.39 | 0.3763 | -310.0 | -349.2 | |
| 1.68 | 4.95 | 0.89 | 2.63 | -12.55 | 258.89 | 8.74 | 204.04 | 0.3655 | -1038.9 | -834.1 | |
| 19.09 | -48.00 | 10.24 | -48.00 | -13.95 | 258.82 | 8.66 | 202.35 | 0.3859 | -1224.2 | 999999 | |
| 2.65 | -48.00 | 1.43 | -48.00 | -14.34 | 258.74 | 8.58 | 201.78 | 0.3912 | -880.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -15.93 | 258.64 | 8.49 | 200.11 | 0.4144 | -806.0 | -622.1 | |
| 1.94 | 3.53 | 1.06 | 1.92 | -16.09 | 258.59 | 8.43 | 199.85 | 0.4165 | -905.9 | -725.3 | |
| 7.78 | 56.55 | 4.10 | 29.78 | -11.26 | 258.33 | 8.17 | 204.11 | 0.3426 | 907.5 | 528.7 | |
| 15.11 | -55.00 | 7.95 | -55.00 | -10.98 | 258.19 | 8.04 | 204.12 | 0.3374 | 1206.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -12.02 | 258.22 | 8.07 | 202.96 | 0.3533 | -655.0 | -517.2 | |
| 1.59 | -55.00 | 0.84 | -55.00 | -11.39 | 258.14 | 7.99 | 203.49 | 0.3432 | 922.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -16.28 | 258.25 | 8.09 | 198.96 | 0.4175 | -575.0 | -498.5 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -12.27 | 258.01 | 7.86 | 202.15 | 0.3558 | 647.0 | 429.8 | |
| 7.25 | -55.00 | 3.81 | -55.00 | -11.19 | 257.95 | 7.80 | 203.21 | 0.3391 | 1084.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.54 | 257.56 | 7.40 | 201.77 | 0.3418 | 489.0 | 398.5 | |
| 1.33 | 2.21 | 0.70 | 1.17 | -13.19 | 257.17 | 7.01 | 199.10 | 0.3649 | 777.2 | 593.4 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -13.51 | 257.15 | 6.99 | 198.75 | 0.3697 | 259.0 | 263.1 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -13.56 | 256.81 | 6.65 | 197.85 | 0.3689 | -1034.0 | -719.9 | |
| 1.24 | 54.52 | 0.66 | 29.10 | -13.72 | 256.72 | 6.56 | 197.49 | 0.3709 | -1097.9 | -649.2 | |
| 30.66 | -66.00 | 16.38 | -66.00 | -14.11 | 256.42 | 6.26 | 196.43 | 0.3754 | -1087.0 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.05 | -9.84 | 253.69 | 3.53 | 191.87 | 0.2963 | 10.0 | 35.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
