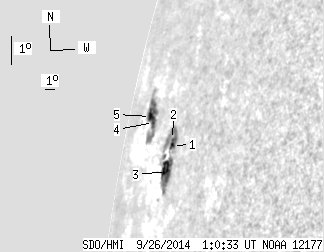

SDO HMI 2014-09-26 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.57 | 86.16 | 67.58 | 221.75 | 12.27 | 170.12 | -80.04 | 78.80 | 0.9814 | -233.2 | 126.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.77 | 52.05 | 3.83 | 114.85 | 12.46 | 172.23 | -77.93 | 78.77 | 0.9745 | -371.7 | -110.8 | |
| 1.33 | -1.00 | 2.88 | -1.00 | 12.63 | 172.05 | -78.11 | 78.59 | 0.9751 | -363.9 | 999999 | |
| 17.05 | -1.00 | 37.42 | -1.00 | 11.65 | 172.15 | -78.01 | 79.60 | 0.9751 | -457.8 | 999999 | |
| 2.65 | 34.11 | 8.13 | 106.90 | 12.73 | 168.49 | -81.67 | 78.20 | 0.9867 | 225.9 | 327.9 | |
| 4.77 | -4.00 | 15.32 | -4.00 | 12.82 | 167.65 | -82.51 | 78.04 | 0.9889 | 130.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
