SDO HMI 2014-09-26 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.53 | 30.08 | 2.25 | 19.07 | 8.40 | 288.32 | 38.71 | 274.52 | 0.6228 | -307.9 | -322.8 | |
|
previous
or next observation for the same group /

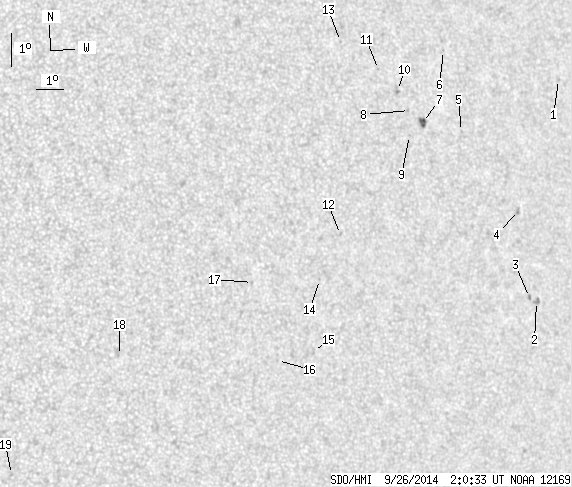

back to the solar disc SDO HMI 2014-09-26 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.86 | 11.76 | 294.76 | 45.15 | 279.71 | 0.7065 | -618.0 | -481.5 | |
| 0.00 | 3.36 | 0.00 | 2.28 | 5.20 | 292.86 | 43.25 | 270.19 | 0.6847 | -839.0 | -602.3 | |
| 0.00 | 1.86 | 0.00 | 1.25 | 5.34 | 292.58 | 42.97 | 270.37 | 0.6810 | -736.0 | -577.8 | |
| 0.00 | 2.74 | 0.00 | 1.84 | 7.98 | 292.41 | 42.81 | 274.25 | 0.6771 | -778.0 | -636.1 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 10.53 | 290.45 | 40.84 | 278.10 | 0.6518 | -569.0 | -539.2 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 13.02 | 290.17 | 40.56 | 281.95 | 0.6499 | -572.0 | -484.0 | |
| 3.53 | 5.57 | 2.25 | 3.55 | 10.92 | 288.95 | 39.34 | 278.79 | 0.6321 | -823.4 | -643.9 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 11.32 | 288.50 | 38.89 | 279.46 | 0.6264 | -530.0 | -549.6 | |
| 0.00 | 0.62 | 0.00 | 0.39 | 10.57 | 288.38 | 38.77 | 278.27 | 0.6243 | -689.0 | -612.3 | |
| 0.00 | 2.74 | 0.00 | 1.73 | 11.96 | 288.13 | 38.52 | 280.52 | 0.6220 | -790.0 | -645.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 12.64 | 287.51 | 37.90 | 281.70 | 0.6143 | -623.0 | -513.2 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 7.80 | 285.39 | 35.78 | 273.71 | 0.5827 | 573.0 | 451.5 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 13.59 | 286.20 | 36.59 | 283.48 | 0.5980 | -482.0 | -405.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 6.51 | 284.49 | 34.88 | 271.40 | 0.5705 | 583.0 | 435.6 | |
| 0.00 | 2.39 | 0.00 | 1.43 | 4.36 | 284.12 | 34.51 | 267.58 | 0.5676 | 607.0 | 532.7 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 4.18 | 282.80 | 33.19 | 267.01 | 0.5489 | 584.0 | 508.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 6.58 | 282.05 | 32.44 | 271.33 | 0.5352 | 694.0 | 498.2 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 4.67 | 277.29 | 27.68 | 266.81 | 0.4656 | 535.0 | 519.4 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 1.28 | 273.58 | 23.97 | 257.75 | 0.4174 | -732.0 | -625.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
