SDO HMI 2014-09-26 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.49 | 104.81 | 16.91 | 56.39 | -15.88 | 249.16 | -0.45 | 178.82 | 0.3911 | 19.1 | -113.6 | |
|
previous
or next observation for the same group /

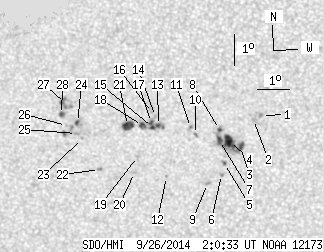

back to the solar disc SDO HMI 2014-09-26 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 0.90 | -15.30 | 252.24 | 2.63 | 186.68 | 0.3826 | 893.0 | 813.1 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -15.43 | 251.99 | 2.39 | 186.02 | 0.3842 | 897.0 | 711.2 | |
| 2.92 | 34.29 | 1.57 | 18.48 | -16.34 | 251.60 | 1.99 | 184.82 | 0.3983 | 870.1 | 734.8 | |
| 8.93 | -3.00 | 4.81 | -3.00 | -16.14 | 251.25 | 1.64 | 184.02 | 0.3947 | 1179.3 | 999999 | |
| 0.53 | 2.21 | 0.29 | 1.20 | -16.86 | 251.10 | 1.49 | 183.53 | 0.4061 | 842.0 | 692.7 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -17.22 | 251.01 | 1.40 | 183.26 | 0.4118 | 866.0 | 727.7 | |
| 2.92 | -3.00 | 1.57 | -3.00 | -16.11 | 250.94 | 1.33 | 183.26 | 0.3938 | 1004.6 | 999999 | |
| 1.06 | -3.00 | 0.57 | -3.00 | -15.75 | 250.94 | 1.33 | 183.31 | 0.3880 | 1099.9 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.15 | -17.52 | 250.57 | 0.96 | 182.21 | 0.4161 | 834.0 | 673.7 | |
| 0.00 | 1.86 | 0.00 | 1.00 | -15.91 | 250.19 | 0.58 | 181.43 | 0.3901 | 888.0 | 718.3 | |
| 0.00 | 2.12 | 0.00 | 1.14 | -15.68 | 250.03 | 0.42 | 181.05 | 0.3864 | 865.0 | 566.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -17.28 | 249.28 | -0.33 | 179.23 | 0.4121 | 763.0 | 535.6 | |
| 1.24 | 14.94 | 0.66 | 8.01 | -15.61 | 249.03 | -0.58 | 178.55 | 0.3853 | -808.1 | -756.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.32 | 248.94 | -0.67 | 178.29 | 0.3807 | -865.0 | -693.5 | |
| 1.06 | -13.00 | 0.57 | -13.00 | -15.68 | 248.84 | -0.77 | 178.08 | 0.3865 | -912.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -15.19 | 248.85 | -0.76 | 178.05 | 0.3786 | -961.0 | -806.0 | |
| 1.33 | -13.00 | 0.71 | -13.00 | -15.51 | 248.81 | -0.80 | 177.99 | 0.3839 | -1124.2 | 999999 | |
| 2.39 | -13.00 | 1.28 | -13.00 | -15.61 | 248.53 | -1.08 | 177.30 | 0.3856 | -1014.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.63 | 248.37 | -1.24 | 177.03 | 0.4021 | -900.0 | -697.7 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -17.15 | 248.27 | -1.34 | 176.87 | 0.4106 | -775.0 | -597.8 | |
| 6.72 | 9.10 | 3.60 | 4.88 | -15.61 | 248.06 | -1.55 | 176.13 | 0.3861 | -982.1 | -636.5 | |
| 0.00 | 2.03 | 0.00 | 1.10 | -17.06 | 247.17 | -2.44 | 174.28 | 0.4104 | -1003.0 | -817.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.04 | 246.65 | -2.96 | 172.76 | 0.3952 | -801.0 | -593.2 | |
| 1.15 | 10.25 | 0.62 | 5.51 | -15.52 | 246.50 | -3.11 | 172.22 | 0.3872 | -1071.6 | -808.5 | |
| 0.00 | 1.94 | 0.00 | 1.05 | -15.88 | 246.46 | -3.14 | 172.25 | 0.3930 | -956.0 | -782.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.62 | 246.16 | -3.45 | 171.40 | 0.3895 | -731.0 | -515.5 | |
| 0.00 | 8.66 | 0.00 | 4.63 | -14.91 | 246.14 | -3.47 | 171.06 | 0.3782 | -627.0 | -824.9 | |
| 1.24 | 2.65 | 0.66 | 1.42 | -15.26 | 246.01 | -3.60 | 170.89 | 0.3842 | -1090.1 | -906.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
