SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.46 | 477.06 | 63.68 | 259.94 | -11.14 | 263.87 | 15.36 | 219.12 | 0.4154 | 304.5 | 19.3 | |
|
previous
or next observation for the same group /

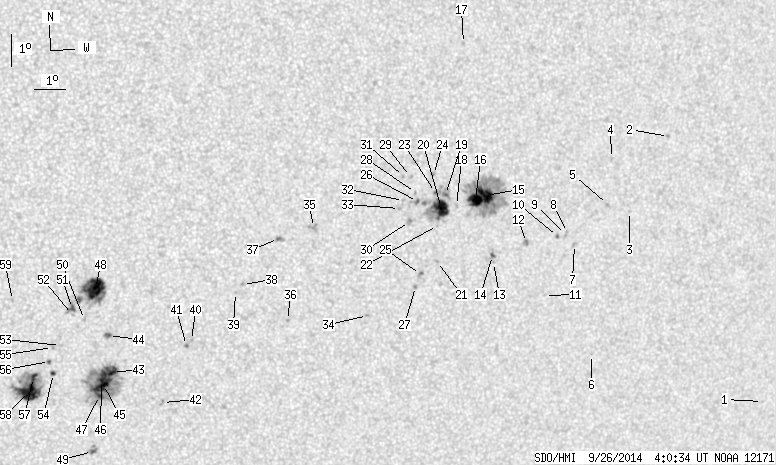

back to the solar disc SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.51 | -15.64 | 281.16 | 32.65 | 234.87 | 0.6376 | 486.0 | 412.3 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -6.99 | 276.78 | 28.27 | 244.30 | 0.5239 | 806.0 | 723.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -9.25 | 275.61 | 27.10 | 239.43 | 0.5243 | 647.0 | 480.4 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -7.56 | 274.87 | 26.36 | 241.62 | 0.5023 | 513.0 | 513.5 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -8.99 | 274.84 | 26.33 | 239.12 | 0.5125 | 769.0 | 594.4 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -13.72 | 274.76 | 26.25 | 231.59 | 0.5505 | 653.0 | 589.2 | |
| 0.00 | 2.56 | 0.00 | 1.47 | -10.18 | 273.82 | 25.31 | 236.08 | 0.5091 | 688.0 | 564.2 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -9.79 | 273.55 | 25.04 | 236.45 | 0.5025 | 807.0 | 627.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -9.85 | 273.49 | 24.98 | 236.28 | 0.5022 | 592.0 | 463.7 | |
| 0.35 | 1.77 | 0.20 | 1.01 | -9.90 | 273.22 | 24.71 | 235.91 | 0.4993 | 842.2 | 711.7 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -11.74 | 272.94 | 24.43 | 232.60 | 0.5118 | 492.0 | 380.7 | |
| 0.00 | 3.27 | 0.00 | 1.85 | -10.03 | 272.19 | 23.68 | 234.53 | 0.4876 | -578.0 | -551.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -10.61 | 271.14 | 22.63 | 232.30 | 0.4799 | 712.0 | 553.9 | |
| 0.88 | 2.92 | 0.50 | 1.64 | -10.39 | 271.09 | 22.58 | 232.61 | 0.4773 | 807.6 | 649.2 | |
| 13.52 | 117.47 | 7.52 | 65.32 | -8.49 | 270.73 | 22.22 | 235.49 | 0.4557 | 1170.4 | 342.3 | |
| 13.17 | -15.00 | 7.31 | -15.00 | -8.60 | 270.41 | 21.90 | 234.90 | 0.4526 | 1213.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -3.76 | 269.81 | 21.30 | 243.94 | 0.4053 | 782.0 | 488.2 | |
| 0.00 | 1.68 | 0.00 | 0.93 | -8.76 | 269.80 | 21.28 | 233.83 | 0.4463 | 580.0 | 519.2 | |
| 0.88 | 11.67 | 0.49 | 6.42 | -8.40 | 269.42 | 20.91 | 233.99 | 0.4382 | 1012.5 | 748.1 | |
| 16.53 | 39.78 | 9.11 | 21.91 | -8.83 | 269.31 | 20.80 | 233.05 | 0.4409 | 1123.4 | 650.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.49 | 269.29 | 20.78 | 230.09 | 0.4566 | 756.0 | 639.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -9.35 | 269.21 | 20.70 | 231.97 | 0.4447 | 555.0 | 477.0 | |
| 0.53 | -19.00 | 0.29 | -19.00 | -8.32 | 269.09 | 20.58 | 233.70 | 0.4333 | 1090.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -7.76 | 268.99 | 20.48 | 234.64 | 0.4269 | -592.0 | -364.9 | |
| 0.00 | 2.56 | 0.00 | 1.42 | -10.87 | 268.76 | 20.25 | 228.70 | 0.4542 | 938.0 | 765.1 | |
| 0.53 | 3.98 | 0.29 | 2.18 | -8.57 | 268.52 | 20.01 | 232.43 | 0.4286 | 1012.5 | 764.5 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -11.25 | 268.62 | 20.11 | 227.89 | 0.4565 | 885.0 | 792.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -8.29 | 268.44 | 19.93 | 232.86 | 0.4249 | 880.0 | 667.3 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -7.78 | 268.25 | 19.74 | 233.56 | 0.4177 | 691.0 | 761.8 | |
| 0.00 | 3.27 | 0.00 | 1.79 | -9.19 | 268.29 | 19.78 | 230.98 | 0.4318 | 903.0 | 786.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -7.77 | 268.02 | 19.51 | 233.26 | 0.4148 | 888.0 | 719.9 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -8.52 | 268.06 | 19.55 | 231.88 | 0.4224 | 592.0 | 360.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -8.77 | 267.95 | 19.43 | 231.26 | 0.4234 | 758.0 | 681.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -12.10 | 267.12 | 18.61 | 224.27 | 0.4488 | 868.0 | 739.6 | |
| 0.00 | 5.04 | 0.00 | 2.72 | -9.25 | 265.21 | 16.70 | 226.02 | 0.3959 | -813.0 | -740.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -12.16 | 264.54 | 16.03 | 219.93 | 0.4224 | 833.0 | 681.4 | |
| 0.44 | 4.24 | 0.24 | 2.28 | -9.56 | 264.12 | 15.61 | 223.51 | 0.3870 | -939.0 | -711.7 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -10.97 | 263.05 | 14.54 | 219.06 | 0.3927 | -811.0 | -650.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.21 | 262.84 | 14.33 | 218.26 | 0.3937 | -847.0 | -693.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.70 | 261.52 | 13.01 | 213.41 | 0.4006 | -831.0 | -626.4 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -12.85 | 261.37 | 12.86 | 212.88 | 0.4013 | -944.0 | -829.4 | |
| 0.00 | 2.21 | 0.00 | 1.21 | -14.67 | 260.71 | 12.19 | 209.21 | 0.4205 | 805.0 | 665.4 | |
| 3.80 | 102.53 | 2.05 | 55.31 | -13.66 | 259.07 | 10.56 | 206.99 | 0.3941 | -1154.9 | -633.9 | |
| 1.33 | 3.36 | 0.71 | 1.79 | -12.47 | 258.90 | 10.39 | 208.06 | 0.3759 | -1004.4 | -809.5 | |
| 4.33 | -43.00 | 2.34 | -43.00 | -14.03 | 258.81 | 10.30 | 205.97 | 0.3977 | -1233.7 | 999999 | |
| 0.27 | -43.00 | 0.14 | -43.00 | -13.90 | 258.74 | 10.23 | 205.97 | 0.3953 | -1471.7 | 999999 | |
| 2.56 | -43.00 | 1.39 | -43.00 | -14.39 | 258.70 | 10.19 | 205.34 | 0.4020 | -887.0 | 999999 | |
| 24.22 | 53.03 | 12.80 | 28.05 | -10.97 | 258.44 | 9.93 | 208.98 | 0.3509 | 1208.4 | 583.2 | |
| 0.88 | 6.10 | 0.48 | 3.34 | -16.20 | 258.56 | 10.05 | 203.19 | 0.4274 | -906.6 | -703.6 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -11.94 | 258.13 | 9.62 | 206.92 | 0.3626 | -734.0 | -453.6 | |
| 1.50 | 6.54 | 0.80 | 3.46 | -11.58 | 257.74 | 9.23 | 206.44 | 0.3545 | 908.0 | 733.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.77 | 257.75 | 9.24 | 206.21 | 0.3574 | 547.0 | 469.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -12.75 | 257.41 | 8.90 | 204.21 | 0.3694 | -834.0 | -606.7 | |
| 1.33 | 2.39 | 0.71 | 1.28 | -13.65 | 257.22 | 8.71 | 202.79 | 0.3815 | 607.8 | 458.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -12.81 | 257.16 | 8.65 | 203.55 | 0.3687 | -760.0 | -656.4 | |
| 0.62 | 1.33 | 0.33 | 0.71 | -13.26 | 257.08 | 8.57 | 202.87 | 0.3748 | 641.4 | 573.1 | |
| 4.07 | 63.73 | 2.18 | 34.15 | -13.76 | 256.60 | 8.09 | 201.20 | 0.3795 | -1086.5 | -556.8 | |
| 25.72 | -57.00 | 13.80 | -57.00 | -14.21 | 256.49 | 7.98 | 200.51 | 0.3856 | -1103.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -11.29 | 255.87 | 7.36 | 201.95 | 0.3377 | -824.0 | -644.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
