SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.75 | 806.55 | 95.52 | 415.78 | 14.32 | 262.66 | 14.15 | 299.95 | 0.2750 | 53.1 | -52.9 | |
|
previous
or next observation for the same group /

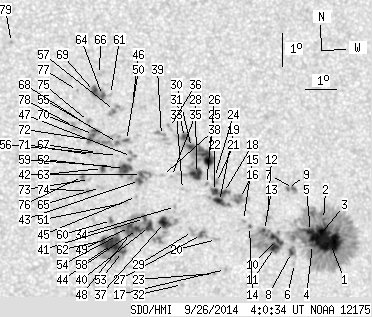

back to the solar disc SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.87 | 371.77 | 14.01 | 193.48 | 13.26 | 265.87 | 17.36 | 291.70 | 0.3139 | -1324.9 | -453.4 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 14.00 | 265.70 | 17.19 | 294.08 | 0.3155 | -728.3 | 999999 | |
| 22.63 | -1.00 | 11.78 | -1.00 | 13.52 | 265.53 | 17.02 | 292.82 | 0.3102 | -1418.3 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 13.25 | 265.29 | 16.78 | 292.27 | 0.3050 | -1211.3 | 999999 | |
| 4.60 | -1.00 | 2.39 | -1.00 | 13.65 | 265.25 | 16.74 | 293.52 | 0.3067 | -1193.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 12.70 | 264.67 | 16.16 | 291.16 | 0.2924 | -801.0 | -655.2 | |
| 0.80 | 6.19 | 0.41 | 3.22 | 14.97 | 264.80 | 16.29 | 298.05 | 0.3085 | -866.2 | -641.5 | |
| 2.30 | -1.00 | 1.19 | -1.00 | 13.03 | 264.60 | 16.09 | 292.33 | 0.2931 | -1123.5 | 999999 | |
| 0.53 | -7.00 | 0.28 | -7.00 | 14.98 | 264.61 | 16.10 | 298.33 | 0.3057 | -809.7 | 999999 | |
| 6.28 | -1.00 | 3.25 | -1.00 | 13.44 | 264.14 | 15.63 | 294.18 | 0.2886 | -1138.1 | 999999 | |
| 4.95 | -1.00 | 2.56 | -1.00 | 13.20 | 264.06 | 15.55 | 293.50 | 0.2859 | -1170.7 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.42 | 14.15 | 263.90 | 15.39 | 296.75 | 0.2895 | -211.0 | -271.7 | |
| 1.15 | -1.00 | 0.59 | -1.00 | 13.73 | 263.78 | 15.27 | 295.57 | 0.2848 | -1008.2 | 999999 | |
| 0.53 | 1.59 | 0.27 | 0.82 | 13.86 | 263.31 | 14.80 | 296.67 | 0.2787 | -820.7 | -670.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 14.05 | 263.13 | 14.62 | 297.55 | 0.2773 | -686.0 | -539.1 | |
| 0.00 | 12.20 | 0.00 | 6.29 | 14.72 | 263.04 | 14.53 | 299.84 | 0.2810 | 122.0 | 354.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 12.59 | 262.46 | 13.95 | 293.43 | 0.2576 | 831.0 | 639.7 | |
| 3.45 | 25.01 | 1.78 | 12.87 | 14.92 | 262.54 | 14.03 | 301.28 | 0.2754 | 698.0 | 594.2 | |
| 5.04 | -18.00 | 2.59 | -18.00 | 14.65 | 262.40 | 13.89 | 300.66 | 0.2711 | 949.9 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.41 | 13.50 | 262.23 | 13.72 | 297.04 | 0.2601 | 655.0 | 488.5 | |
| 0.00 | 2.83 | 0.00 | 1.46 | 15.23 | 262.34 | 13.83 | 302.62 | 0.2751 | 884.0 | 727.2 | |
| 3.36 | -18.00 | 1.73 | -18.00 | 14.96 | 262.26 | 13.75 | 301.90 | 0.2716 | 1122.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 12.48 | 262.11 | 13.60 | 293.52 | 0.2514 | -875.0 | -773.2 | |
| 0.00 | 0.62 | 0.00 | 0.32 | 15.38 | 262.29 | 13.78 | 303.20 | 0.2756 | 404.0 | 401.0 | |
| 6.36 | 68.68 | 3.28 | 35.36 | 15.87 | 262.13 | 13.62 | 305.01 | 0.2777 | -1155.5 | -662.6 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 15.18 | 262.02 | 13.51 | 303.04 | 0.2701 | 595.0 | 415.3 | |
| 1.50 | 6.89 | 0.77 | 3.53 | 13.67 | 261.76 | 13.25 | 298.38 | 0.2543 | 1002.3 | 676.9 | |
| 9.37 | -25.00 | 4.82 | -25.00 | 15.52 | 261.72 | 13.21 | 304.68 | 0.2689 | -1160.1 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.49 | 13.77 | 261.48 | 12.97 | 299.22 | 0.2509 | 894.0 | 553.4 | |
| 3.01 | -25.00 | 1.55 | -25.00 | 16.32 | 261.61 | 13.10 | 307.35 | 0.2749 | -1048.9 | 999999 | |
| 2.83 | -25.00 | 1.46 | -25.00 | 16.63 | 261.41 | 12.90 | 308.68 | 0.2752 | -968.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 12.17 | 261.08 | 12.57 | 293.87 | 0.2337 | 735.0 | 600.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 15.05 | 261.24 | 12.73 | 304.08 | 0.2581 | -632.0 | -488.0 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 14.54 | 260.99 | 12.48 | 302.86 | 0.2501 | 739.0 | 478.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 15.45 | 260.91 | 12.40 | 306.07 | 0.2573 | -333.0 | -263.5 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 16.94 | 260.95 | 12.44 | 310.59 | 0.2725 | -458.0 | -482.8 | |
| 7.87 | 30.32 | 4.01 | 15.46 | 14.06 | 260.61 | 12.10 | 301.92 | 0.2406 | 1116.1 | 637.9 | |
| 0.00 | 2.03 | 0.00 | 1.04 | 15.49 | 260.63 | 12.12 | 306.80 | 0.2538 | 479.0 | 262.9 | |
| 0.00 | 6.63 | 0.00 | 3.41 | 16.71 | 260.67 | 12.16 | 310.49 | 0.2666 | -196.0 | -366.6 | |
| 4.77 | 115.44 | 2.43 | 58.58 | 13.95 | 260.13 | 11.62 | 302.51 | 0.2328 | 1099.4 | 437.1 | |
| 1.94 | -40.00 | 0.99 | -40.00 | 14.20 | 259.98 | 11.47 | 303.73 | 0.2329 | -838.4 | 999999 | |
| 1.77 | 31.73 | 0.90 | 16.20 | 15.54 | 259.96 | 11.45 | 308.44 | 0.2453 | 955.7 | 803.8 | |
| 2.39 | -42.00 | 1.22 | -42.00 | 15.36 | 259.89 | 11.38 | 308.02 | 0.2426 | 1113.9 | 999999 | |
| 4.77 | -40.00 | 2.43 | -40.00 | 13.87 | 259.75 | 11.24 | 303.04 | 0.2267 | 1159.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 14.87 | 259.77 | 11.26 | 306.64 | 0.2362 | 823.0 | 666.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 17.71 | 259.81 | 11.30 | 315.38 | 0.2669 | -681.0 | -484.2 | |
| 0.00 | 5.66 | 0.00 | 2.89 | 16.09 | 259.68 | 11.17 | 310.92 | 0.2474 | 655.0 | 648.8 | |
| 3.80 | -40.00 | 1.93 | -40.00 | 13.76 | 259.52 | 11.01 | 303.10 | 0.2224 | 1138.0 | 999999 | |
| 3.98 | -40.00 | 2.02 | -40.00 | 13.94 | 259.50 | 10.99 | 303.85 | 0.2237 | 1083.5 | 999999 | |
| 0.88 | 38.45 | 0.45 | 19.63 | 16.58 | 259.55 | 11.03 | 312.77 | 0.2510 | 668.1 | 745.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.70 | 259.44 | 10.93 | 306.80 | 0.2301 | 934.0 | 787.0 | |
| 7.87 | -42.00 | 4.01 | -42.00 | 15.73 | 259.43 | 10.92 | 310.36 | 0.2404 | 1188.3 | 999999 | |
| 2.39 | -40.00 | 1.21 | -40.00 | 13.22 | 259.24 | 10.73 | 301.59 | 0.2138 | 922.3 | 999999 | |
| 0.80 | -40.00 | 0.40 | -40.00 | 13.71 | 259.11 | 10.60 | 303.86 | 0.2161 | 1122.0 | 999999 | |
| 0.80 | -50.00 | 0.41 | -50.00 | 16.53 | 259.25 | 10.74 | 313.34 | 0.2469 | 916.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 16.13 | 259.23 | 10.72 | 312.16 | 0.2422 | 630.0 | 480.3 | |
| 0.00 | 8.49 | 0.00 | 4.35 | 17.51 | 259.22 | 10.71 | 316.31 | 0.2576 | 945.0 | 749.8 | |
| 19.89 | -40.00 | 10.08 | -40.00 | 13.44 | 258.94 | 10.43 | 303.19 | 0.2113 | 1234.7 | 999999 | |
| 0.00 | 3.98 | 0.00 | 2.03 | 15.80 | 259.05 | 10.54 | 311.55 | 0.2364 | 906.0 | 733.7 | |
| 0.71 | -40.00 | 0.36 | -40.00 | 14.16 | 258.94 | 10.43 | 306.05 | 0.2181 | 989.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 18.00 | 259.12 | 10.61 | 317.91 | 0.2624 | 494.0 | 508.0 | |
| 2.03 | -40.00 | 1.03 | -40.00 | 13.56 | 258.66 | 10.15 | 304.39 | 0.2085 | 1050.3 | 999999 | |
| 1.94 | 3.62 | 0.99 | 1.84 | 15.75 | 258.73 | 10.22 | 312.22 | 0.2317 | 1200.0 | 932.9 | |
| 1.68 | 12.46 | 0.86 | 6.39 | 17.97 | 258.86 | 10.35 | 318.53 | 0.2592 | 1064.3 | 856.9 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 15.17 | 258.64 | 10.13 | 310.51 | 0.2243 | 689.0 | 605.8 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 18.62 | 258.80 | 10.29 | 320.35 | 0.2666 | 876.0 | 653.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 16.24 | 258.60 | 10.09 | 314.17 | 0.2356 | 928.0 | 795.4 | |
| 1.33 | -50.00 | 0.68 | -50.00 | 16.91 | 258.57 | 10.06 | 316.30 | 0.2431 | 906.7 | 999999 | |
| 4.42 | -64.00 | 2.27 | -64.00 | 18.10 | 258.61 | 10.10 | 319.54 | 0.2580 | 1103.3 | 999999 | |
| 0.88 | -50.00 | 0.45 | -50.00 | 16.79 | 258.50 | 9.99 | 316.14 | 0.2408 | 1127.3 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 16.18 | 258.38 | 9.87 | 314.62 | 0.2322 | 1017.0 | 849.7 | |
| 2.03 | -50.00 | 1.04 | -50.00 | 16.64 | 258.37 | 9.86 | 316.07 | 0.2375 | 1228.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.42 | 258.31 | 9.80 | 312.31 | 0.2228 | 905.0 | 684.4 | |
| 0.00 | 1.94 | 0.00 | 0.99 | 15.09 | 258.26 | 9.75 | 311.28 | 0.2185 | 1198.0 | 883.8 | |
| 0.00 | 2.56 | 0.00 | 1.31 | 17.19 | 258.37 | 9.86 | 317.70 | 0.2441 | 940.0 | 734.7 | |
| 0.71 | 2.65 | 0.36 | 1.35 | 15.52 | 258.09 | 9.58 | 313.25 | 0.2211 | 1026.8 | 867.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 18.14 | 258.07 | 9.56 | 321.16 | 0.2527 | 860.0 | 703.6 | |
| 0.00 | 4.24 | 0.00 | 2.16 | 17.05 | 257.88 | 9.37 | 318.69 | 0.2368 | 829.0 | 836.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 19.66 | 256.03 | 7.52 | 330.89 | 0.2543 | 885.0 | 779.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
