SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.15 | 94.85 | 45.67 | 215.02 | 12.43 | 169.88 | -78.63 | 78.75 | 0.9765 | -80.2 | 38.3 | |
|
previous
or next observation for the same group /

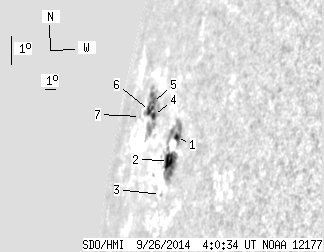

back to the solar disc SDO HMI 2014-09-26 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.65 | 22.45 | 5.13 | 44.17 | 12.50 | 172.19 | -76.32 | 78.85 | 0.9680 | -493.6 | -90.2 | |
| 9.46 | 31.82 | 18.84 | 62.74 | 11.74 | 171.80 | -76.71 | 79.60 | 0.9699 | -411.0 | -345.7 | |
| 0.00 | 0.80 | 0.00 | 1.61 | 10.67 | 171.61 | -76.90 | 80.69 | 0.9710 | -108.0 | -127.0 | |
| 2.30 | 38.98 | 5.90 | 103.96 | 12.73 | 168.38 | -80.13 | 78.32 | 0.9821 | 416.8 | 300.3 | |
| 1.94 | -4.00 | 5.32 | -4.00 | 13.06 | 167.74 | -80.77 | 77.94 | 0.9841 | 436.1 | 999999 | |
| 3.80 | -4.00 | 10.48 | -4.00 | 12.79 | 167.53 | -80.98 | 78.20 | 0.9847 | 138.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 2.54 | 12.43 | 166.10 | -82.41 | 78.43 | 0.9888 | 327.0 | 270.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
