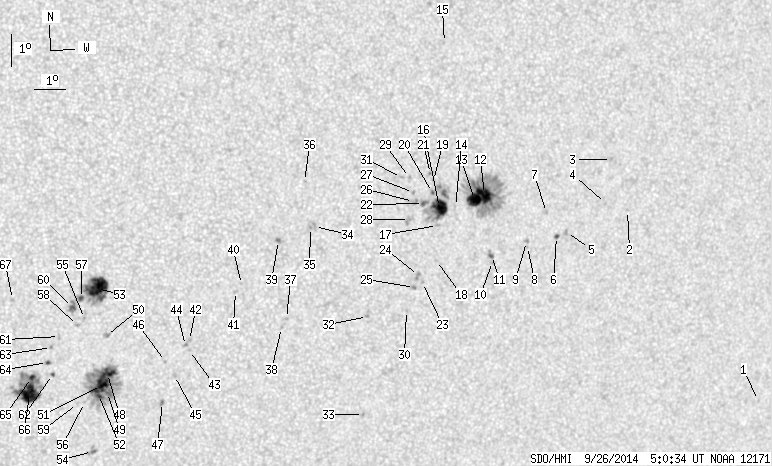

SDO HMI 2014-09-26 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.91 | 494.51 | 74.32 | 270.13 | -11.16 | 263.87 | 15.90 | 220.12 | 0.4206 | 196.9 | 55.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.40 | -15.62 | 281.13 | 33.17 | 235.32 | 0.6431 | 448.0 | 400.3 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -9.23 | 275.61 | 27.65 | 239.98 | 0.5311 | 641.0 | 494.0 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -7.60 | 274.94 | 26.98 | 242.12 | 0.5108 | 743.0 | 642.6 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -8.96 | 274.84 | 26.88 | 239.70 | 0.5193 | 670.0 | 619.7 | |
| 0.00 | 2.21 | 0.00 | 1.27 | -9.80 | 273.58 | 25.62 | 237.05 | 0.5097 | 809.0 | 646.6 | |
| 0.97 | 2.30 | 0.56 | 1.32 | -9.91 | 273.25 | 25.29 | 236.52 | 0.5065 | 757.4 | 637.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -9.13 | 272.85 | 24.89 | 237.41 | 0.4952 | -586.0 | -382.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.17 | 272.29 | 24.33 | 235.05 | 0.4968 | -553.0 | -414.9 | |
| 0.00 | 2.03 | 0.00 | 1.16 | -10.01 | 272.25 | 24.29 | 235.26 | 0.4949 | -815.0 | -706.3 | |
| 0.00 | 2.21 | 0.00 | 1.25 | -10.58 | 271.16 | 23.19 | 233.04 | 0.4865 | 627.0 | 556.9 | |
| 0.97 | 3.45 | 0.55 | 1.95 | -10.39 | 271.11 | 23.15 | 233.30 | 0.4842 | 915.9 | 702.1 | |
| 13.88 | 121.19 | 7.75 | 67.64 | -8.46 | 270.74 | 22.78 | 236.23 | 0.4626 | 1186.3 | 311.2 | |
| 13.88 | -12.00 | 7.73 | -12.00 | -8.60 | 270.42 | 22.46 | 235.59 | 0.4597 | 1233.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -8.79 | 269.81 | 21.85 | 234.49 | 0.4536 | 749.0 | 538.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -3.70 | 269.23 | 21.27 | 244.03 | 0.4044 | 692.0 | 554.1 | |
| 18.21 | 36.60 | 10.08 | 20.24 | -8.80 | 269.28 | 21.32 | 233.81 | 0.4471 | 1127.9 | 506.3 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -9.36 | 269.25 | 21.29 | 232.76 | 0.4519 | 642.0 | 449.3 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -10.46 | 269.30 | 21.33 | 230.90 | 0.4629 | 691.0 | 579.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -7.95 | 269.04 | 21.08 | 235.07 | 0.4363 | 303.0 | 257.2 | |
| 0.44 | 12.82 | 0.24 | 7.08 | -8.32 | 269.03 | 21.07 | 234.36 | 0.4395 | 1057.4 | 741.2 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -7.72 | 268.93 | 20.97 | 235.35 | 0.4329 | -565.0 | -354.6 | |
| 1.15 | 3.98 | 0.63 | 2.19 | -8.65 | 268.75 | 20.79 | 233.38 | 0.4391 | 1109.8 | 889.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.13 | 268.88 | 20.92 | 229.22 | 0.4647 | 693.0 | 555.6 | |
| 0.00 | 3.45 | 0.00 | 1.92 | -10.91 | 268.74 | 20.77 | 229.39 | 0.4607 | 925.0 | 769.4 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -11.28 | 268.63 | 20.67 | 228.63 | 0.4632 | 858.0 | 733.1 | |
| 0.00 | 4.42 | 0.00 | 2.43 | -8.57 | 268.42 | 20.46 | 233.08 | 0.4342 | 777.0 | 802.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -8.29 | 268.41 | 20.45 | 233.58 | 0.4314 | 708.0 | 626.8 | |
| 0.00 | 5.75 | 0.00 | 3.16 | -9.13 | 268.33 | 20.36 | 231.92 | 0.4383 | 934.0 | 670.5 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -7.82 | 268.26 | 20.29 | 234.27 | 0.4250 | 912.0 | 742.1 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -12.00 | 268.43 | 20.46 | 227.17 | 0.4682 | 704.0 | 551.6 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -7.81 | 268.00 | 20.03 | 233.94 | 0.4216 | 804.0 | 654.8 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -12.13 | 267.16 | 19.20 | 225.13 | 0.4555 | 877.0 | 776.1 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -15.29 | 267.30 | 19.33 | 220.68 | 0.4919 | 696.0 | 572.0 | |
| 0.00 | 2.48 | 0.00 | 1.34 | -9.22 | 265.27 | 17.31 | 227.11 | 0.4025 | -840.0 | -710.0 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -9.25 | 265.15 | 17.18 | 226.85 | 0.4014 | -864.0 | -774.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -7.80 | 264.89 | 16.93 | 229.18 | 0.3828 | 612.0 | 442.2 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -12.09 | 264.54 | 16.58 | 220.99 | 0.4271 | 751.0 | 690.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -12.37 | 264.40 | 16.43 | 220.31 | 0.4290 | 616.0 | 511.4 | |
| 0.00 | 2.56 | 0.00 | 1.38 | -9.62 | 264.15 | 16.18 | 224.45 | 0.3941 | -928.0 | -803.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.96 | 263.04 | 15.08 | 220.11 | 0.3981 | -825.0 | -663.0 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -11.18 | 262.86 | 14.90 | 219.42 | 0.3989 | -685.0 | -638.0 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -12.69 | 261.48 | 13.52 | 214.44 | 0.4049 | -873.0 | -645.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -13.01 | 261.50 | 13.53 | 214.02 | 0.4093 | -757.0 | -557.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.85 | 261.36 | 13.40 | 213.99 | 0.4059 | -862.0 | -690.8 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -13.80 | 261.06 | 13.10 | 212.10 | 0.4160 | -763.0 | -421.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -13.34 | 260.75 | 12.79 | 212.09 | 0.4072 | -565.0 | -422.3 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -14.66 | 260.73 | 12.77 | 210.36 | 0.4249 | 897.0 | 733.1 | |
| 9.37 | 105.45 | 5.05 | 57.01 | -13.67 | 258.94 | 10.97 | 207.87 | 0.3974 | -1263.3 | -448.1 | |
| 1.15 | -48.00 | 0.62 | -48.00 | -14.29 | 258.97 | 11.00 | 207.21 | 0.4062 | -656.2 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.47 | -12.46 | 258.85 | 10.89 | 209.22 | 0.3795 | -924.0 | -789.5 | |
| 14.85 | -48.00 | 8.02 | -48.00 | -14.06 | 258.77 | 10.80 | 207.05 | 0.4015 | -1196.9 | 999999 | |
| 3.36 | -48.00 | 1.82 | -48.00 | -14.34 | 258.68 | 10.72 | 206.55 | 0.4050 | -913.6 | 999999 | |
| 30.76 | 49.68 | 16.29 | 26.32 | -10.96 | 258.51 | 10.55 | 210.50 | 0.3557 | 1104.5 | 546.4 | |
| 0.00 | 5.48 | 0.00 | 3.01 | -16.19 | 258.59 | 10.63 | 204.38 | 0.4308 | -995.0 | -719.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.90 | 258.14 | 10.18 | 208.32 | 0.3661 | -698.0 | -440.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.59 | 258.25 | 10.29 | 205.35 | 0.4056 | -554.0 | -393.5 | |
| 1.41 | 3.54 | 0.75 | 1.87 | -11.26 | 258.03 | 10.06 | 208.90 | 0.3561 | 1019.8 | 735.5 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -12.12 | 257.93 | 9.97 | 207.54 | 0.3676 | 724.0 | 457.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.62 | 258.03 | 10.07 | 204.84 | 0.4045 | -599.0 | -380.6 | |
| 1.59 | 7.69 | 0.84 | 4.08 | -11.54 | 257.76 | 9.79 | 207.87 | 0.3580 | 876.3 | 701.8 | |
| 0.00 | 2.30 | 0.00 | 1.22 | -12.45 | 257.38 | 9.42 | 205.82 | 0.3685 | -835.0 | -588.8 | |
| 0.62 | 1.77 | 0.33 | 0.95 | -13.67 | 257.21 | 9.25 | 204.02 | 0.3851 | 663.0 | 544.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -12.80 | 257.14 | 9.18 | 204.84 | 0.3720 | -904.0 | -718.3 | |
| 0.88 | 1.94 | 0.47 | 1.04 | -13.28 | 257.04 | 9.07 | 204.05 | 0.3783 | 565.2 | 491.8 | |
| 1.94 | 61.26 | 1.04 | 32.88 | -13.75 | 256.55 | 8.59 | 202.41 | 0.3822 | -1108.2 | -637.6 | |
| 21.48 | -65.00 | 11.55 | -65.00 | -14.26 | 256.51 | 8.55 | 201.79 | 0.3896 | -1123.4 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -11.25 | 255.88 | 7.92 | 203.50 | 0.3405 | -705.0 | -499.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
