SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.65 | 15.12 | 1.78 | 10.22 | 8.93 | 289.95 | 43.08 | 275.74 | 0.6811 | -337.0 | -443.1 | |
|
previous
or next observation for the same group /

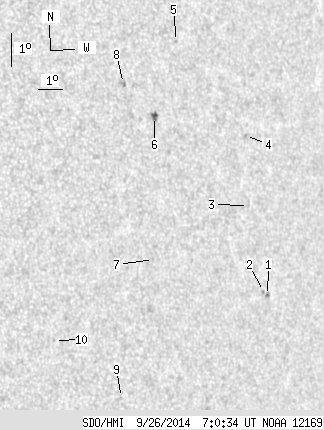

back to the solar disc SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 2.03 | 0.31 | 1.45 | 5.15 | 292.97 | 46.10 | 270.47 | 0.7200 | -660.2 | -507.6 | |
| 0.00 | 1.24 | 0.00 | 0.88 | 5.28 | 292.81 | 45.94 | 270.64 | 0.7179 | -732.0 | -597.1 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 7.91 | 292.47 | 45.61 | 274.30 | 0.7121 | -665.0 | -583.2 | |
| 0.00 | 1.33 | 0.00 | 0.94 | 10.02 | 292.69 | 45.82 | 277.26 | 0.7142 | -675.0 | -599.3 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 13.07 | 290.32 | 43.45 | 281.75 | 0.6866 | -574.0 | -470.1 | |
| 2.21 | 4.07 | 1.47 | 2.70 | 10.90 | 288.96 | 42.10 | 278.63 | 0.6681 | -815.7 | -635.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 6.63 | 288.33 | 41.46 | 272.17 | 0.6604 | 674.0 | 578.0 | |
| 0.00 | 2.74 | 0.00 | 1.79 | 11.99 | 287.89 | 41.02 | 280.35 | 0.6549 | -836.0 | -696.5 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 2.59 | 286.76 | 39.89 | 265.75 | 0.6448 | 616.0 | 521.0 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 4.50 | 284.27 | 37.40 | 268.33 | 0.6080 | 623.0 | 501.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
