SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.17 | 454.19 | 70.08 | 249.62 | -11.07 | 264.03 | 17.16 | 222.43 | 0.4320 | 158.3 | 94.8 | |
|
previous
or next observation for the same group /

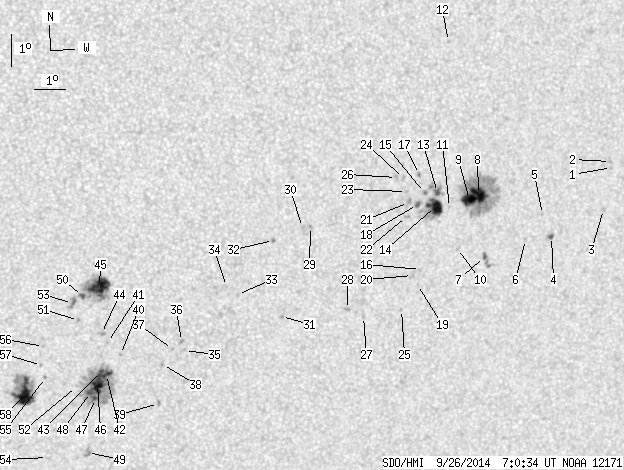

back to the solar disc SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.77 | -7.87 | 275.20 | 28.34 | 242.86 | 0.5304 | 678.0 | 512.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -7.68 | 275.16 | 28.29 | 243.14 | 0.5285 | 758.0 | 585.8 | |
| 0.00 | 1.77 | 0.00 | 1.04 | -9.17 | 275.03 | 28.16 | 240.55 | 0.5372 | 757.0 | 599.6 | |
| 1.15 | 2.48 | 0.67 | 1.43 | -9.91 | 273.31 | 26.44 | 237.71 | 0.5209 | 919.6 | 754.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.21 | 272.94 | 26.08 | 238.52 | 0.5108 | -688.0 | -555.5 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -9.96 | 272.43 | 25.56 | 236.74 | 0.5103 | -737.0 | -502.5 | |
| 1.24 | 7.07 | 0.71 | 4.04 | -10.42 | 271.08 | 24.22 | 234.51 | 0.4975 | 820.5 | 597.6 | |
| 13.44 | 121.72 | 7.56 | 68.52 | -8.46 | 270.74 | 23.87 | 237.49 | 0.4766 | 1184.8 | 315.0 | |
| 12.91 | -8.00 | 7.25 | -8.00 | -8.60 | 270.45 | 23.58 | 236.92 | 0.4740 | 1238.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -10.12 | 270.16 | 23.29 | 233.94 | 0.4835 | 481.0 | 560.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -8.82 | 269.80 | 22.93 | 235.78 | 0.4676 | 623.0 | 420.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -3.68 | 269.54 | 22.67 | 245.56 | 0.4242 | 724.0 | 617.7 | |
| 2.56 | 10.70 | 1.43 | 5.95 | -8.33 | 269.37 | 22.51 | 236.15 | 0.4579 | 995.4 | 630.9 | |
| 16.44 | 30.76 | 9.17 | 17.15 | -8.77 | 269.33 | 22.47 | 235.32 | 0.4612 | 1111.0 | 563.3 | |
| 0.00 | 1.77 | 0.00 | 0.98 | -8.31 | 268.95 | 22.08 | 235.67 | 0.4522 | 1110.0 | 954.3 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -10.72 | 268.98 | 22.11 | 231.47 | 0.4746 | 734.0 | 624.3 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -7.74 | 268.75 | 21.88 | 236.49 | 0.4448 | -634.0 | -385.3 | |
| 1.50 | 3.36 | 0.83 | 1.86 | -8.67 | 268.74 | 21.87 | 234.75 | 0.4528 | 1025.0 | 811.0 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -11.19 | 268.91 | 22.05 | 230.62 | 0.4783 | 612.0 | 513.7 | |
| 0.00 | 3.01 | 0.00 | 1.69 | -10.90 | 268.73 | 21.86 | 230.86 | 0.4733 | 949.0 | 619.6 | |
| 0.00 | 3.80 | 0.00 | 2.10 | -8.60 | 268.44 | 21.57 | 234.51 | 0.4483 | 936.0 | 752.4 | |
| 0.00 | 2.21 | 0.00 | 1.23 | -9.03 | 268.40 | 21.53 | 233.67 | 0.4518 | 794.0 | 730.8 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -8.25 | 268.35 | 21.49 | 235.04 | 0.4441 | 840.0 | 629.5 | |
| 0.00 | 2.03 | 0.00 | 1.12 | -7.84 | 268.23 | 21.36 | 235.65 | 0.4389 | 877.0 | 687.0 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -11.96 | 268.45 | 21.58 | 228.76 | 0.4804 | 665.0 | 545.7 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -7.80 | 268.00 | 21.13 | 235.44 | 0.4356 | 829.0 | 690.4 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -12.13 | 267.21 | 20.34 | 226.81 | 0.4680 | 817.0 | 625.7 | |
| 0.00 | 2.30 | 0.00 | 1.28 | -11.88 | 266.67 | 19.80 | 226.43 | 0.4594 | 806.0 | 669.6 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.21 | 265.30 | 18.43 | 228.95 | 0.4155 | -931.0 | -751.2 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -9.23 | 265.04 | 18.17 | 228.51 | 0.4127 | -798.0 | -654.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -12.02 | 264.53 | 17.66 | 222.94 | 0.4375 | 767.0 | 721.5 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -9.60 | 264.13 | 17.26 | 226.36 | 0.4061 | -967.0 | -856.4 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -11.26 | 263.07 | 16.20 | 221.68 | 0.4133 | -800.0 | -638.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -11.00 | 262.71 | 15.84 | 221.47 | 0.4063 | -722.0 | -548.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -12.99 | 261.48 | 14.61 | 216.13 | 0.4187 | -622.0 | -428.0 | |
| 0.00 | 2.12 | 0.00 | 1.15 | -12.70 | 261.37 | 14.50 | 216.34 | 0.4139 | -823.0 | -663.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.94 | 261.10 | 14.23 | 215.47 | 0.4146 | 735.0 | 491.6 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -13.41 | 260.81 | 13.94 | 214.25 | 0.4180 | -842.0 | -657.8 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -14.67 | 260.75 | 13.89 | 212.49 | 0.4340 | 886.0 | 711.5 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -13.05 | 259.45 | 12.58 | 212.07 | 0.4015 | -746.0 | -579.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.66 | 259.02 | 12.15 | 211.71 | 0.3925 | -604.0 | -495.0 | |
| 5.57 | 97.41 | 3.02 | 52.86 | -13.68 | 259.04 | 12.17 | 210.40 | 0.4067 | -1089.0 | -472.2 | |
| 1.94 | -42.00 | 1.05 | -42.00 | -13.58 | 258.88 | 12.01 | 210.19 | 0.4040 | -1222.6 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.42 | -12.36 | 258.82 | 11.95 | 211.68 | 0.3868 | -843.0 | -632.4 | |
| 23.07 | 55.33 | 12.27 | 29.43 | -10.87 | 258.69 | 11.83 | 213.59 | 0.3654 | 1150.5 | 582.8 | |
| 17.06 | -42.00 | 9.25 | -42.00 | -14.00 | 258.77 | 11.91 | 209.45 | 0.4088 | -1224.9 | 999999 | |
| 1.77 | -42.00 | 0.96 | -42.00 | -14.45 | 258.73 | 11.87 | 208.82 | 0.4148 | -905.0 | 999999 | |
| 3.36 | -42.00 | 1.82 | -42.00 | -14.25 | 258.56 | 11.70 | 208.71 | 0.4107 | -997.4 | 999999 | |
| 0.00 | 4.33 | 0.00 | 2.38 | -16.20 | 258.58 | 11.71 | 206.54 | 0.4380 | -901.0 | -773.5 | |
| 1.50 | -45.00 | 0.80 | -45.00 | -11.17 | 258.17 | 11.31 | 211.96 | 0.3649 | 965.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -11.93 | 258.08 | 11.21 | 210.66 | 0.3746 | -795.0 | -553.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.04 | 258.11 | 11.24 | 208.01 | 0.4044 | -227.0 | -182.8 | |
| 0.00 | 5.75 | 0.00 | 3.06 | -11.39 | 257.87 | 11.00 | 210.95 | 0.3653 | 901.0 | 781.0 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.33 | 257.31 | 10.44 | 203.88 | 0.4314 | -101.0 | -127.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -13.73 | 257.12 | 10.25 | 206.24 | 0.3928 | 642.0 | 537.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -12.73 | 257.02 | 10.15 | 207.19 | 0.3777 | -928.0 | -610.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -13.34 | 256.98 | 10.11 | 206.37 | 0.3862 | 661.0 | 381.9 | |
| 24.66 | 54.10 | 13.29 | 29.14 | -14.26 | 256.48 | 9.61 | 204.23 | 0.3961 | -1118.6 | -603.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
