SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 9.46 | 1.45 | 10.70 | -14.11 | 185.87 | -61.00 | 109.39 | 0.9009 | 49.6 | -3.4 | |
|
previous
or next observation for the same group /

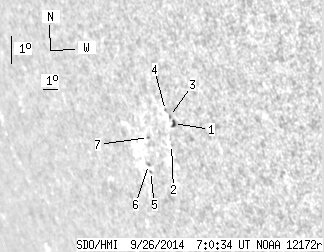

back to the solar disc SDO HMI 2014-09-26 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 3.01 | 1.45 | 3.28 | -13.60 | 186.82 | -60.04 | 109.12 | 0.8932 | 516.3 | 423.6 | |
| 0.00 | 0.53 | 0.00 | 0.59 | -14.32 | 186.38 | -60.49 | 109.76 | 0.8978 | 331.0 | 299.5 | |
| 0.00 | 1.33 | 0.00 | 1.45 | -13.40 | 186.66 | -60.21 | 108.85 | 0.8939 | 470.0 | 365.9 | |
| 0.00 | 1.15 | 0.00 | 1.26 | -13.23 | 186.48 | -60.39 | 108.62 | 0.8949 | 418.0 | 350.5 | |
| 0.00 | 0.97 | 0.00 | 1.17 | -15.39 | 184.47 | -62.40 | 110.37 | 0.9131 | -461.0 | -422.6 | |
| 0.00 | 1.59 | 0.00 | 1.91 | -15.16 | 184.45 | -62.41 | 110.13 | 0.9128 | -608.0 | -493.1 | |
| 0.00 | 0.88 | 0.00 | 1.04 | -14.25 | 184.92 | -61.95 | 109.29 | 0.9080 | -529.0 | -504.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
