SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 11.49 | 1.46 | 13.07 | -14.38 | 185.31 | -61.01 | 109.68 | 0.9014 | -4.8 | -113.7 | |
|
previous
or next observation for the same group /

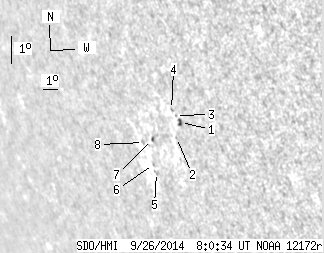

back to the solar disc SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 2.47 | 0.95 | 2.65 | -13.60 | 186.89 | -59.43 | 109.30 | 0.8885 | 508.1 | 467.7 | |
| 0.00 | 0.80 | 0.00 | 0.87 | -14.13 | 186.42 | -59.90 | 109.73 | 0.8932 | 244.0 | 310.0 | |
| 0.00 | 0.62 | 0.00 | 0.67 | -13.40 | 186.67 | -59.65 | 109.02 | 0.8898 | 489.0 | 413.3 | |
| 0.00 | 0.88 | 0.00 | 0.96 | -13.23 | 186.49 | -59.83 | 108.78 | 0.8908 | 469.0 | 394.4 | |
| 0.00 | 2.30 | 0.00 | 2.71 | -15.45 | 184.49 | -61.83 | 110.60 | 0.9094 | -440.0 | -388.2 | |
| 0.00 | 0.71 | 0.00 | 0.84 | -15.21 | 184.42 | -61.90 | 110.31 | 0.9094 | -542.0 | -546.8 | |
| 0.44 | 1.41 | 0.51 | 1.64 | -14.37 | 184.77 | -61.55 | 109.52 | 0.9054 | -540.0 | -470.1 | |
| 0.00 | 2.30 | 0.00 | 2.73 | -14.54 | 184.09 | -62.23 | 109.51 | 0.9104 | -463.0 | -367.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
