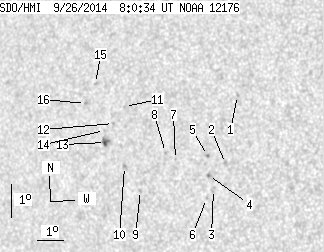

SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.77 | 25.21 | 1.15 | 15.96 | 6.98 | 207.55 | -38.78 | 87.50 | 0.6242 | 17.9 | 5.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.81 | 8.82 | 210.46 | -35.86 | 84.50 | 0.5837 | -681.0 | -493.9 | |
| 0.00 | 2.56 | 0.00 | 1.57 | 6.75 | 210.21 | -36.11 | 88.04 | 0.5877 | -662.0 | -583.9 | |
| 0.00 | 2.65 | 0.00 | 1.63 | 5.94 | 209.83 | -36.49 | 89.38 | 0.5938 | -571.0 | -507.4 | |
| 0.00 | 1.50 | 0.00 | 0.93 | 6.35 | 209.61 | -36.71 | 88.67 | 0.5965 | -797.0 | -667.4 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 6.94 | 209.52 | -36.80 | 87.66 | 0.5974 | -706.0 | -566.6 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 5.65 | 209.59 | -36.74 | 89.84 | 0.5974 | -604.0 | -482.7 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 6.74 | 208.31 | -38.01 | 87.92 | 0.6142 | -588.0 | -505.4 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 6.92 | 207.91 | -38.41 | 87.60 | 0.6196 | -666.0 | -511.1 | |
| 0.00 | 1.24 | 0.00 | 0.79 | 5.71 | 207.04 | -39.28 | 89.46 | 0.6322 | 574.0 | 557.0 | |
| 0.00 | 1.86 | 0.00 | 1.19 | 6.38 | 206.36 | -39.97 | 88.33 | 0.6409 | 686.0 | 497.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 8.18 | 206.17 | -40.16 | 85.52 | 0.6426 | 744.0 | 652.6 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 7.63 | 205.79 | -40.53 | 86.34 | 0.6477 | 739.0 | 585.9 | |
| 1.77 | 4.86 | 1.15 | 3.17 | 7.04 | 205.53 | -40.79 | 87.25 | 0.6514 | 785.7 | 616.6 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 7.40 | 205.45 | -40.87 | 86.69 | 0.6522 | 534.0 | 457.6 | |
| 0.00 | 1.33 | 0.00 | 0.87 | 8.78 | 204.92 | -41.40 | 84.57 | 0.6588 | 743.0 | 576.8 | |
| 0.00 | 1.33 | 0.00 | 0.88 | 8.14 | 204.60 | -41.72 | 85.52 | 0.6632 | 641.0 | 578.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
