SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.59 | 97.50 | 46.08 | 187.97 | 12.29 | 170.09 | -76.23 | 79.06 | 0.9671 | -67.5 | -7.1 | |
|
previous
or next observation for the same group /

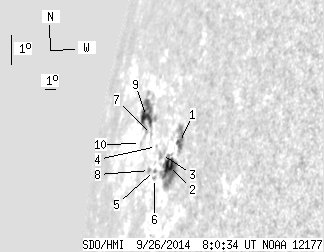

back to the solar disc SDO HMI 2014-09-26 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.33 | 15.47 | 7.26 | 26.05 | 12.55 | 172.40 | -73.92 | 78.95 | 0.9569 | -544.0 | -299.8 | |
| 9.10 | 37.21 | 15.90 | 64.76 | 11.78 | 171.84 | -74.48 | 79.72 | 0.9599 | -436.7 | -264.5 | |
| 0.00 | 4.77 | 0.00 | 8.88 | 11.98 | 170.70 | -75.62 | 79.43 | 0.9651 | 59.0 | 92.0 | |
| 0.00 | 0.27 | 0.00 | 0.52 | 12.14 | 169.92 | -76.40 | 79.21 | 0.9685 | -116.0 | -122.3 | |
| 0.35 | 1.33 | 0.68 | 2.53 | 11.44 | 170.26 | -76.06 | 79.96 | 0.9672 | 130.8 | 102.3 | |
| 0.00 | 1.41 | 0.00 | 2.69 | 11.21 | 170.44 | -75.88 | 80.20 | 0.9665 | -183.0 | -98.8 | |
| 0.00 | 1.15 | 0.00 | 2.40 | 12.40 | 168.98 | -77.34 | 78.87 | 0.9722 | 186.0 | 215.5 | |
| 0.00 | 2.21 | 0.00 | 4.42 | 11.37 | 169.65 | -76.67 | 79.98 | 0.9698 | 352.0 | 328.7 | |
| 9.81 | 32.88 | 22.24 | 73.90 | 12.82 | 167.78 | -78.54 | 78.36 | 0.9767 | 299.7 | 277.4 | |
| 0.00 | 0.80 | 0.00 | 1.82 | 11.98 | 167.75 | -78.57 | 79.21 | 0.9770 | 322.0 | 316.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
