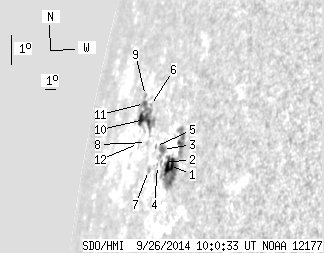

SDO HMI 2014-09-26 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.21 | 101.46 | 45.54 | 182.07 | 12.23 | 170.01 | -75.22 | 79.20 | 0.9627 | 62.5 | -58.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 53.38 | 15.83 | 86.54 | 11.80 | 171.77 | -73.45 | 79.77 | 0.9548 | -465.8 | -315.7 | |
| 0.00 | 0.97 | 0.00 | 1.66 | 11.81 | 171.09 | -74.14 | 79.71 | 0.9582 | -20.0 | -33.0 | |
| 2.21 | 7.51 | 3.85 | 13.10 | 12.17 | 170.70 | -74.52 | 79.31 | 0.9600 | 149.7 | 127.1 | |
| 0.00 | 0.88 | 0.00 | 1.56 | 11.65 | 170.51 | -74.72 | 79.83 | 0.9611 | 126.0 | 139.1 | |
| 0.00 | 1.15 | 0.00 | 2.10 | 12.16 | 169.86 | -75.37 | 79.26 | 0.9639 | -149.0 | -71.4 | |
| 0.00 | 0.80 | 0.00 | 1.61 | 13.24 | 168.20 | -77.02 | 78.03 | 0.9707 | 481.0 | 361.0 | |
| 0.00 | 2.21 | 0.00 | 4.11 | 11.39 | 169.61 | -75.62 | 80.04 | 0.9653 | 469.0 | 404.1 | |
| 0.00 | 0.80 | 0.00 | 1.56 | 12.15 | 168.71 | -76.52 | 79.19 | 0.9690 | 172.0 | 173.3 | |
| 0.00 | 1.77 | 0.00 | 3.82 | 13.44 | 167.26 | -77.97 | 77.76 | 0.9744 | 411.0 | 363.2 | |
| 10.96 | 31.02 | 22.84 | 63.96 | 12.76 | 167.84 | -77.39 | 78.50 | 0.9723 | 309.1 | 227.8 | |
| 1.41 | -10.00 | 3.02 | -10.00 | 13.20 | 167.37 | -77.86 | 78.01 | 0.9740 | 413.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 2.05 | 12.01 | 167.72 | -77.50 | 79.26 | 0.9730 | 343.0 | 314.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
