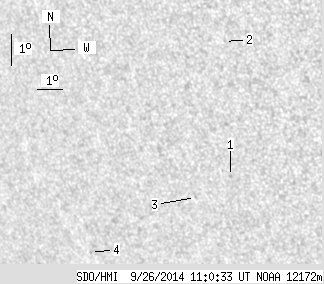

SDO HMI 2014-09-26 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.83 | 0.00 | 1.94 | -14.24 | 206.31 | -38.37 | 119.14 | 0.6899 | -79.5 | -104.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.76 | -13.70 | 208.73 | -35.95 | 120.03 | 0.6611 | 190.0 | 143.1 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -9.40 | 209.14 | -35.53 | 114.29 | 0.6313 | -546.0 | -493.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -14.48 | 207.22 | -37.45 | 120.05 | 0.6826 | 520.0 | 404.7 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -16.64 | 202.43 | -42.25 | 119.85 | 0.7450 | -482.0 | -340.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
