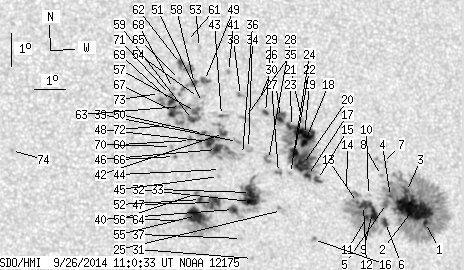

SDO HMI 2014-09-26 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 252.98 | 955.62 | 132.54 | 501.73 | 14.62 | 262.44 | 17.76 | 295.93 | 0.3299 | -4.7 | -46.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-26 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.12 | 399.90 | 1.13 | 212.90 | 13.06 | 266.15 | 21.47 | 287.93 | 0.3764 | -1108.6 | -448.0 | |
| 51.69 | -1.00 | 27.58 | -1.00 | 13.50 | 265.79 | 21.11 | 289.31 | 0.3727 | -1261.5 | 999999 | |
| 2.47 | -1.00 | 1.32 | -1.00 | 14.03 | 265.61 | 20.93 | 290.80 | 0.3724 | -757.8 | 999999 | |
| 1.41 | -1.00 | 0.75 | -1.00 | 13.90 | 265.07 | 20.39 | 290.88 | 0.3636 | -814.5 | 999999 | |
| 2.65 | -1.00 | 1.41 | -1.00 | 13.69 | 264.92 | 20.24 | 290.46 | 0.3603 | -876.0 | 999999 | |
| 3.09 | -1.00 | 1.64 | -1.00 | 13.12 | 264.83 | 20.15 | 288.98 | 0.3564 | -1015.6 | 999999 | |
| 0.00 | 6.10 | 0.00 | 3.24 | 14.94 | 264.90 | 20.23 | 293.74 | 0.3665 | -648.0 | -567.4 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 14.55 | 264.83 | 20.15 | 292.78 | 0.3633 | -958.0 | -744.0 | |
| 10.07 | -1.00 | 5.33 | -1.00 | 13.44 | 264.43 | 19.75 | 290.15 | 0.3517 | -1119.8 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.22 | 13.96 | 264.35 | 19.67 | 291.64 | 0.3529 | -557.0 | -540.7 | |
| 2.39 | -1.00 | 1.26 | -1.00 | 13.30 | 264.22 | 19.55 | 289.93 | 0.3478 | -1223.4 | 999999 | |
| 5.39 | -1.00 | 2.85 | -1.00 | 13.66 | 264.16 | 19.48 | 290.99 | 0.3486 | -1260.0 | 999999 | |
| 0.71 | -1.00 | 0.37 | -1.00 | 13.76 | 263.97 | 19.29 | 291.42 | 0.3462 | -1099.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 14.11 | 263.64 | 18.96 | 292.68 | 0.3430 | -753.0 | -607.4 | |
| 2.74 | 146.23 | 1.44 | 76.72 | 14.51 | 262.72 | 18.05 | 294.71 | 0.3316 | 775.3 | -306.5 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 12.70 | 262.45 | 17.77 | 289.68 | 0.3176 | 922.0 | 803.6 | |
| 2.83 | -15.00 | 1.48 | -15.00 | 14.64 | 262.41 | 17.73 | 295.43 | 0.3277 | 924.7 | 999999 | |
| 6.10 | -15.00 | 3.20 | -15.00 | 15.64 | 262.40 | 17.72 | 298.24 | 0.3342 | -1314.8 | 999999 | |
| 21.12 | -15.00 | 11.10 | -15.00 | 15.89 | 262.42 | 17.74 | 298.87 | 0.3362 | -1098.2 | 999999 | |
| 16.17 | -15.00 | 8.47 | -15.00 | 14.98 | 262.27 | 17.60 | 296.54 | 0.3279 | 794.8 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.07 | 16.29 | 262.39 | 17.71 | 299.97 | 0.3386 | -1.0 | -26.5 | |
| 5.57 | -15.00 | 2.92 | -15.00 | 15.35 | 262.05 | 17.37 | 297.86 | 0.3270 | -1262.0 | 999999 | |
| 4.33 | -15.00 | 2.27 | -15.00 | 16.15 | 262.02 | 17.34 | 300.08 | 0.3323 | -918.7 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 14.72 | 261.86 | 17.18 | 296.29 | 0.3201 | 481.0 | 349.9 | |
| 0.00 | 3.89 | 0.00 | 2.02 | 13.61 | 261.48 | 16.80 | 293.43 | 0.3076 | 303.0 | 600.0 | |
| 7.07 | -15.00 | 3.71 | -15.00 | 16.43 | 261.68 | 17.01 | 301.30 | 0.3297 | -895.6 | 999999 | |
| 0.00 | 3.98 | 0.00 | 2.07 | 14.77 | 261.47 | 16.80 | 296.89 | 0.3147 | -1217.0 | -875.1 | |
| 0.00 | 7.07 | 0.00 | 3.69 | 15.17 | 261.18 | 16.51 | 298.44 | 0.3132 | -700.0 | -669.3 | |
| 1.77 | 3.00 | 0.92 | 1.57 | 16.60 | 261.21 | 16.53 | 302.42 | 0.3244 | -897.2 | -617.6 | |
| 0.00 | 3.00 | 0.00 | 1.57 | 16.94 | 261.01 | 16.33 | 303.63 | 0.3245 | -593.0 | -437.6 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 12.19 | 260.45 | 15.78 | 289.98 | 0.2840 | 729.0 | 579.4 | |
| 10.87 | 62.29 | 5.63 | 32.27 | 13.92 | 260.50 | 15.83 | 295.54 | 0.2947 | 1122.6 | 499.1 | |
| 11.75 | -32.00 | 6.09 | -32.00 | 14.19 | 260.52 | 15.85 | 296.37 | 0.2968 | 1022.1 | 999999 | |
| 0.00 | 6.45 | 0.00 | 3.36 | 15.53 | 260.56 | 15.88 | 300.33 | 0.3069 | -434.0 | -302.6 | |
| 0.00 | 4.42 | 0.00 | 2.30 | 16.44 | 260.51 | 15.83 | 303.02 | 0.3134 | 806.0 | 461.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 15.35 | 260.35 | 15.68 | 300.12 | 0.3026 | -18.0 | -22.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.81 | 260.14 | 15.46 | 292.39 | 0.2824 | 754.0 | 542.7 | |
| 0.00 | 3.45 | 0.00 | 1.80 | 17.15 | 260.44 | 15.76 | 305.05 | 0.3185 | -989.0 | -746.9 | |
| 0.00 | 3.62 | 0.00 | 1.88 | 15.75 | 260.22 | 15.55 | 301.48 | 0.3038 | 283.0 | 141.7 | |
| 4.24 | -32.00 | 2.19 | -32.00 | 13.69 | 259.94 | 15.27 | 295.55 | 0.2848 | 1142.9 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 17.89 | 260.11 | 15.44 | 307.55 | 0.3209 | 861.0 | 622.2 | |
| 2.92 | 71.92 | 1.51 | 37.26 | 16.01 | 259.79 | 15.11 | 302.91 | 0.2998 | 816.1 | 611.2 | |
| 0.80 | 5.21 | 0.41 | 2.71 | 16.56 | 259.77 | 15.09 | 304.51 | 0.3042 | 629.2 | 272.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 14.92 | 259.61 | 14.93 | 299.92 | 0.2886 | 869.0 | 600.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 14.71 | 259.53 | 14.85 | 299.38 | 0.2858 | 862.0 | 737.7 | |
| 7.78 | -42.00 | 4.03 | -42.00 | 15.53 | 259.53 | 14.85 | 301.92 | 0.2922 | 1103.7 | 999999 | |
| 9.54 | 81.91 | 4.92 | 42.11 | 13.93 | 259.32 | 14.64 | 297.18 | 0.2770 | 1085.0 | 575.4 | |
| 6.80 | -42.00 | 3.52 | -42.00 | 15.78 | 259.32 | 14.64 | 303.00 | 0.2914 | 1157.5 | 999999 | |
| 2.92 | 20.06 | 1.52 | 10.42 | 17.64 | 259.31 | 14.63 | 308.29 | 0.3080 | 720.3 | 594.4 | |
| 1.50 | -42.00 | 0.78 | -42.00 | 16.03 | 259.15 | 14.47 | 304.04 | 0.2911 | 847.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 16.97 | 259.19 | 14.51 | 306.68 | 0.3001 | 446.0 | 362.9 | |
| 2.21 | -47.00 | 1.14 | -47.00 | 14.03 | 258.91 | 14.23 | 298.14 | 0.2717 | 1100.5 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 18.66 | 259.23 | 14.55 | 311.05 | 0.3171 | 638.0 | 512.5 | |
| 0.00 | 5.48 | 0.00 | 2.84 | 17.13 | 259.07 | 14.39 | 307.32 | 0.3000 | -432.0 | -224.3 | |
| 18.29 | -47.00 | 9.39 | -47.00 | 13.55 | 258.75 | 14.07 | 296.76 | 0.2659 | 1228.3 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.09 | 14.21 | 258.79 | 14.11 | 298.94 | 0.2713 | 1021.0 | 793.1 | |
| 3.18 | 64.77 | 1.65 | 33.50 | 16.71 | 258.94 | 14.26 | 306.37 | 0.2943 | 798.4 | 790.1 | |
| 2.56 | -49.00 | 1.33 | -49.00 | 17.56 | 258.97 | 14.30 | 308.67 | 0.3029 | 838.1 | 999999 | |
| 3.53 | -57.00 | 1.83 | -57.00 | 16.46 | 258.82 | 14.14 | 305.88 | 0.2905 | 1162.5 | 999999 | |
| 0.00 | 3.71 | 0.00 | 1.92 | 15.83 | 258.71 | 14.03 | 304.20 | 0.2833 | 1183.0 | 946.1 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 18.85 | 258.82 | 14.15 | 312.30 | 0.3141 | 697.0 | 607.1 | |
| 2.47 | 12.90 | 1.29 | 6.71 | 18.19 | 258.57 | 13.89 | 311.09 | 0.3040 | 932.4 | 823.5 | |
| 1.15 | -57.00 | 0.59 | -57.00 | 16.87 | 258.47 | 13.79 | 307.71 | 0.2896 | 904.9 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 13.41 | 258.23 | 13.55 | 297.08 | 0.2572 | 922.0 | 738.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 17.70 | 258.50 | 13.82 | 309.94 | 0.2981 | 790.0 | 679.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 15.36 | 258.16 | 13.49 | 303.73 | 0.2716 | 943.0 | 852.1 | |
| 6.72 | -57.00 | 3.47 | -57.00 | 16.73 | 258.23 | 13.55 | 307.75 | 0.2851 | 1205.5 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 17.43 | 258.28 | 13.60 | 309.62 | 0.2927 | 838.0 | 689.0 | |
| 3.71 | -57.00 | 1.92 | -57.00 | 17.03 | 258.19 | 13.51 | 308.71 | 0.2875 | 1026.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.82 | 15.66 | 258.09 | 13.41 | 304.83 | 0.2733 | 1023.0 | 814.8 | |
| 0.35 | -57.00 | 0.18 | -57.00 | 17.25 | 258.17 | 13.49 | 309.34 | 0.2894 | 880.0 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 16.30 | 258.00 | 13.33 | 306.95 | 0.2781 | 948.0 | 725.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 17.29 | 257.82 | 13.14 | 310.16 | 0.2853 | 678.0 | 584.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 15.66 | 253.00 | 8.32 | 317.74 | 0.2082 | 708.0 | 582.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
