SDO HMI 2014-09-26 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.29 | 372.46 | 60.76 | 208.20 | -11.13 | 264.00 | 19.87 | 226.60 | 0.4616 | 140.1 | 74.5 | |
|
previous
or next observation for the same group /

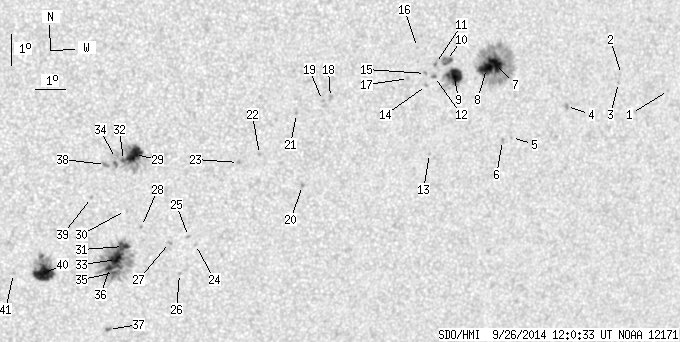

back to the solar disc SDO HMI 2014-09-26 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.64 | 276.97 | 32.84 | 243.56 | 0.5994 | 627.0 | 536.4 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -9.03 | 275.22 | 31.09 | 243.22 | 0.5734 | 496.0 | 542.7 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -9.27 | 275.13 | 31.01 | 242.77 | 0.5739 | 662.0 | 527.5 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -9.91 | 273.36 | 29.23 | 240.32 | 0.5558 | 945.0 | 805.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -10.77 | 271.53 | 27.40 | 237.29 | 0.5395 | 633.0 | 465.4 | |
| 0.00 | 1.94 | 0.00 | 1.14 | -10.85 | 271.23 | 27.10 | 236.87 | 0.5364 | 831.0 | 699.3 | |
| 12.37 | 112.99 | 7.13 | 65.09 | -8.41 | 270.78 | 26.65 | 240.46 | 0.5121 | 1105.4 | 314.1 | |
| 12.72 | -7.00 | 7.31 | -7.00 | -8.55 | 270.49 | 26.36 | 239.94 | 0.5093 | 1185.4 | 999999 | |
| 16.52 | 26.77 | 9.42 | 15.26 | -8.74 | 269.42 | 25.29 | 238.54 | 0.4970 | 1032.9 | 586.8 | |
| 0.00 | 7.95 | 0.00 | 4.51 | -8.23 | 269.11 | 24.98 | 239.13 | 0.4890 | 967.0 | 891.4 | |
| 0.00 | 2.56 | 0.00 | 1.45 | -8.30 | 268.75 | 24.62 | 238.62 | 0.4849 | 987.0 | 812.1 | |
| 0.00 | 2.03 | 0.00 | 1.15 | -8.71 | 268.74 | 24.62 | 237.90 | 0.4880 | 953.0 | 877.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -11.12 | 268.77 | 24.64 | 233.86 | 0.5086 | 647.0 | 579.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -8.97 | 268.50 | 24.37 | 237.16 | 0.4870 | 893.0 | 738.9 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -8.60 | 268.44 | 24.31 | 237.76 | 0.4832 | 932.0 | 818.8 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -7.77 | 268.12 | 23.99 | 238.89 | 0.4724 | 664.0 | 533.0 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -8.72 | 267.88 | 23.75 | 236.92 | 0.4770 | 862.0 | 639.8 | |
| 0.00 | 3.00 | 0.00 | 1.66 | -9.19 | 265.34 | 21.21 | 232.99 | 0.4491 | -656.0 | -591.4 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -9.27 | 265.08 | 20.95 | 232.50 | 0.4467 | -688.0 | -720.1 | |
| 0.00 | 1.59 | 0.00 | 0.89 | -11.93 | 264.61 | 20.48 | 227.35 | 0.4674 | 839.0 | 696.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -9.64 | 264.26 | 20.13 | 230.71 | 0.4402 | -821.0 | -719.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.88 | 263.14 | 19.01 | 226.92 | 0.4397 | -884.0 | -669.6 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -11.11 | 262.47 | 18.34 | 225.52 | 0.4346 | -914.0 | -789.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -13.67 | 261.26 | 17.13 | 219.57 | 0.4511 | -537.0 | -532.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -13.40 | 261.01 | 16.88 | 219.56 | 0.4455 | -661.0 | -569.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -14.59 | 260.81 | 16.68 | 217.54 | 0.4578 | 664.0 | 601.8 | |
| 0.00 | 1.94 | 0.00 | 1.07 | -13.57 | 260.41 | 16.28 | 218.29 | 0.4416 | -973.0 | -737.7 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -13.03 | 259.48 | 15.35 | 217.44 | 0.4259 | -785.0 | -699.8 | |
| 15.11 | 32.42 | 8.14 | 17.47 | -10.73 | 259.12 | 15.00 | 220.38 | 0.3941 | 1121.3 | 534.1 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -12.50 | 258.93 | 14.80 | 217.23 | 0.4141 | -168.0 | -287.0 | |
| 6.45 | 98.68 | 3.53 | 54.18 | -13.65 | 258.94 | 14.81 | 215.58 | 0.4287 | -1096.9 | -429.7 | |
| 0.62 | -29.00 | 0.33 | -29.00 | -10.91 | 258.79 | 14.66 | 219.43 | 0.3928 | 1069.9 | 999999 | |
| 17.14 | -31.00 | 9.41 | -31.00 | -14.06 | 258.74 | 14.61 | 214.65 | 0.4322 | -1129.5 | 999999 | |
| 0.00 | 7.07 | 0.00 | 3.80 | -10.84 | 258.53 | 14.40 | 219.05 | 0.3893 | 946.0 | 677.1 | |
| 1.77 | -31.00 | 0.97 | -31.00 | -14.48 | 258.71 | 14.58 | 214.03 | 0.4373 | -884.5 | 999999 | |
| 4.15 | -31.00 | 2.28 | -31.00 | -14.31 | 258.53 | 14.40 | 213.93 | 0.4336 | -980.6 | 999999 | |
| 0.53 | 2.65 | 0.30 | 1.48 | -16.33 | 258.64 | 14.51 | 211.61 | 0.4608 | -858.8 | -707.1 | |
| 0.00 | 3.71 | 0.00 | 1.99 | -11.02 | 258.22 | 14.09 | 218.16 | 0.3885 | 905.0 | 788.1 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -12.05 | 257.83 | 13.70 | 215.77 | 0.3979 | 812.0 | 601.3 | |
| 21.91 | 42.85 | 11.94 | 23.31 | -14.44 | 256.44 | 12.31 | 209.74 | 0.4179 | -1046.0 | -661.5 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -14.42 | 255.48 | 11.35 | 207.82 | 0.4103 | -811.0 | -602.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
