SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.16 | 0.00 | 12.35 | 8.49 | 282.47 | 38.89 | 274.54 | 0.6169 | 60.4 | -36.8 | |
|
previous
or next observation for the same group /

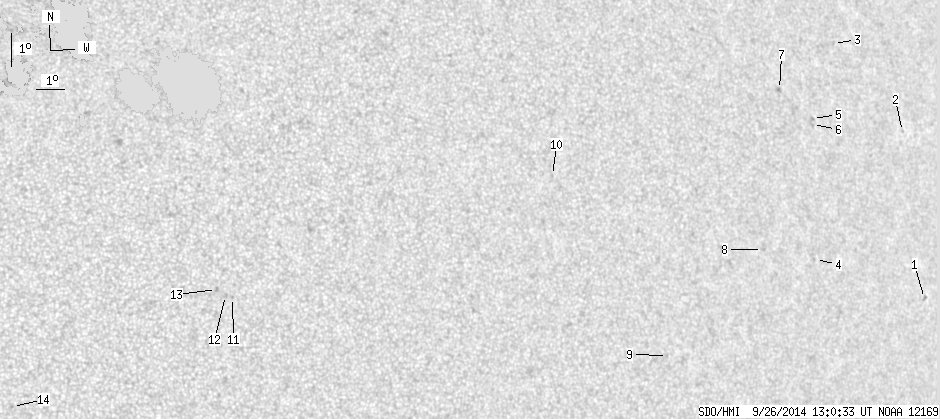

back to the solar disc SDO HMI 2014-09-26 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.03 | 0.00 | 1.54 | 5.16 | 293.10 | 49.52 | 270.87 | 0.7599 | -639.0 | -528.3 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 10.23 | 292.88 | 49.30 | 277.58 | 0.7550 | -462.0 | -449.4 | |
| 0.00 | 1.32 | 0.00 | 0.95 | 13.14 | 290.37 | 46.79 | 281.58 | 0.7269 | -639.0 | -541.7 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 6.75 | 288.41 | 44.83 | 272.62 | 0.7032 | 536.0 | 543.0 | |
| 0.00 | 1.41 | 0.00 | 0.99 | 10.98 | 288.95 | 45.37 | 278.64 | 0.7090 | -700.0 | -618.9 | |
| 0.00 | 1.32 | 0.00 | 0.93 | 10.80 | 288.92 | 45.34 | 278.38 | 0.7085 | -711.0 | -569.2 | |
| 0.00 | 2.21 | 0.00 | 1.51 | 11.96 | 287.72 | 44.14 | 280.10 | 0.6944 | -841.0 | -643.5 | |
| 0.00 | 1.68 | 0.00 | 1.12 | 7.24 | 286.24 | 42.66 | 273.18 | 0.6756 | 128.0 | 241.3 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 4.36 | 282.19 | 38.61 | 268.32 | 0.6247 | 711.0 | 582.8 | |
| 0.00 | 1.24 | 0.00 | 0.74 | 10.07 | 278.37 | 34.79 | 277.74 | 0.5691 | 585.0 | 395.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 7.06 | 266.95 | 23.37 | 271.82 | 0.3955 | 705.0 | 613.6 | |
| 0.00 | 1.77 | 0.00 | 0.95 | 7.13 | 266.72 | 23.14 | 271.99 | 0.3919 | 702.0 | 626.1 | |
| 0.00 | 1.94 | 0.00 | 1.04 | 7.32 | 266.44 | 22.86 | 272.48 | 0.3873 | 731.0 | 620.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 4.08 | 259.77 | 16.19 | 260.90 | 0.2829 | 739.0 | 639.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
